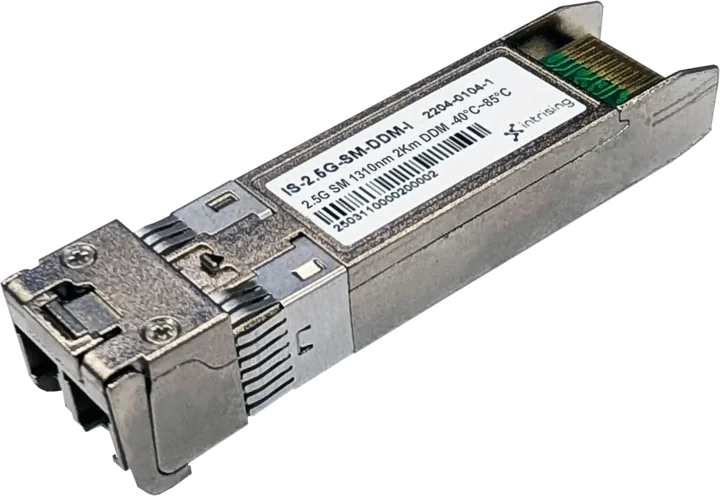

IS-2.5G-SM

Intrising^TM SFP-2.5Gbps

Intrising 2.5G-SM Small Form Factor Pluggable (SFP) transceiver module series is specifically designed for the high performance integrated duplex data link over single-mode or multi-mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot-swap ability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online.

Compare Table

Model
Fiber Type	Single-Mode Fiber	Multi-Mode Fiber
Distance	2km	300m
Wavelength	1310nm	850nm
Temperature	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F
Relative Humidity	5 ~ 95% (non-condensing)	5 ~ 95% (non-condensing)
DDM
Supply Voltage (V)	-0.5 ~ 4.0	-0.5 ~ 4.0
Recommended Power Supply Voltage (V)	3.13 ~ 3.47	3.13 ~ 3.47
Operating Data Rate (Gbps)	2.5	2.5
Hot Pluggable
Optical Interface	Duplex LC Connector	Duplex LC Connector
Sensitivity	-18 dBm	-18 dBm
Ordering Information	IS-2.5G-SM-DDM 0°C ~ 70°C / 32°F ~ 158°F IS-2.5G-SM-DDM-I -40°C ~ 85°C / -40°F ~ 185°F	IS-2.5G-MM-DDM 0°C ~ 70°C / 32°F ~ 158°F IS-2.5G-SM-DDM-I -40°C ~ 85°C / -40°F ~ 185°F
