Accessories SFP-MINI-GBIC
2.5 Gbps

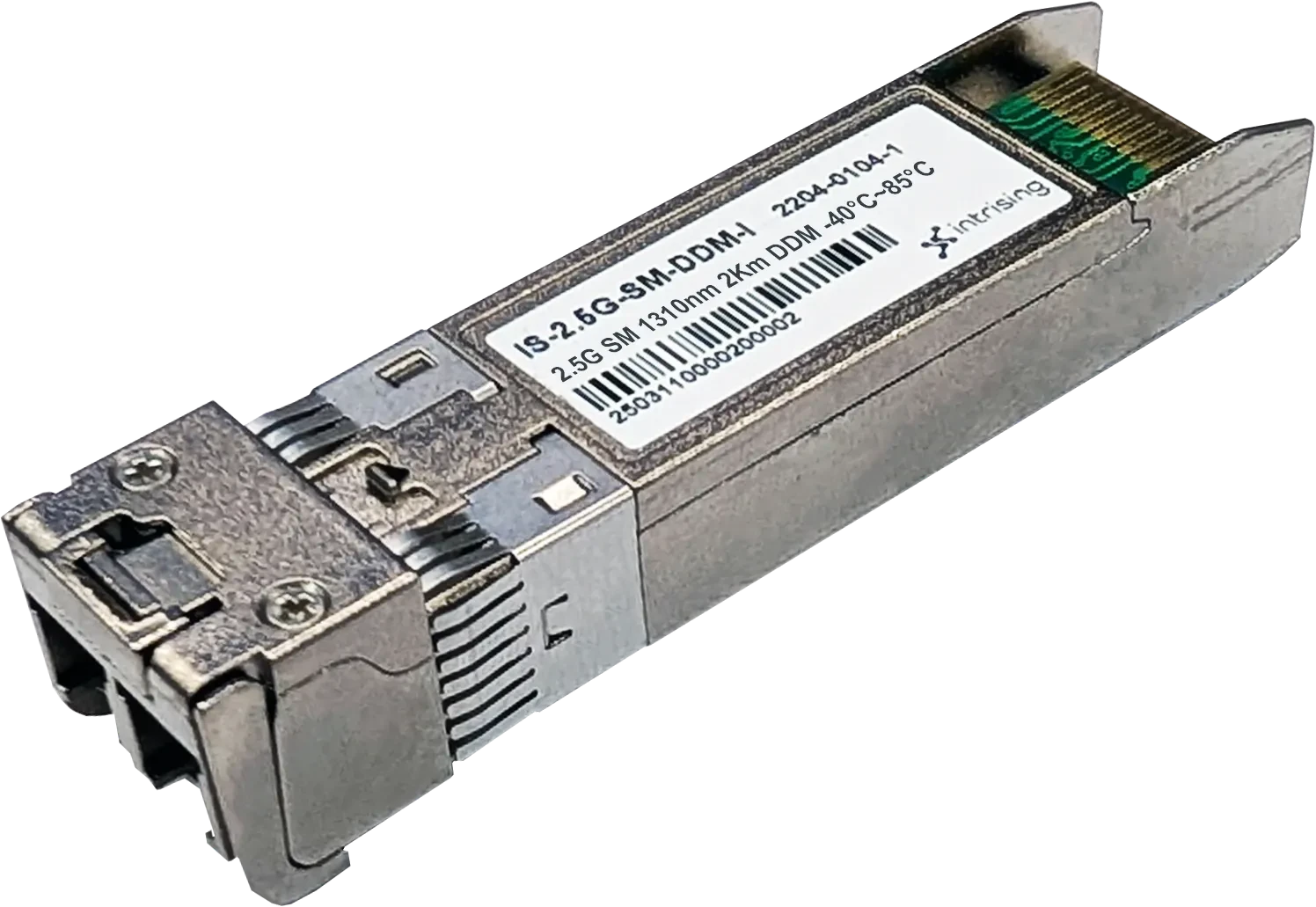

Industrial 2.5G Fiber SFP Optical Transceiver
Summary
Intrising SFP (MINI-GBIC) series provides a Small Form Factor Pluggable transceiver modules.
This series covers 2.5Gbps for the distance from 300m to 2km with long MTBF, which endures the durability.
Product List
Compare Table
| Model |
 |
 |
|---|---|---|
| Fiber Type | Single-Mode Fiber | Multi-Mode Fiber |
| Distance | 2km | 300m |
| Wavelength | 1310nm | 850nm |
| Temperature | Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
| Relative Humidity | 5 ~ 95% (non-condensing) | 5 ~ 95% (non-condensing) |
| DDM | ||
| Supply Voltage (V) | -0.5 ~ 4.0 | -0.5 ~ 4.0 |
| Recommended Power Supply Voltage (V) | 3.13 ~ 3.47 | 3.13 ~ 3.47 |
| Operating Data Rate (Gbps) | 2.5 | 2.5 |
| Hot Pluggable | ||
| Optical Interface | Duplex LC Connector | Duplex LC Connector |
| Sensitivity | -18 dBm | -18 dBm |
| Ordering Information | IS-2.5G-SM-DDM
0°C ~ 70°C / 32°F ~ 158°F IS-2.5G-SM-DDM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-2.5G-MM-DDM
0°C ~ 70°C / 32°F ~ 158°F IS-2.5G-SM-DDM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
