WDG0204G

Industrial PoE+ LTE Wireless Router w/ 2.4G/5G Dual Band 802.11a/b/g/n/ac Wi-Fi + L2+ Switch

  • 4x GE ports L2+ managed (PoE) ethernet switch LAN interface
  • 2x GE ports as WAN interface
  • Optional EMMC Flash storage on-board**
  • Support 2x RS422/RS485 ports or 2x RS232 ports
  • IEEE802.3at/af PoE, up to 30W per port, 250W power budget totally
  • Dual band(2.4G and 5G) 802.11a/b/g/n/ac Wi-Fi with 3x3 SU-MIMO technology with SMA type connectors, up to 3 optional antennas
  • 3G support UMTS/HSPA/HSPA+, 4G supports LTE CAT6 with 300 Mbps downlink, 50 Mbps uplink
  • Global navigation satellite systems support GPS, GLONASS, Galileo and BeiDou
  • Supports VRRP to increase network availability and reliability
  • Firewall supports DoS protection, IP address filter, Mac address filter, source port filter and destination port filter
  • QoS by 802.1p CoS(Class of service) and DiffServ for ingress and egress
  • IGMP snooping v1/v2/v3, IGMP query and MLD** snooping v1/v2 for AV network
  • Enhanced ITU G.8032 ring protection that its recovery time less than 50ms for single ring, which also supports multiple modes, such as auto mode, enhanced mode, multi-VLAN and basic mode
* means optional. Order by request.

IntrisingTM WDG0204G

IntrisingTM WDG0204G is a high performance wireless router build-in L2+ 4x GE ports ethernet switch w/ 4 PoE 802.3af/at per port 30W which provides L2+ wire speed and management functions for network deployment. On the other hand, it delivers ITU G.8032 ring recovery less than 50ms, further less than 20ms** in the enhanced mode. WDG0204G can help to optimize network traffic by comprehensive QoS and load balancing. Security functions provide L2/L3 ingress and egress ACL, port based DHCP server, MAC based DHCP server, and also include option 82/66* for DHCP relay. In order to optimize AV traffic, WDG0204G provides IGMP v1/v2/v3/ and router port support, which are important features required in AV network. The network discovery supports LLDP and CDP (Cisco Discovery Protocol)** that helps scan and show whole network topology. WDG02024G contains dual gigabit WAN port and one LTE module that 4G LTE CAT6 up to 300 Mbps downlink / 50 Mbps uplink and back forward compatible 3G UMTS/HSPA/HSPA+. It also supports four mechanisms for load balancing including fixed, failover, priority and round robin. It can help WAN resource to be fully-used. Additionally, VRRP can increase availability and reliability via automatic choice master default gateway in network topology. If the master is broken, slaves will be woken up and replace the master quickly. Furthermore, WI-FI can work as access point (AP) or station (client) mode with dual-band 2.4G and 5G, which makes it easy and flexible to build up a wireless environment.

Event log and Event Action

WDG0204G has many useful logs for network troubleshooting in case of emergency. Once the device is out of the situation, it will automatically send SMS**, email, SNMP trap or syslog to the manager immediately.

LTE Cat6 backward compatible UMTS/HSPA/HSPA+ and GNSS

Compatible with 3G/4G LTE Cat6 up to 300 Mbps downlink and 50 Mbps uplink. WDG0204G supports lots of LTE band including APAC, EMEC and Worldwide. GNSS supports four types, GPS, GLONASS, Galileo and BeiDou, which can report location by latitude and longitude, and also include speed, height, satellite number and signal.

PoE at/af ports with advanced PoE management

Compatible with 802.3af/at standard, WDG0204G is able to feed each PoE port up to 30 Watt, 250W totally. It also supports advanced PoE management functions, such as PD detection, scheduling and health tracking**. PoE detection can sense some troubleshooting on the connected PD status, such as enabled/disabled, voltage, current, watt and temperature. Moreover, scheduling can operate the arrangement on power pre-set upon routine time table; health tracking can detect whether PD is alive or not. If PD is dead, the system will restart it.

Port/MAC based DHCP server, option 82** DHCP Relay and IPv6 DHCP server**

Port based DHCP server provides the dedicated IP address assignment support, while MAC based DHCP server can allocate dedicated IP address based on the client’s MAC address. Furthermore, DHCP option 82 can be a security feature added its payload by multiple switches forwarding the request to one single DHCP option server.

VRRP

VRRP provides more availability and reliability in the network. VRRP can automatically choose one router as default gateway (master) and let others as standby (slave).

Dual power DC input

It provides dual DC power supplies DC 9V to 56V input to increase the network reliability.

QoS and DiffServ

WDG0204G supports 802.1p CoS (Class of service) QoS and DiServ. It greatly enhances the bandwidth management in a network.

2.4G & 5G Dual Band Wi-Fi

Support for 801.11a/b/g/n/ac Wi-Fi, maximum three antennas with 3x3 MIMO, bandwidth up to 1300 Mbps.

IGMPv1/v2/v3 and Router port

IGMPv1/v2/v3 is an important feature in the AV network. It brings a lot of benefits such as managing multicast traffic, and saving switch bandwidth.

Dual gigabit WAN ports and load balancing with four mechanisms

WDG0204G provides two gigabit ethernet WAN port that can work synchronically. It also supports four algorithms to manage WAN port traffic scheduling, including fixed, failover, priority and round robin that helps to use WAN bandwidth appropriately.

G.8032 ring and MSTP with 8/16** MSTI

ITU G.8032 ring which can be self-healed in less than 50ms for single ring topology protection. It also supports various ring topologies that includes double ring, multi-chain, basic ring and multiple-VLAN ring**. In addition, the device contains MSTP with up to 8 MSTI, which is backward compatible STP and RSTP.

Compare Table

LTE Router Access Point VPN Router
Thumbnail photo of "WDG0204G"
WDG0204G
Thumbnail photo of "WDG0204S"
WDG0204S
Thumbnail photo of "WDG0200-1L-1ac-2S"
WDG0200-1L-1ac-2S
Thumbnail photo of "WDG0200-1L-1ac"
WDG0200-1L-1ac
Thumbnail photo of "WDG0200-1L"
WDG0200-1L
Thumbnail photo of "WDG0200-1ac"
WDG0200-1ac
Thumbnail photo of "WDG0204"
WDG0204
LAN 4 * Giga Copper Port 4 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port 4 * Giga Copper Port
WAN 2 * Giga Copper Port 2 * Giga Fiber Port 2 * Giga Copper Port
Wi-Fi (2.4G/5G) - -
3G/4G - -
GPS - -
PoE - - - -
Modbus - - - -

Hardware

Standards

Ethernet:
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control Capability
ANSI / IEEE 802.3 Auto-negotiation
IEEE 802.1Q VLAN
IEEE 802.1p Class of Service
IEEE 802.1d Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.3 at / af PoE
Wi-Fi:
IEEE 802.11a / n/ac (5GHz)
IEEE 802.11b / g/n (2.4GHz)

MAC Address

4K MAC address table

Jumbo Frame

10KB

Connectors

6x 10 / 100 / 1000T RJ-45 with auto MDI / MDI-X function
1x RS-232 console (RJ45)
2x RS-232 / 485*/422* (Female DB9)
1x USB 2.0 for upload / download config file
2x SIM card slot
6x SMA connector (3 for Wi-Fi female, 3 for LTE female)
1x 5 pin terminal block (DIDO)
1x 6 pin terminal block (Power)

Serial Baud Rate

1000Kbps high data rate, 250Kbps normal for RS232
20Mbps high data rate, 250Kbps normal for RS422 / RS485

DI / DO

2 Digital Input (DI): Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current: 8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA

Relay

1A at 24VDC

Console Port

Baud rate 115200-8N1

Serial Port

RS-232:
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-485:
Data+, Data-, GND
RS-422:
Tx+, Tx-, Rx+, RX-, GND

EMMC Storage

8 / 16 / 32 GB

PoE Budget

80W at 12V / 24V / 48V

PoE pin assignment

RJ-45 port # 1 ~ #24 support IEEE 802.3at / af
Positive (VCC+): RJ45 pin 1,2
Negative (VCC-): RJ45 pin 3,6

Wi-Fi Rate

IEEE802.11b: 1 / 2/5.5 / 11 Mbps
IEEE802.11a / g: 6 / 9/12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n: up to 450Mbps
IEEE802.11ac: up to 1300Mbps

Wi-Fi

Security: WEP64 / 128bits / WPA / WPA PSK (TKIP,AES / WPA2 / WPA2 PSK (TKIP,AES / SSH / SSL / HTTPS

WCDMA Band

Band I:
TX: 1920 ~ 1980 MHz
RX: 2110 ~ 2170 MHz

LTE Band Optional (Default is APAC except Taiwan)

SNMP v1 / v2c / v3, WEB / SSH / Telnet / CLI
Taiwan:

B1 (2100 MHz)B3 (1800 MHz)B7 (2600 MHz)B8 (900 MHz)
B28 (700 MHz)B38 (2600 MHz) TDDB41 (2600 MHz) TDD

APAC*:
B1 (2100 MHz)B3 (1800 MHz)B5 (850 MHz)B7 (2600 MHz)
B8 (900 MHz)B18 (850 MHz)B19 (850 MHz)B21 (1500 MHz)
B28 (700 MHz)B38 (2600 MHz) TDDB39 (1900 MHz) TDDB40 (2300 MHz) TDD
B41 (2500 MHz) TDD

EMEA / America*:
B1 (2100 MHz)B2 (1900 MHz)B3 (1800 MHz)B4 (1700 MHz)
B5 (850 MHz)B7 (2600 MHz)B8 (900 MHz)B12 (700 MHz)
B13 (700 MHz)B20 (800 MHz)B25 (1900 MHz)B26 (8500 MHz)
B29 (700 MHz)B30 (2300 MHz)B41 (2500 MHz) TDD

Global*:
B1 (2100 MHz)B2 (1900 MHz)B3 (1800 MHz)B4 (1700 MHz)
B5 (850 MHz)B7 (2600 MHz)B8 (900 MHz)B9 (1800MHz)
B12 (700 MHz)B13 (700 MHz)B18 (850 MHz)B19 (850 MHz)
B20 (800 MHz)B26 (850 MHz)B28 (700 MHz)B29 (700 MHz)
B30 (2300 MHz)B32 (1500 MHz)B41 (2500 MHz) TDDB42 (3500 MHz) TDD
B43 (3700 MHz) TDDB46 (5200 MHz) TDDB48 (3500 MHz) TDD

GNSS

GPS, Glonass, Beidou, Galileo

Power Supply

Dual input for 9 ~ 56VDC

Power Consumption

30.5W

Installation

DIN Rail and Wall Mount** Design

Warranty

5 years

Software

Management

SNMP v1 v2c, v3 / Web / Telnet / CLI

SNMP MIB

RFC 1157
RFC 1213
RFC 1215 (Trap MIB)
RFC 1493 (Bridge MIB)
RFC 1573
Private MIB
RFC 1158 MIB II*
RFC 2674 VLAN MIB*
Partial RFC 1757 RMON*
RFC 2674 Q-Bridge MIB*
Bridge MIB*
LLDP MIB*

ITU G.8032

Supports ITU G.8032 v2 / 2012 for Ring protection in less than 50ms of self-healed recovery for single ring topology
Provides various ring topologies including double ring, multi-chain, basic ring

PoE Management

PoE detection, scheduling, health checking
Per port status includes on / off, voltage, current, watts and temperature

Port Trunk with LACP

LACP port trunk up to 8 groups

Discovery Protocol

LLDP and CDP (Cisco Discovery Protocol)**

Environmental Monitoring

System input voltage, current, power consumption ambient temperature

VLAN

Port Based VLAN
IEEE 802.1Q Tag VLAN
VLAN ID (VLAN ID can be assigned from 1 to 4094)

IPv6 / 4

Present

SSID

Virtual access point up to 16 SSIDs

WMM

Wi-Fi Multimedia (WMM) 802.11e** traffic prioritization

Spanning Tree

IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree 8 / 16* MSTI

Quality of Service

Determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

IEEE802.1p class of service, per port and provides 8 priority queues

Port Mirror

Ingress, Egress or both direction per port

Login Security

Supports IEEE802.1X Authentication with RADIUS** and TACACS+**

Network Security

HTTPS for secure access to the web interface
SSH for secure shell to command line interface

IGMP

IGMP snooping v1 / v2 / v3; IGMP static route; 1024 multicast groups; IGMP router port; IGMP query; GMRP**

Bandwidth Control

Support for ingress rate limit and egress rate limit / shaping**
In the ingress direction, packet type (Broadcast / Multicast / Flooded Unicast packet) combination rules are allowed.

Flow Control

Flow Control for Full-duplex and Back Pressure for Half-duplex

System Log

System log record to remote server

E-Mail / SMS

Supports SMTP Server or cloud server to send event alert
Maximum 8 email accounts for receiving event alert, which also can send event alert via SMS**

Relay Alarm

Provides one relay output
Alarm Relay current carry ability is 1A @ DC24V

SNMP Trap

SNMP trap v1 / v2c / v3

DHCP

DHCP v4 / v6** Client / Server / Relay that supports additional option 82**
MAC based can assign IP address by specific host
Port based can assign IP address by specific port

DNS

Provide DNS client feature and supports primary and secondary DNS server

SNTP

Supports SNTP to synchronize system clock via Internet

Firewall

Filtering:
MAC address filter
IP address filter
source / destination port filter
TCP / UDP / ICMP filter
URL filter
Security:
DoS protection
Others:
Port forwarding
DMZ

NAT-Routing

Network Address Translation (NAT)
Port Address Translation (PAT)

VRRP

Up to 5 virtual gateway

DDNS

noip.com
changeip.com

Load Balancing

Fixed, Failover, Priority and Round robin

Tunneling

L2 over GRE

VPN

IPSec
OpenVPN
L2TP over IPSec

Firmware Update

Supports HTTP / HTTPs / TFTP firmware upgrade

Configuration import and export

Text configuration file for system quick installation
Supports factory reset button to restore all settings back to factory default
Supports USB storage backup and restores config file

LED Indicators

Power indicator

Power 1 (Green)
Power 2 (Green)

10 / 100 / 1000 / 10G Base indicator

Orange: Link / Act
Green: 1G Speed

SIM

On (Green)

Connection

On (Green)

Wi-Fi

On (Green)

Status

On (Green)

Cellular

On (Green)

GPS

On (Green), Blinking (Green)

Fault

Fault (Red), Blinking (Red)

Storage

On (Green), Blinking (Green)

Serial Port 1 (S1)

On (Green)

Serial Port 2 (S2)

On (Green)

Physical Characteristic

Dimension

Metal case. IP-30, 74mm (W)x144mm (D)x152mm (H)

Enclosure

Grounding Screw

Weight

1 kg

Environmental

Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-40°C ~ 65°C / -40°F ~ 149°F

Storage Temperature

-40°C ~ 85°C / -40°F ~ 185°F

Regulatory approvals

EMC / EMI / EMS

FCC Part 15 Class A*
CE EN55032*
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11*
NCC

**Optional
*Future Release

Dimensions

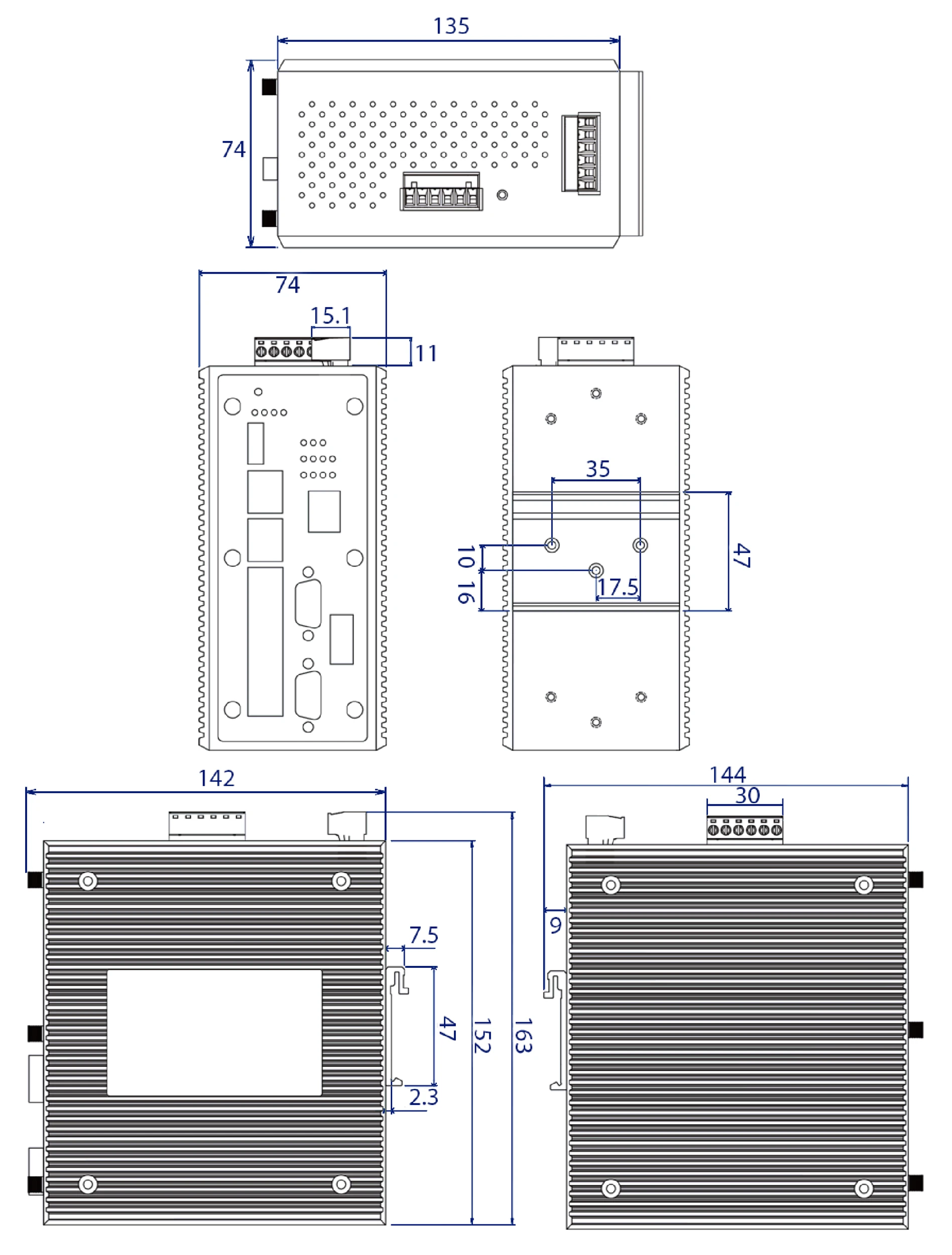

Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
Latest The datasheet of WDG0204G Download

Order Information

Model Name P/N Cellular Serial Ports Description
WDG0204G WDG0204G-RS232 5G 2x RS232
  • PoE & PoE+ (15 ~ 30W)
  • Worldwide (WW) band
  • One Wi-Fi (1ac)
  • (24V) with dual input 9 ~ 56VDC
  • -40°C ~ 65°C / -40°F ~ 149°F
WDG0204G WDG0204G-RS485 2x RS485
WDG0204G WDG0204G-RS422 2x RS422
WDG0204G WDG0204G-LRS232 LTE 2x RS232
  • PoE & PoE+ (15 ~ 30W)
  • Worldwide (WW) band
  • One Wi-Fi (1ac)
  • (24V) with dual input 9 ~ 56VDC
  • -40°C ~ 65°C / -40°F ~ 149°F
WDG0204G WDG0204G-LRS485 2x RS485
WDG0204G WDG0204G-LRS422 2x RS422
