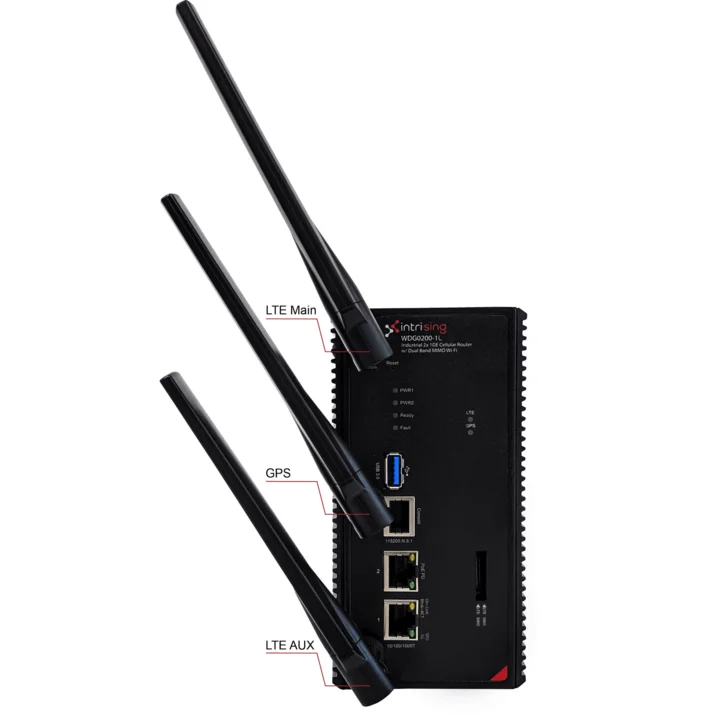

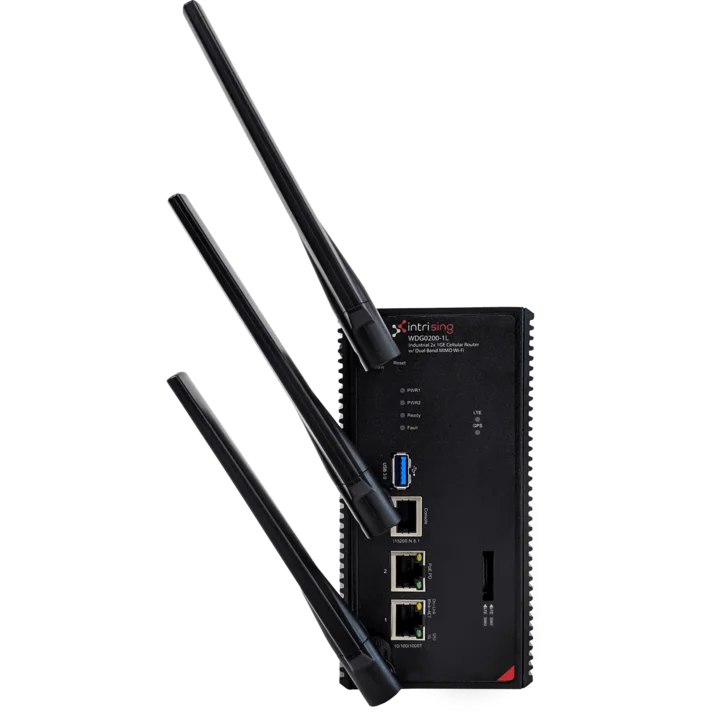

WDG0200-1L
Industrial 2x 1GE Wireless Router w/ 2.4G/5G Dual Band 802.11a/b/g/n/ac Wi-Fi
- 2x GE ports can be configured as LAN or WAN interface
- Dual band(2.4G and 5G) 802.11a/b/g/n/ac WI-Fi with 3x3 MIMO technology with SMA type connectors, up to 3 optional antennas
- Virtual access point up to 16 SSIDs
- Highly Wi-Fi security capability that support WEP 64/WEP 128/WPA personal (TKIP,AES)/WPA2 personal (TKIP,AES)/WPA Enterprise/WPA2 Enterprise
- Wi-Fi Multimedia (WMM) 802.11e traffic prioritization
- Load balancing mechanisms for WAN interface
- Support for IEEE802.1Q VLAN and GVRP
- Support VRRP to increase network availability and reliability
- Firewall support DoS protection, IP address filter
- Mac address filter, source port filter and destination port filter
- Support port forwarding and DMZ to easy deploy service
- Support IPSec/L2TP/OpenVPN for security remote access
- Security features based on IEEE802.1X authentication with RADIUS and TACACS+
- DHCP server/client/relay**, support addition option 66**/82** for network security
- Support IEEE802.1Q VLAN
- RIP v1/v2 and BGP
- Support LLDP and CDP** for network discovery protocols
- WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH and telnet. All of them support external AAA authentication Services with RADIUS** and TACACS+**
- SNMPv1/v2c/v3 for different levels of network management
- Logging event and warning by exception through SMS, e-mail, SNMP trap and relay output automatically
- Software upgrade via TFTP,HTTP/HTTPs also support redundant firmware** to avoid in case of upgrade failure
- Redundant dual DC input power 9V to 56V
IntrisingTM WDG0200-1L
IntrisingTM WDG0200-1L is a high performance wireless router build-in 2x GE ports and one dual-band Wi-Fi module. The wired GE ports can be configured as LAN or WAN port, and support lots of protocol such as PPPoE, DHCP client, static IP. Wi-Fi can be used as access point (AP) or station (client) mode providing a easy and flexible way to build up a wireless environment. Further, Wi-Fi bridge mode is also provided. In the redundancy, VRRP can increase availability and reliability via automatic choice master default gateway in network topology. If the master is broken, slaves will be wake up and replace it quickly. Load balancing is the other feature for multiple WAN redundancy and traffic optimization, that support four mechanism for combination multiple WAN, such as fixed, failover, priority and round robin, It can help to fully used WAN resource. Other functions including port based DHCP server, MAC based DHCP server and option 82** for DHCP relay. The network discovery support LLDP and CDP(Cisco Discovery Protocol) that help scan and show whole network topology. The firewall support DoS protection, IP address filter, Mac address filter, source port filter and destination port filter, also include DMZ and port forwarding for virtual server deployed. In the security sensitive application, WDG0200-1L supports a lot of popular VPN and tunneling technology, such as IPSec, L2TP over IPsec client, OpenVPN client and GRE.
PoE at/af ports with advanced PoE management
Compliant with 802.3af/at standard, the WDG0200-1L is able to feed each PoE port up to 30 Watt, 720W totally. Also supports advanced PoE management functions, such as PD detection, scheduling and health tracking. PoE detection can detect if the connected PD status such as enabled/disabled, voltage, current, watt and temperature; scheduling is to allow pre-set power feeding schedule upon routine time table; health tracking can detect PD is alive or not, if PD is dead, will restart it.
Dual gigabit WAN ports and load balancing with four mechanisms
WDG0200-1L provides two gigabit ethernet WAN port that work concurrent. Also support four algorithm to scheduling WAN port traffic, include fixed, failover, priority and round robin that help to appropriate used WAN bandwidth.
2.4G & 5G Dual Band WI-Fi
Support 801.11a/b/g/n/ac WI-FI, maximum three antenna with 3x3 MIMO, bandwidth up to 1300 Mbps.
VRRP
VRRP let more availability and reliability in the network. VRRP can automatic choice one router as default gateway(master) and let others as standby(slave).
Port/MAC based DHCP server, option 82** DHCP Relay and IPv6 DHCP server**
MAC based DHCP server can assign dedicated IP address by by client’s MAC Address. Option 82 can assign IP address by port for multiple switches with single DHCP option 82 server.
Event log and Event Action
WDG0200-1L has many useful log for network trouble shutting. Once out of the situation sending SMS**, e-mail, SNMP trap or syslog to the manager immediately.
Dual power DC input
WDG0200-1L supports dual DC power supplies DC 9V to 56V input to increase the network reliability.
Compare Table
| LTE Router | Access Point | VPN Router | |||||
|---|---|---|---|---|---|---|---|
 |
 |
 |
 |
|
 |
 |
|
| LAN | 4 * Giga Copper Port | 4 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | Shared 2 * Giga Copper Port | 4 * Giga Copper Port |
| WAN | 2 * Giga Copper Port | 2 * Giga Fiber Port | 2 * Giga Copper Port | ||||
| Wi-Fi (2.4G/5G) | - | - | |||||
| 3G/4G | - | - | |||||
| GPS | - | - | |||||
| PoE | - | - | - | - | |||
| Modbus | - | - | - | - | |||
Dimensions
