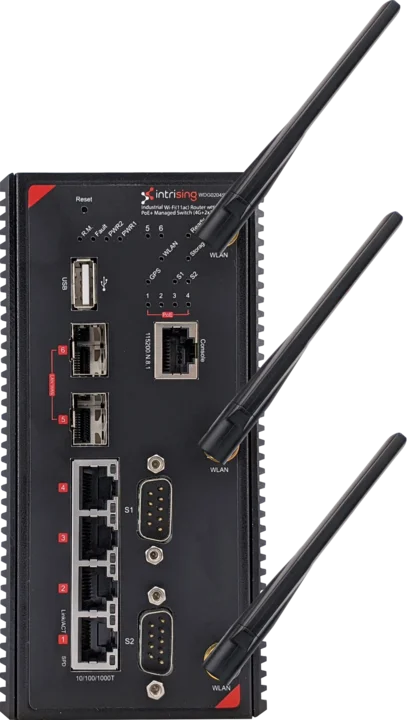

Photo of the product WDG0204S-1ac


Industrial Wi-Fi(11ac) Router w/ L2+ PoE+ Managed Switch (4G+2x1G SFP)

  • 4x GE ports L2+ managed (PoE) ethernet switch LAN interface
  • 2x GE SFP ports as WAN interface
  • IEEE802.3at/af PoE, up to 30W per port, 250W power budget totally
  • Dual band(2.4G and 5G) 802.11a/b/g/n/ac WI-Fi with 3x3 SU-MIMO technology with SMA type connectors, up to 3 optional antennas
  • Virtual access point up to 16 SSIDs
  • Highly Wi-Fi security capability that support WEP 64/WEP 128/WPA personal (TKIP,AES)/WPA2 personal (TKIP,AES)/WPA Enterprise/WPA2 Enterprise
  • Wi-Fi Multimedia (WMM) 802.11e** traffic prioritization
  • Global navigation satellite systems support GPS, GLONASS, Galileo and BeiDou
  • Load balancing mechanisms for WAN interface
  • Support VRRP to increase network availability and reliability
  • Firewall support DoS protection, IP address filter, Mac address filter, source port filter and destination port filter
  • Support port forwarding and DMZ to easy deploy service
  • Support IPSec/L2TP/OpenVPN for security remote access
  • DHCP server/client/relay**, support addition option 66**/82** for network security
  • Support IEEE802.1Q VLAN, port based VLAN and GVRP**
  • QoS bandwidth control by 802.1p CoS(Class of service) and DiffServ for ingress and egress
  • IGMP snooping v1/v2/v3, IGMP query and MLD** snooping v1/v2 for AV network
  • Support LLDP and CDP** for network discovery protocols
  • Enhanced ITU G.8032 ring protection. Recovery time less than 50ms for single ring. Also supports multiple modes, such as auto mode, enhanced mode, multi-VLAN and basic mode
  • MSTP up to 16** instances and backward compatible STP and RSTP
  • WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH and telnet
  • SNMPv1/v2c/v3 for different levels of network management
  • Access control lists (ACL) support L2 and L3 packet filtering increasing the flexibility and security of network management
  • Software upgrade via TFTP,HTTP/HTTPs also support redundant firmware** to avoid in case of upgrade failure
* means optional. Order by request.

IntrisingTM WDG0204S-1ac

IntrisingTM WDG0204S-1ac is a high performance wireless router build-in L2+ 4x GE ports ethernet switch w/ 4 PoE 802.3af/at per port 30W which provides L2+ wire speed and management functions for network deployment. In the redundancy, It delivers ITU G.8032 ring recovery less than 50ms, further less than 20ms** in the enhance mode. It can help optimization network traffic by comprehensive QoS and load balancing. Security functions including L2/L3 ingress and egress ACL, port based DHCP server, MAC based DHCP server, also include option 82/66* for DHCP relay. In order optimization AV traffic, it provide IGMP v1/v2/v3/ and router port support, which are important features required in AV network. The network discovery support LLDP and CDP(Cisco Discovery Protocol)** that help scan and show whole network topology. That support four mechanism for load balancing include fixed, failover, priority and round robin. It can help to fully used WAN resource. VRRP can increase availability and reliability via automatic choice master default gateway in network topology. If the master is broken, slaves will be wake up and replace it quickly. WI-FI can work as access point (AP) or station (client) mode, both support dual-band 2.4G and 5G, providing a way to easy and flexible to build up a wireless environment.

Dual gigabit WAN ports and load balancing with four mechanisms

WDG0204S-1ac provides two gigabit ethernet WAN port that work concurrent. Also support four algorithm to scheduling WAN port traffic, include fixed, failover, priority and round robin that help to appropriate used WAN bandwidth.

2.4G & 5G Dual Band WI-Fi

Support 801.11a/b/g/n/ac WI-FI, maximum three antenna with 3x3 MIMO, bandwidth up to 1300 Mbps.


VRRP let more availability and reliability in the network. VRRP can automatic choice one router as default gateway(master) and let others as standby(slave).

PoE at/af ports with advanced PoE management

Compliant with 802.3af/at standard, the WDG0204S-1ac is able to feed each PoE port up to 30 Watt, 250W totally. Also supports advanced PoE management functions, such as PD detection, scheduling and health tracking**. PoE detection can detect if the connected PD status such as enabled/disabled, voltage, current, watt and temperature; scheduling is to allow pre-set power feeding schedule upon routine time table; health tracking can detect PD is alive or not, if PD is dead, will restart it.

QoS and DiffServ

WDG0204S-1ac supports 802.1p CoS(Class of service) QoS and DiffServ that greatly enhance the bandwidth management in a network.

IGMPv1/v3/v3 and Router port

IGMPv1/v2/v3 is an important feature in the AV network. It bring a lot of benefit such as management multicast traffic, save switch bandwidth.

G.8032 ring and 8/16* MSTI MSTP

ITU G.8032 ring which can be self-healed in less than 50ms for single ring topology protection. It also supports various ring topologies that include double ring, multi-chain, basic ring and multiple-VLAN ring**. It supports MSTP with up to 8 MSTI that allows each spanning tree for each VLAN for redundant links and backward compatible STP and RSTP.

Port/MAC based DHCP server, option 82** DHCP Relay and IPv6 DHCP server**

MAC based DHCP server can assign dedicated IP address by by client’s MAC Address. Option 82 can assign IP address by port for multiple switches with single DHCP option 82 server.

Event log and Event Action

WDG0204S-1ac has many useful log for network trouble shutting. Once out of the situation sending SMS**, e-mail, SNMP trap or syslog to the manager immediately.

Dual power DC input

WDG0204S-1ac supports dual DC power supplies DC 9V to 56V input to increase the network reliability.

Compare Table

LTE Router Access Point VPN Router
Thumbnail photo of "WDG0204G"
Thumbnail photo of "WDG0204S"
Thumbnail photo of "WDG0200-1L-1ac-2S"
Thumbnail photo of "WDG0200-1L-1ac"
Thumbnail photo of "WDG0200-1L"
Thumbnail photo of "WDG0200-1ac"
Thumbnail photo of "WDG0204"
LAN 4 * Giga Copper Port 4 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port 4 * Giga Copper Port
WAN 2 * Giga Copper Port 2 * Giga Fiber Port 2 * Giga Copper Port
Wi-Fi (2.4G/5G) - -
3G/4G - -
GPS - -
PoE - - - -
Modbus - - - -



IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control Capability
ANSI / IEEE 802.3 Auto-negotiation
IEEE 802.1p Class of Service
IEEE 802.1d Spanning Tree
IEEE 802.1w Rapid Spanning Tree
IEEE 802.1s Multiple Spanning Tree
IEEE 802.3ad Link Aggregation Control Protocol (LACP)
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.3 at / af PoE
IEEE 802.11a / n/ac (5GHz)
IEEE 802.11b / g/n (2.4GHz)

MAC Address Table Size

4K MAC address table


6x 10 / 100 / 1000T RJ-45 with auto MDI / MDI-X function
1x RS-232 console (RJ45)
2x RS-232 / 485*/422* (Female DB9)
1x USB 2.0 for upload / download config file
3x SMA connected (3 for WI-Fi male)
1x 5 pin terminal block (DIDO)
1x 6 pin terminal block (Power)


2 Digital Input (DI) : Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current:8mA
2 Digital Output (DO): Open collector to 40 VDC, 200mA


Output to carry capacity of 1A at 24VDC

Console Port

Baud rate 115200-8N1

Serial Port

Data+, Data-, GND
Tx+, Tx-, Rx+, RX-, GND

PoE Budget

80W at 12V / 24V / 48V

PoE pin assignment

RJ-45 port # 1 ~ #24 support IEEE 802.3at / af
Positive (VCC+): RJ45 pin 1,2
Negative (VCC-): RJ45 pin 3,6


IEEE802.11b : 1 / 2/5.5 / 11 Mbps
IEEE802.11a / g : 6 / 9/12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n : up to 450Mbps
IEEE802.11ac : up to 1300Mbps


GPS, Glonass, Beidou, Galileo

Power Supply

Dual input for 12V ~ 48VDC

Power Consumption



DIN Rail and Wall Mount Design


5 years



SNMP v1 / v2c / v3, Web (Http / Https), CLI (Telnet / SSH)


RFC 1157
RFC 1213
RFC 1215 (Trap MIB)
RFC 1493 (Bridge MIB)
RFC 1573
Private MIB
RFC 1158 MIB II*
Partial RFC 1757 RMON*
RFC 2674 Q-Bridge MIB*
Bridge MIB*

ITU G.8032

Support ITU G.8032 v2 / 2012 for Ring protection in less than 50ms for self-healed recovery for single ring topology. Supports various ring topologies that include double ring, multi-chain, basic ring.

PoE Management

PoE detection, scheduling, health checking. Per port status include on / off, voltage, current, watts and temperature

Port Trunk with LACP

LACP port trunk up to 8 groups

Discovery Protocol

LLDP and CDP (Cisco Discovery Protocol)**

Environmental Monitoring

System input voltage, current, power consumption ambient temperature


Port Based VLAN
IEEE 802.1Q Tag VLAN
VLAN ID (VLAN ID can be assigned from 1 to 4094)

IPv6 / 4



Virtual access point up to 16 SSIDs


Wi-Fi Multimedia (WMM) 802.11e** traffic prioritization

Spanning Tree

IEEE802.1d Spanning Tree
IEEE802.1w Rapid Spanning Tree
IEEE802.1s Multiple Spanning Tree 8 / 16* MSTI

Quality of Service

Determined by port, Tag and IPv4 Type of service, IPv4 Differentiated Services Code Points - DSCP

Class of Service

IEEE802.1p class of service, per port and provides 8 priority queues

Port Mirror

Ingress, Egress or both direction per port

Login Security

Supports IEEE802.1X Authentication with RADIUS** and TACACS+**

Network Security

HTTPS for secure access to the web interface
SSH for secure shell to command line interface


Support IGMP snooping v1 / v2 / v3; Supports IGMP static route; 1024 multicast groups; IGMP router port ; IGMP query; GMRP**

Bandwidth Control

Support ingress rate limit and egress rate limit / shaping**.
In the ingress direction, packet type (Broadcast / Multicast / Flooded Unicast packet) combination rules are allowed.

Flow Control

Supports Flow Control for Full-duplex and Back Pressure for Half-duplex

System Log

Supports System log record to remote server

E-Mail / SMS

Supports SMTP Server or cloud server to send event alert. Maximum 8 e-mail accounts for receiving event alert.
Also can send event alert via SMS**.

Relay Alarm

Provides one relay output.
Alarm Relay current carry ability is 1A @ DC24V


SNMP trap v1 / v2c / v3


Provide DHCP v4 / v6** Client / Server / Relay that support addition option 82**
MAC based can assign IP address by specific host
Port based can assign IP address by specific port


Provide DNS client feature and support primary and secondary DNS server


Supports SNTP to synchronize system clock via Internet


Filtering :
MAC address filter
IP address filter
source / destination port filter
TCP / UDP / ICMP filter
URL filter
Security :
DoS protection
Others :
Port forwarding


Up to 5 virtual gateway


Load Balancing

Fixed, Failover, Priority and Round robin


L2 over GRE


L2TP over IPSec

Firmware Update

Supports HTTP / HTTPs / TFTP firmware upgrade

Configuration import and export

Supports text configuration file for system quick installation.
Support factory reset button to restore all settings back to factory default.
Support USB storage backup and restore config file.

LED Indicators

Power indicator

Power 1 (Green)
Power 2 (Green)

10 / 100 / 1000 Base-T indicator

Orange: Link / Act
Green : 1G Speed


On (Green), Blinking (Green)


On (Green), Blinking (Green)


Fault (Red), Blinking (Red)

Physical Characteristic


Metal case. IP-30, 74mm (W)x144mm (D)x152mm (H)


1 kg


Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C ~ 70°C / -4°F ~ 158°F

Storage Temperature

-40°C ~ 85°C / -40°F ~ 185°F

Regulatory approvals


FCC Part 15 Class A*
CE EN55032*
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11*

* means optional. Order by request.


Dimensions diagrams of this device.


Type Version Description Download
Latest The datasheet of WDG0204S-1ac Download
