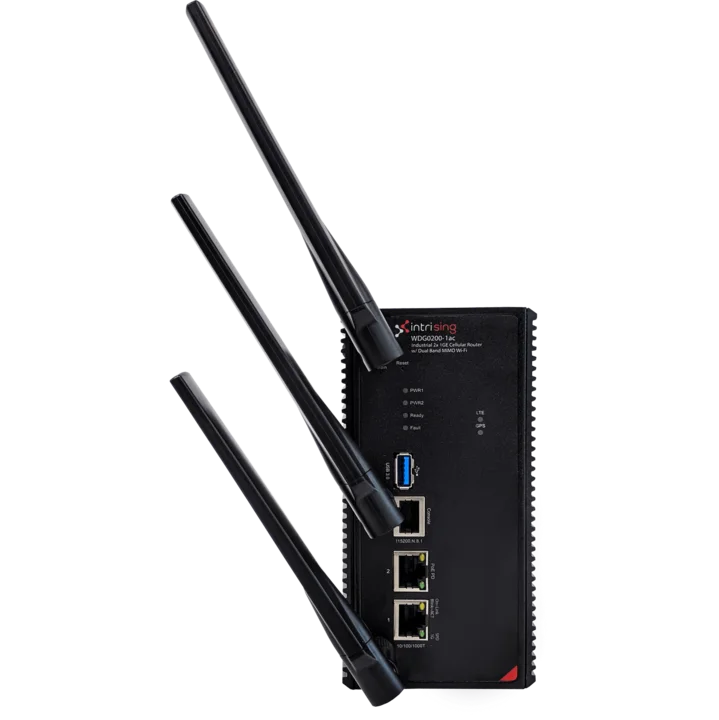

Photo of the product WDG0200-1ac

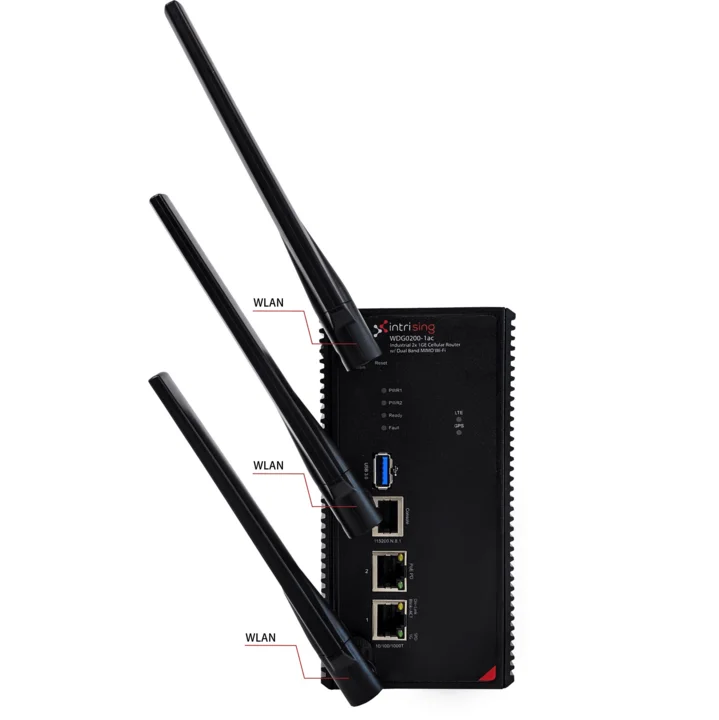

Photo of the product WDG0200-1ac


Industrial 2x 1GE Wireless Router w/ 2.4G/5G Dual Band 802.11a/b/g/n/ac Wi-Fi

  • 2x GE ports can be config as LAN or WAN interface
  • Dual band(2.4G and 5G) 802.11a/b/g/n/ac WI-Fi with 3x3 MIMO technology with SMA type connectors, up to 3 optional antennas
  • Virtual access point up to 16 SSIDs
  • Highly Wi-Fi security capability that support WEP 64/WEP 128/WPA personal (TKIP,AES)/WPA2 personal (TKIP,AES)/WPA Enterprise/WPA2 Enterprise
  • Wi-Fi Multimedia (WMM) 802.11e traffic prioritization
  • Load balancing mechanisms for WAN interface
  • Support VRRP to increase network availability and reliability
  • Firewall support DoS protection, IP address filter,
  • Mac address filter, source port filter and destination port filter
  • Support port forwarding and DMZ to easy deploy service
  • Support IPSec/L2TP/OpenVPN for security remote access
  • DHCP server/client/relay**, support addition option 66**/82** for network security
  • Support IEEE802.1Q VLAN
  • RIP v1/v2 and BGP
  • Support LLDP and CDP** for network discovery protocols
  • WEB based management UI via HTTP/HTTPs. Also provide CLI, SSH and telnet. All of then support external AAA authentication Services with RADIUS** and TACACS+**
  • SNMPv1/v2c/v3 for different levels of network management
  • Logging event and warning by exception through SMS, e-mail, SNMP trap and relay output automatic
  • Software upgrade via TFTP,HTTP/HTTPs also support redundant firmware** to avoid in case of upgrade failure
  • Redundant dual DC input power 9V to 56V
* means optional. Order by request.

IntrisingTM WDG0200-1ac

IntrisingTM WDG0200-1ac is a high performance wireless router build-in 2x GE ports and one dual-band Wi-Fi module. The wired GE ports can be configured as LAN or WAN port, and support lots of protocol such as PPPoE, DHCP client, static IP. Wi-Fi can be used as access point (AP) or station (client) mode providing a easy and flexible way to build up a wireless environment. Further, Wi-Fi bridge mode is also provided. In the redundancy, VRRP can increase availability and reliability via automatic choice master default gateway in network topology. If the master is broken, slaves will be wake up and replace it quickly. Load balancing is the other feature for multiple WAN redundancy and traffic optimization, that support four mechanism for combination multiple WAN, such as fixed, failover, priority and round robin, It can help to fully used WAN resource. Other functions including port based DHCP server, MAC based DHCP server and option 82** for DHCP relay. The network discovery support LLDP and CDP(Cisco Discovery Protocol) that help scan and show whole network topology. The firewall support DoS protection, IP address filter, Mac address filter, source port filter and destination port filter, also include DMZ and port forwarding for virtual server deployed. In the security sensitive application, WDG0200-1ac supports a lot of popular VPN and tunneling technology, such as IPSec, L2TP over IPsec client, OpenVPN client and GRE.

PoE at/af ports with advanced PoE management

Compliant with 802.3af/at standard, the WDG0200-1ac is able to feed each PoE port up to 30 Watt, 720W totally. Also supports advanced PoE management functions, such as PD detection, scheduling and health tracking. PoE detection can detect if the connected PD status such as enabled/disabled, voltage, current, watt and temperature; scheduling is to allow pre-set power feeding schedule upon routine time table; health tracking can detect PD is alive or not, if PD is dead, will restart it.

Dual gigabit WAN ports and load balancing with four mechanisms

WDG0200-1ac provides two gigabit ethernet WAN port that work concurrent. Also support four algorithm to scheduling WAN port traffic, include fixed, failover, priority and round robin that help to appropriate used WAN bandwidth.

2.4G & 5G Dual Band WI-Fi

Support 801.11a/b/g/n/ac WI-FI, maximum three antenna with 3x3 MIMO, bandwidth up to 1300 Mbps.


VRRP let more availability and reliability in the network. VRRP can automatic choice one router as default gateway(master) and let others as standby(slave).

Port/MAC based DHCP server, option 82** DHCP Relay and IPv6 DHCP server**

MAC based DHCP server can assign dedicated IP address by by client’s MAC Address. Option 82 can assign IP address by port for multiple switches with single DHCP option 82 server.

Event log and Event Action

WDG0200-1ac has many useful log for network trouble shutting. Once out of the situation sending SMS**, e-mail, SNMP trap or syslog to the manager immediately.

Dual power DC input

WDG0200-1ac supports dual DC power supplies DC 9V to 56V input to increase the network reliability.

Compare Table

LTE Router Access Point VPN Router
Thumbnail photo of "WDG0204G"
Thumbnail photo of "WDG0204S"
Thumbnail photo of "WDG0200-1L-1ac-2S"
Thumbnail photo of "WDG0200-1L-1ac"
Thumbnail photo of "WDG0200-1L"
Thumbnail photo of "WDG0200-1ac"
Thumbnail photo of "WDG0204"
LAN 4 * Giga Copper Port 4 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port Shared 2 * Giga Copper Port 4 * Giga Copper Port
WAN 2 * Giga Copper Port 2 * Giga Fiber Port 2 * Giga Copper Port
Wi-Fi (2.4G/5G) - -
3G/4G - -
GPS - -
PoE - - - -
Modbus - - - -



IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Ethernet
IEEE 802.3x Flow Control Capability
ANSI / IEEE 802.3 Auto-negotiation
IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
IEEE 802.11a / n/ac (5GHz)
IEEE 802.11b / g/n (2.4GHz)


2x 10 / 100 / 1000T RJ45 with auto MDI / MDI-X function
1x RS-232 console (RJ45)
1x USB 3.0 (Only) for upload / download config file
3x SMA connector (for Wi-Fi male)
1x 6 pin terminal block (Power)

Console Port

Baud rate 115200-8N1


IEEE802.11b : 1 / 2/5.5 / 11 Mbps
IEEE802.11a / g : 6 / 9/12 / 18 / 24 / 36 / 48 / 54 Mbps
IEEE802.11n : up to 450 Mbps
IEEE802.11ac : up to 1300 Mbps

WLAN Power (2.4G)

Output Power TX +/- 2dB (per chain)
18dBm @ 1 ~ 11Mbps
18dBm @ 6 ~ 54Mbps
20dBm @ MCS0 ~ MCS7 (HT20 / HT40)
Receiver Sensitivity RX +/- 2dB (per chain)
≦-95dBm @ 1 ~ 11Mbps
≦-92dBm @ 6 ~ 18Mbps
≦-88dBm @ 24Mbps
≦-85dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-94dBm @ MCS0 (HT20 / HT40)
≦-76dBm @ MCS7 (HT20 / HT40)

WLAN Power (5G)

Output Power TX +/- 2dB (per chain)
20dBm @ 6 ~ 24Mbps
16dBm @ 36 ~ 54Mbps
19 / 18dBm @ MCS0 (HT20 / HT40)
16dBm @ MCS7 (HT20 / HT40)
18dBm @ MCS0 (VHT20 / VHT40 / VHT80)
13dBm @ MCS8 (VHT20 / VHT40 / VHT80)
13dBm @ MCS9 (VHT40 / VHT80)
Receiver Sensitivity RX +/- 2dB
≦-92dBm @ 6 ~ 18Mbps
≦-86dBm @ 24Mbps
≦-84dBm @ 36Mbps
≦-81dBm @ 48Mbps
≦-80dBm @ 54Mbps
≦-93dBm @ MCS0 (HT20 / 40)
≦-71dBm/≦-80dBm @ MCS7 (HT20 / HT40)
≦-90dBm @ MCS0 (VHT20 / VHT40 / VHT80)
≦-69dBm @ MCS8 (VHT20 / VHT40 / VHT80)
≦-66dBm @ MCS9 (VHT40 / VHT80)

Power Supply

Dual input for 9V ~ 56VDC

Power Consumption



DIN Rail and Wall Mount Design


5 years



SNMP v1 / v2c / v3, Web (Http / Https), CLI (Telnet / SSH)


RFC 1157
RFC 1213
RFC 1215 (Trap MIB)
RFC 1493 (Bridge MIB)
RFC 1573
Private MIB
RFC 1158 MIB II*
Partial RFC 1757 RMON*
RFC 2674 Q-Bridge MIB*
Bridge MIB*

Discovery Protocol

LLDP and CDP (Cisco Discovery Protocol)**


Port Based VLAN
IEEE 802.1Q Tag VLAN
VLAN ID (VLAN ID can be assigned from 1 to 4094)

IPv6 / 4



Virtual access point up to 16 SSIDs


Wi-Fi Multimedia (WMM) 802.11e** traffic prioritization

Login Security

Supports IEEE802.1X Authentication with RADIUS** and TACACS+**

Network Security

HTTPS for secure access to the web interface
SSH for secure shell to command line interface

System Log

Supports System log record to remote server

E-Mail / SMS

Supports SMTP Server or cloud server to send event alert. Maximum 8 e-mail accounts for receiving event alert.
Also can send event alert via SMS**.


SNMP trap v1 / v2c / v3


Provide DHCP v4 / v6** Client / Server / Relay that support addition option 82**
MAC based can assign IP address by specific host
Port based can assign IP address by specific port


Provide DNS client feature and support primary and secondary DNS server


Supports SNTP to synchronize system clock via Internet



  • MAC address filter
  • IP address filter
  • source / destination port filter
  • TCP / UDP / ICMP filter
  • URL filter
  • DoS protection
Others :
  • Port forwarding
  • DMZ


Up to 5 virtual gateway


Load Balancing

Fixed, Failover, Priority and Round robin


L2 over GRE

VPN Client

L2TP over IPSec

Firmware Update

Supports HTTP / HTTPs / TFTP firmware upgrade

Configuration import and export

Supports text configuration file for system quick installation.
Support factory reset button to restore all settings back to factory default.
Support USB storage backup and restore config file.

LED Indicators

Power indicator

Power 1 (Green)
Power 2 (Green)

10 / 100 / 1000 Base-T indicator

Orange: Link / Act
Green : 1G Speed


On (Green), Blinking (Green)


Fault (Red), Blinking (Red)

Physical Characteristic


830589 hours


Metal case. IP 30, 74mm (W) x 114mm (D) x 152mm (H)


900 g


Operating Humidity

5% ~ 95% (Non-condensing)

Operating Temperature

-20°C ~ 70°C / -4°F ~ 158°F

Storage Temperature

-40°C ~ 85°C / -40°F ~ 185°F

Regulatory approvals


FCC Part 15 Class A*
CE EN55032*
CE EN61000-4-2 (ESD)
CE EN61000-4-3 (RS)
CE EN61000-4-4 (EFT)
CE EN61000-4-5 (Surge)
CE EN61000-4-6 (CS)
CE EN61000-4-8
CE EN61000-4-11*

*Future Release


Dimensions diagrams of this device.
