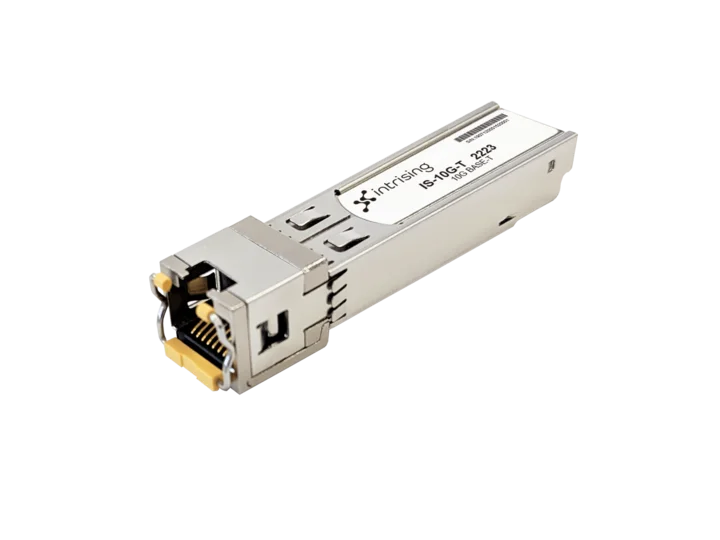

IS-10G-T
10G Copper SFP+ Transceiver, 30-100m
- Distance: 30-100m
- Standard Operating Temperature: 0°C~70°C
- 1G/2.5G/5G/10G Base-T Application
* means optional. Order by request.
IntrisingTM SFP+10Gbps-Copper-30-100m
Intrising SFP-10GB-T Small Form Factor Pluggable SFP+ Copper transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. The high performance designed is integrated full duplex data link at 10Gbps over four pair Category 6a/7 cable up to 30m links. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over copper cable.
Compare Table
| Model |
|
 |
 |
 |
|---|---|---|---|---|
| Fiber Type | Copper to Fiber Transceiver | Single-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber |
| Media Type | 10G : CAT6A/CAT7 5G : CAT6 or Better 2.5G : CAT5E or Better 1G : CAT5E or Better 100M : CAT5E or Better |
- | - | - |
| Distance | 30-100m | 10km | 300m | 10km |
| Wavelength | - | 1310nm | 850nm |
RX: 1270nm/1330nm
TX: 1330nm/1270nm
|
| Temperature | Standard
-10°C ~ 70°C / 14°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
| Relative Humidity | - | 5 ~ 95% (non-condensing) | 5 ~ 95% (non-condensing) | - |
| DDM | ||||
| Supply Voltage (V) | -0.5 ~ 4.0 | -0.5 ~ 4.0 | -0.5 ~ 4.0 | -0.5 ~ 4.0 |
| Recommended Power Supply Voltage (V) | 3.15 ~ 3.45 | 3.13 ~ 3.47 | 3.13 ~ 3.47 | 3.13 ~ 3.47 |
| Operating Data Rate (Gbps) | - | 8.5 ~ 11.32 | 8.5 ~ 11.32 | 8.5 ~ 11.32 |
| Hot Pluggable | ||||
| Optical Interface | RJ45 | Duplex LC Connector | Duplex LC Connector | LC Connector |
| Sensitivity | - | -14.5 dBm | -10 dBm | -14 dBm |
| Ordering Information | IS-10G-T
-10°C ~ 70°C / 14°F ~ 158°F IS-10G-T-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-10G-SM
0°C ~ 70°C / 32°F ~ 158°F IS-10G-SM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-10G-MM
0°C ~ 70°C / 32°F ~ 158°F IS-10G-MM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-10G-BIDI-1270
Tx=1270nm, Rx=1310nm, 0°C ~ 70°C / 32°F ~ 158°F IS-10G-BIDI-1270-I
Tx=1270nm, Rx=1310nm, -40°C ~ 85°C / -40°F ~ 185°F IS-10G-BIDI-1310
Tx=1310nm, Rx=1270nm, 0°C ~ 70°C / 32°F ~ 158°F IS-10G-BIDI-1310-I
Tx=1310nm, Rx=1270nm, -40°C ~ 85°C / -40°F ~ 185°F
|
