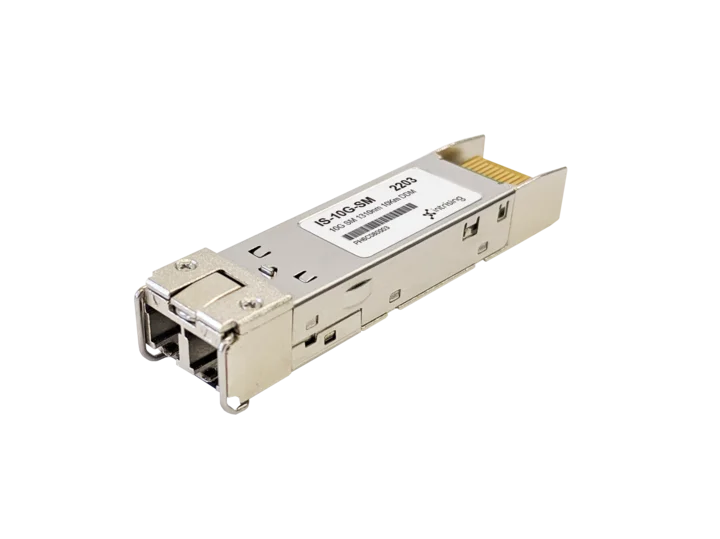

IS-10G-SM

Intrising^TM SFP+10Gbps-10KM

Intrising^TM 10G SFP + SR T Small Form Factor Pluggable SFP+ transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. The high performance uncooled 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for 10GBase-SR Ethernet applications up to 300m optical links.

Compare Table

Model
Fiber Type	Copper to Fiber Transceiver	Single-Mode Fiber	Multi-Mode Fiber	Single-Mode Fiber
Media Type	10G : CAT6A/CAT7 5G : CAT6 or Better 2.5G : CAT5E or Better 1G : CAT5E or Better 100M : CAT5E or Better	-	-	-
Distance	10G: 30m 5G: 50m 2.5G: 100m 1G: 100m 100M: 100m	10km	300m	10km
Wavelength	-	1310nm DFB-LD	850nm VCSEL	RX 1270nm/1330nm TX 1330nm/1270nm
Temperature	Standard -10°C ~ 70°C / 14°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F
Relative Humidity	-	0 ~ 85% (non-condensing)	0 ~ 85% (non-condensing)	-
DDM
Supply Voltage (V)	-0.5 ~ 4.0	-0.5 ~ 3.6	-0.5 ~ 3.6	-0.5 ~ 3.6
Recommended Power Supply Voltage (V)	3.15 ~ 3.45	3.15 ~ 3.45	3.15 ~ 3.45	3.15 ~ 3.45
Input Voltage (V)	3.15 ~ 3.45	-0.5 ~ 3.6	-0.5 ~ 3.6	-
Operating Data Rate (Gbps)	-	0.6 ~ 11.3	0.6 ~ 11.3	0.6 ~ 11.3
Hot Pluggable
Optical Interface	RJ45	Duplex LC Connector	Duplex LC Connector	LC Connector
Sensitivity	-	-14.4 dBm	-11.1 dBm	-14 dBm
Ordering Information	IS-10G-T -10°C ~ 70°C / 14°F ~ 158°F IS-10G-T-I -40°C ~ 85°C / -40°F ~ 185°F	IS-10G-SM 0°C ~ 70°C / 32°F ~ 158°F IS-10G-SM-I -40°C ~ 85°C / -40°F ~ 185°F	IS-10G-MM 0°C ~ 70°C / 32°F ~ 158°F IS-10G-MM-I -40°C ~ 85°C / -40°F ~ 185°F	IS-10G-BIDI 0°C ~ 70°C / 32°F ~ 158°F IS-10G-BIDI-I -40°C ~ 85°C / -40°F ~ 185°F
