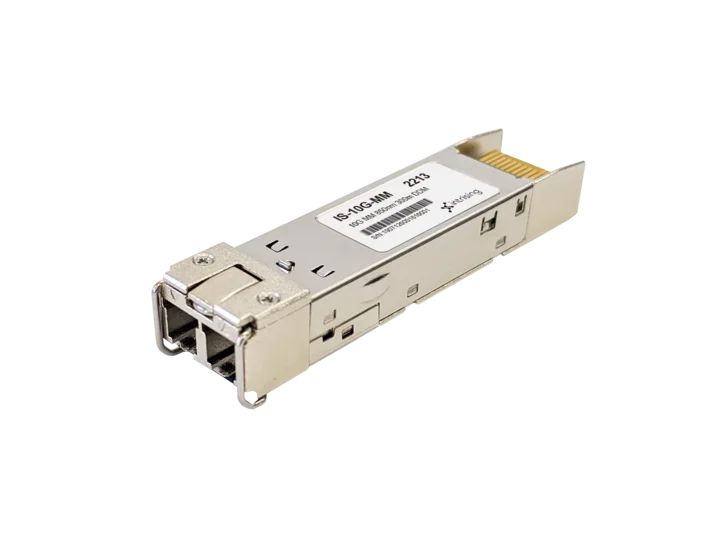

Photo of the product IS-10G-MM

IS-10G-MM

10 GSFP + SR Transceiver

  • Distance: 300M
  • Standard Operating Temperature: -10°C~70°C
  • Wide Operating Temperature: -40°C~85°C
* means optional. Order by request.

IntrisingTM SFP+10Gbps-0.3KM

Intrising 10G SFP + SR T Small Form Factor Pluggable SFP+ transceivers are compliant with the current SFP+ Multi-Source Agreement (MSA) Specification. The high performance uncooled 850nm VCSEL transmitter and high sensitivity PIN receiver provide superior performance for 10GBase-SR Ethernet applications up to 300m optical links.

Compare Table

Model
IS-10G-T
IS-10G-SM
IS-10G-MM
IS-10G-BIDI
Fiber Type Copper to Fiber Transceiver Single-Mode Fiber Multi-Mode Fiber Single-Mode Fiber
Media Type 10G : CAT6A/CAT7
5G : CAT6 or Better
2.5G : CAT5E or Better
1G : CAT5E or Better
100M : CAT5E or Better
- - -
Distance 10G: 30m
5G: 50m
2.5G: 100m
1G: 100m
100M: 100m
10km 300m 10km
Wavelength - 1310nm DFB-LD 850nm VCSEL RX
  • 1270nm/1330nm
TX
  • 1330nm/1270nm
Temperature Standard
  • -10°C ~ 70°C / 14°F ~ 158°F
Industrial (-I Model)
  • -40°C ~ 85°C / -40°F ~ 185°F
Standard
  • 0°C ~ 70°C / 32°F ~ 158°F
Industrial (-I Model)
  • -40°C ~ 85°C / -40°F ~ 185°F
Standard
  • 0°C ~ 70°C / 32°F ~ 158°F
Industrial (-I Model)
  • -40°C ~ 85°C / -40°F ~ 185°F
Standard
  • 0°C ~ 70°C / 32°F ~ 158°F
Industrial (-I Model)
  • -40°C ~ 85°C / -40°F ~ 185°F
Relative Humidity - 0 ~ 85% (non-condensing) 0 ~ 85% (non-condensing) -
DDM
Supply Voltage (V) -0.5 ~ 4.0 -0.5 ~ 3.6 -0.5 ~ 3.6 -0.5 ~ 3.6
Recommended Power Supply Voltage (V) 3.15 ~ 3.45 3.15 ~ 3.45 3.15 ~ 3.45 3.15 ~ 3.45
Input Voltage (V) 3.15 ~ 3.45 -0.5 ~ 3.6 -0.5 ~ 3.6 -
Operating Data Rate (Gbps) - 0.6 ~ 11.3 0.6 ~ 11.3 0.6 ~ 11.3
Hot Pluggable
Optical Interface RJ45 Duplex LC Connector Duplex LC Connector LC Connector
Sensitivity - -14.4 dBm -11.1 dBm -14 dBm
Ordering Information IS-10G-T
  • -10°C ~ 70°C / 14°F ~ 158°F
IS-10G-T-I
  • -40°C ~ 85°C / -40°F ~ 185°F
IS-10G-SM
  • 0°C ~ 70°C / 32°F ~ 158°F
IS-10G-SM-I
  • -40°C ~ 85°C / -40°F ~ 185°F
IS-10G-MM
  • 0°C ~ 70°C / 32°F ~ 158°F
IS-10G-MM-I
  • -40°C ~ 85°C / -40°F ~ 185°F
IS-10G-BIDI
  • 0°C ~ 70°C / 32°F ~ 158°F
IS-10G-BIDI-I
  • -40°C ~ 85°C / -40°F ~ 185°F
