Ethernet
|
- Operating Mode: Store and Forward, L2 wire-speed / non-blocking switching engine
- MAC Addresses: 4K
- Packet Buffer: 1Mbits
- Jumbo Frame: 9K
- Backplane / Switching Fabric: 16Gbps
|

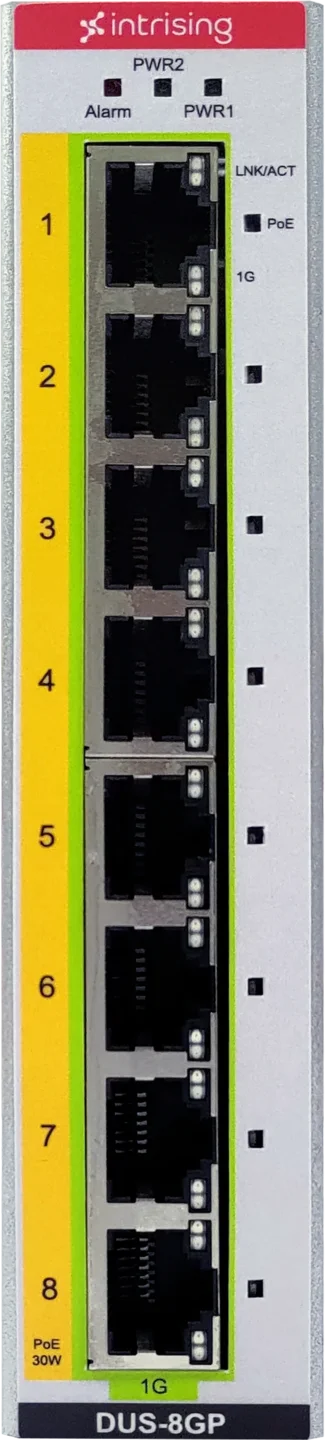

RJ45 Copper Ports
|
- Port Number: 8
- Speed: 10 / 100 / 1000 Mbps
- MDI / MDIX Auto-crossover: Support straight or cross wired cables
- Auto-negotiation / Duplex: 10 / 100 / 1000 Mbps speed auto-negotiation; Full & Half Duplex
|
Protocols & Standards
|
- Protocols & Standards: IEEE 802.3, IEEE 802.3x, Flow Control, Back Pressure, TCP / UDP, ICMP, IEEE 802.3af / at
|
Power
|
- Power Input: Redundant Power Input, DC Input, Terminal Block
- Input Voltage Range: 46-57 VDC
- Reverse Power Protection: YES
- Power Consumption: 5.76 W (Without PD load)
|
Indicators
|
- Power Status Indication: Power Input Status
- Ethernet Port Indication: Link & speed
|
Environmental and Compliances
|
- Operating Temperature: 40 ~ 75ºC (Cold startup at -40ºC)
- Storage Temperature: -40 ~ 85ºC
- Humidity: 5 ~ 95% (Non-Condensing)
- Vibration, shock, free fall: IEC-60068-2-6, -27, -32
- Certification Compliance: CE, FCC
- EMC:
- FCC Part 15, CISPR 22 (EN55022) Class A
- IEC-61000-4-2, -3, -4, -5, -6 (Level 3)
- RoHS & WEEE: RoHS (Pb free) and WEEE Compliant
- MTBF: >25 years
|
Electrical Safety
|
|
Mechanical
|
- Protection: IP30
- Dimension (HxWxD) mm (Without DIN rail kit): 150x32x125
- Weight (g): 570
- Mounting:
- DIN-Rail Mounting
- Wall Mounting
- Relay Output: 1A, 24V, Normal Open
|
