RVS-8M-2Q

• Priority Queues: 8
• VLAN Table: 4096
• VLAN ID Range: 1 ~ 4094
• Trunk Group: 8
• Static IGMP Groups: 256
• Dynamic IGMP Groups: 1K
• MAC Table Size: 32K
• Jumbo Frame: 10KB

• Input Voltage: 2x 100 ~ 240VAC (Default is single power)

• Housing: 19-inch rack mounting (1U)
• Dimension: 440mm (W) x 400mm (D) x 44mm (H)
• Weight: 3.7 kg
• Installation: Rackmount Design

• Operating Temperature: 0°C ~ 45°C
• Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
• Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)

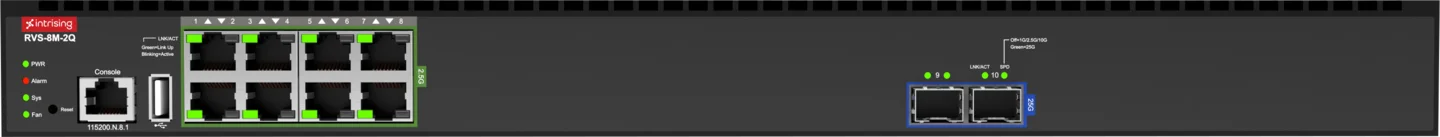

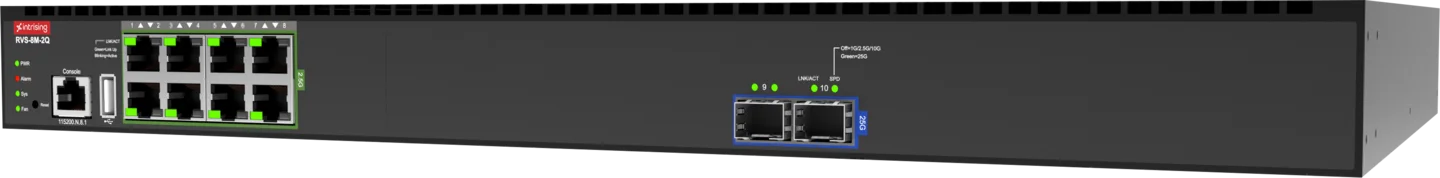

• RJ45 Ports: 10 / 100 / 1000 / 2500BASE-T (X): 8 ports auto-negotiation speed (Auto MDI / MDI-X function)
• Fiber Optic Ports: 1G / 2.5G / 10G / 25G SFP28 slot : 2 ports
• LED Indicators:
  • System: PWR (Green), System (Red), Fan (Green), GPS (Green)
  • Ethernet port: RJ-45 LNK/ACT (Green), SFP Link (Green)/Speed (Green)
• Console: RS-232 (RJ-45 connector)
• Reset Button: Yes

• MTBF: 830589 hours
• CE:
  • EN 55032:2015 / AC:2016-07, Class A
  • EN 55032:2012 / AC:2013, Class A
  • EN 61000-3-2:2014
  • EN 61000-3-3:2013
  • EN 55024:2010
  • EN 55024:2010 / A1:2015
• FCC:
  • 47 CFR FCC Part 15, Subpart B, Class A
  • ANSI C63.4:2014
• VCCI:
  • VCCI-CISPR 32:2016, Class A

5 years

• Up to 2 x 25 GbE stacking ports
• Supports stackable up to 6 units
• Up to 144 ports in a single stack
• Supports spine and leaf line-rate topologies

• Static routing / Inter VLAN routing
• Policy based routing*
• Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng, OSPFv3, BGP4+, ISIS* and BEIGRP*
• MPLS: MP-BGP*, VRF*
• Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6
• Redundant VRRP, VRRPv3
• VRRP Load Balancing*
• Supports IGMP v1 / v2 / v3, MLD v1 / v2
• BFD (Bidirectional Forwarding Detection)*
• Floating static route for failover*
• Configurable maximum active routing rules

• Hardware NAT Translations: Wire-speed performance
• One-to-One NAT
• Port Forwarding
• Dynamic NAT
• Port Overload (PAT-Port Address Translations): TCP Timeout (sec.) UDP Timer (sec.)
• Port Mapping Protocol*
• ALG (Application Level Gateway)*

• 128-bit and 256-bit cipher suites (GCM-AES-256)

• Static & Dynamic aggregation (IEEE 802.3ad LACP)
• Maximum 8 groups (LAGs) and max 8 member ports per LAG

• Storm suppression based on port bandwidth percentage & PPS

• Static & Blackhole MAC address
• MAC learning limit

• IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
• Port-based VLAN (up to 4094 VLANs)
• Protocol-based / IP subnet-based / MAC-based VLAN
• QinQ (double-tag VLAN)
• VLAN Mapping (VLAN Translation)
• Voice VLAN
• GVRP
• ISM VLAN (MVR)
• MVRP

• Supports STP / RSTP / MSTP
• BPDU Guard and Root Guard

• Loopback detection and prevention by physical port or VLAN based

• ITU G.8032 Ethernet ring protection switching (ERPS)

• DNS Client
• DNS Server
• DNS Proxy

• DHCP Client including option 66
• DHCP Snooping
• DHCP Relay including option 82
• DHCP Server
  • MAC-based can assign IP address by specific host
  • Port-based can assign IP address by specific port

• Local port mirroring: Ingress, Egress or both direction per port
• Remote port mirroring: RSPAN

• Port-based priority with 802.1p CoS priority override
• 802.1p CoS priority and IPv4 / IPv6 DSCP priority
• 8 Hardware queues per port
• Flexible queue scheduling algorithms including SP, WRR, and SP + WRR, and Weighted Deficit Round Robin (WDRR)
• Time-Based QoS
• QoS on Routing

• Bi-directional Rate limit in percentage (Ingress and Egress)
• In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
• Traffic shaping in egress
• Flow-based bandwidth management*

• Layer 2, Layer 3 (IPv4 / IPv6), Layer 4 packet filtering
• Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN
• Bi-directional ACLs (Ingress and Egress)
• Time range-based ACLs
• VLAN-based ACL issuing

• Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

• IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2

• Hierarchical user management and password protection
• Supports up to 10 IP addresses to access the switch
• HTTPS for secure access to the web interface
• SSH 2.0 for secure shell to command line interface
• MAC-based authentication
• 802.1X
• 802.1X with VLAN assignment
• 802.1X dynamic access control list (ACL) based on RADIUS attributes
• RADIUS and TACACS+ Authentication
• Guest VLAN
• Supports Port Isolation
• AAA authentication (PAP, CHAP, MS-CHAP)
• Dynamic ARP Inspection
• DoS Protection for SYN flood, SSH attack, HTTP / HTTPS attack, and port scan prevention
• Unicast Reverse Path Forwarding (uRPF)*

• SNMP v1 / v2c / v3 and Trap
• SNMP v1 / v2 providing light security by means of the community strings
• SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)
• Remote Monitoring (RMON) alarm, event, and history recording
• Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
• RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

• Both IPv4 and IPv6 stack simultaneously

• Neighbor Discovery (ND)
• IPv6 PMTU
• IPv6 FIB
• IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
• DHCP Client for IPv6

• NAT-PT
• 4over6
• IPSec v6
• GRE
• 6to4
• ISATAP

• Readable text configuration file for system quick installation
• Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file

• Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP

• Supports CLI via SSH 2.0, Telnet and Console
• System log, alarming based on severity
• WEB UI management through HTTP / HTTPs
• NTP, SNTP
• Ping, Tracert
• TFTP Server
• TFTP, FTP Client
• Netflow*
• IP SLA* for best path selection, or for evaluating like delay, latency, jitter, packet loss
• ARP Table

• NETCONF*/YANG*

• DHCPv6 Client including option 66
• DHCPv6 Snooping
• DHCPv6 Relay including option 18 / 37
• DHCPv6 Server
  • MAC-based can assign IP address by specific host
  • Port-based can assign IP address by specific port

• IPSec
• L2TP
• PPTP
• GRE
• IKE
• VxLAN
• L2VPN
• L3VPN

• PPP and PPPoE (Client / Serv)
• PPP Bridge
• VTI Tunnel

• Sending the alarm message when power failures

• 802.3ah link layer remote loopback and discovery
• IEEE 802.1ag CFM (Connectivity Fault Management) protocols
