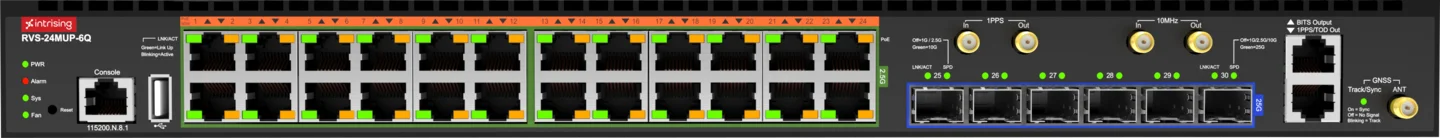

Photo of the product RVS-24MUP-6Q

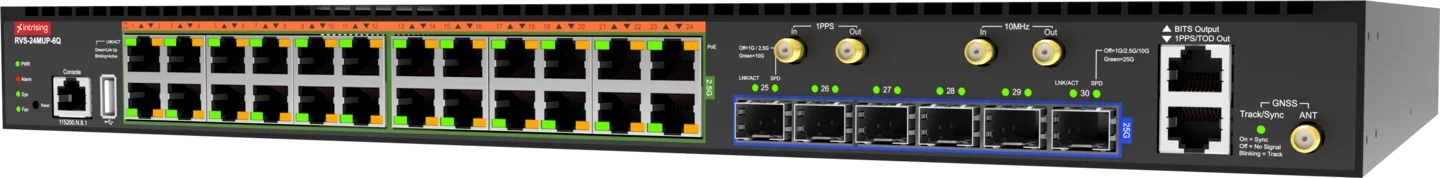

Photo of the product RVS-24MUP-6Q

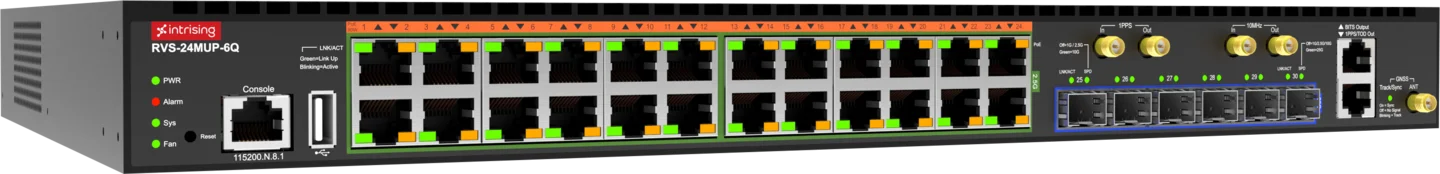

Photo of the product RVS-24MUP-6Q

RVS-24MUP-6Q

Industrial 24x2.5G+6x25G L2+ Managed PoE++ Switch with PTP and Stacking

  • Time Synchronization
    • IEEE 1588v2 (GM, BC/OC, and TC)
    • Supports Industrial/Automation Profile 802.1AS-2020 (gPTP)
    • Supports Power Profile IEC 61850-9-3 and IEEE C37.238-2017*
    • Supports AES67 and SMPTE ST 2110 for AV-over-IP Dante network*
    • Nanosecond-level (ns) Accuracy
  • Stacking
    • Up to 6 x 10 GbE stacking ports
    • Supports stackable up to 6 units, a total of 60 Gb stacking bandwidth
    • Up to 144 Gigabit ports in a single stack
    • Supports spine and leaf line-rate topologies
  • Layer 3 IPv4/6 Routing (IPv6 ready)
    • Static routing/Inter VLAN routing
    • Unicast routing RIPv1/v2, OSPFv1/v2, BGP4*, RIPng*, OSPFv3*, BGP4+*
    • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6*
    • Redundant VRRP, VRRPv3*
    • Supports IGMP v1/v2/v3, MLD v1/v2
  • NAT (Network Address Translation)
    • Hardware NAT Translations: Wire-speed performance
    • One-to-One NAT
    • Port Forwarding
    • Dynamic NAT
    • Port Overload (PAT-Port Address Translation): TCP Timeout (sec.) UDP Timer (sec.)
  • MACSEC
    • 128-bit and 256-bit cipher suites (GCM-AES-256)
* means optional. Order by request.

Hardware

Capacity

  • Priority Queues: 8
  • VLAN Table: 4096
  • VLAN ID Range: 1 ~ 4094
  • Trunk Group: 8
  • Static IGMP Groups: 256
  • Dynamic IGMP Groups: 1K
  • MAC Table Size: 32K
  • Jumbo Frame: 10KB

Power

  • Input Voltage: 2x 100 ~ 240VAC (Default is single power)
  • PoE Budget: 720W in total. Per port up to 90W.

Physical Characteristics

  • Housing: 19-inch rack mounting (1U)
  • Dimension: 440mm (W) x 400mm (D) x 44mm (H)
  • Weight: 3.7 kg
  • Installation: Rackmount Design

Environmental Limits

  • Operating Temperature: 0°C ~ 45°C
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
  • Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)

Interfaces

  • RJ45 Ports: 10 / 100 / 1000 / 2500BASE-T (X): 24 ports auto-negotiation speed (Auto MDI / MDI-X function)
  • Fiber Optic Ports: 1G / 2.5G / 10G / 25G SFP28 slot : 6 ports
  • LED Indicators:
    • System: PWR (Green), System (Red), PoE Max (Green), Fan (Green), GPS (Green)
    • Ethernet port: RJ-45 LNK/ACT (Green)/PoE (Orange), SFP Link (Green)/Speed (Green)
  • Console: RS-232 (RJ-45 connector)
  • Reset Button: Yes

Regulatory Approvals

  • MTBF: 830589 hours
  • CE:
    • EN 55032:2015 / AC:2016-07, Class A
    • EN 55032:2012 / AC:2013, Class A
    • EN 61000-3-2:2014
    • EN 61000-3-3:2013
    • EN 55024:2010
    • EN 55024:2010 / A1:2015
  • FCC:
    • 47 CFR FCC Part 15, Subpart B, Class A
    • ANSI C63.4:2014
  • VCCI:
    • VCCI-CISPR 32:2016, Class A

Warranty

5 years

Software

PTP Telecom Profile

  • Supports IEEE 1588v2 (T-GM, T-BC / OC, T-TC, T-TSC) Transparent Clock / Boundary Clock / Ordinary Clock / Grandmaster
  • Supports Telecom Profile G.8275.1, G.8275.2, and G.8265.1
  • Supports G.8262 / G.8262.1 SyncE
  • Supports G.8264 SyncE ESMC
  • Integrated Stratum 3E OCXO with optional hold over performances
  • Rich timing input / output interfaces: ToD, 1PPS, BITS and 10MHz
  • Internal GNSS receiver for master clock implementations
  • Support FlexE for flexible bandwidth utilization
  • Nanosecond-level Accuracy with G.8273.2 and G.8273.3 standards compatibility

Time Synchronization

  • IEEE 1588v2 PTP (GM, BC / OC, and TC)
    • Supports E2E / P2P: End-to-End and Peer-to-Peer mode
    • Supports two steps PTP
    • Supports L2 multicast and L3 (IPv4) multicast UDP transport mechanism
  • Industrial / Automation Profile 802.1AS-2020 (gPTP)
  • Power Profile IEC 61850-9-3 and IEEE C37.238-2017*
  • AES67 and SMPTE ST 2110 for AV-over-IP Dante network*
  • Nanosecond-level (ns) Accuracy

Stacking

  • Up to 6 x 10 GbE stacking ports
  • Supports stackable up to 6 units, a total of 60 Gb stacking bandwidth
  • Up to 144 Gigabit ports in a single stack
  • Supports spine and leaf line-rate topologies

Layer 3 IPv4 / 6 Routing (IPv6 Ready)

  • Static routing / Inter VLAN routing
  • Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng*, OSPFv3*, BGP4+*
  • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6*
  • Redundant VRRP, VRRPv3*
  • Supports IGMP v1 / v2 / v3, MLD v1 / v2

NAT (Network Address Translation)

  • Hardware NAT Translations: Wire-speed performance
  • One-to-One NAT
  • Port Forwarding
  • Dynamic NAT
  • Port Overload (PAT-Port Address Translations): TCP Timeout (sec.) UDP Timer (sec.)

MACSEC

  • 128-bit and 256-bit cipher suites (GCM-AES-256)

Link Aggregation

  • Static & Dynamic aggregation (IEEE 802.3ad LACP)
  • Maximum 8 groups (LAGs) and max 8 member ports per LAG

Broadcast / Multicast / Unicast Storm Suppression

  • Storm suppression based on port bandwidth percentage & PPS*

MAC Address Table

  • Static & Blackhole MAC address
  • MAC learning limit*

VLAN

  • IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
  • Port-based VLAN (up to 4094 VLANs)
  • Protocol-based / IP subnet-based / MAC-based VLAN
  • QinQ (double-tag VLAN)
  • VLAN Mapping (VLAN Translation)*
  • Voice VLAN*
  • MVRP*

Spanning Tree

  • Supports STP / RSTP / MSTP
  • BPDU Guard and Root Guard

Loop Protect

  • Loopback detection and prevention

ERPS

  • ITU G.8032 Ethernet ring protection switching (ERPS)

DHCP

  • DHCP Client including option 66
  • DHCP Snooping including option 82 / 66*
  • DHCP Relay including option 82
  • DHCP Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port

Mirroring

  • Local port mirroring: Ingress, Egress or both direction per port
  • Remote port mirroring: RSPAN*

Quality of Service

  • Port-based priority with 802.1p CoS priority override*
  • 802.1p CoS priority and IPv4 DSCP priority
  • 8 Hardware queues per port
  • Flexible queue scheduling algorithms including SP, WRR, and SP + WRR*

Bandwidth Control (Rate Limit)

  • Bi-directional Rate limit in percentage (Ingress and Egress)
  • In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
  • Traffic shaping in egress*

ACL

  • Layer 2 to Layer 4 packet filtering
  • Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN*
  • Bi-directional ACLs (Ingress and Egress)*
  • Time range-based bi-directional ACLs (Ingress and Egress)*
  • VLAN-based ACL issuing*

Discovery Protocol

  • Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

Multicast

  • IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2

Security

  • Hierarchical user management and password protection*
  • Supports up to 10 IP addresses to access the switch
  • HTTPS for secure access to the web interface
  • SSH 2.0 for secure shell to command line interface
  • MAC-based authentication
  • 802.1X
  • 802.1X with VLAN assignment*
  • 802.1X dynamic access control list (ACL) based on RADIUS attributes*
  • RADIUS and TACACS+ Authentication
  • Guest VLAN*
  • Supports Port Isolation*
  • AAA authentication*
  • Dynamic ARP Inspection*

SNMP & MIB

  • SNMP v1 / v2c / v3 and Trap
  • SNMP v1 / v2 providing light security by means of the community strings*
  • SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)*
  • Remote Monitoring (RMON) alarm, event, and history recording
  • Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
  • RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

IP Stack for Managed Interface

  • Both IPv4 and IPv6 stack simultaneously

IPv6 for Managed Interface

  • Neighbor Discovery (ND)*
  • IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP*
  • DHCP Client for IPv6*

Configuration Import and Export

  • Readable text configuration file for system quick installation
  • Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file*

Firmware

  • Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP*

Management

  • Supports CLI via SSH 2.0, Telnet and Console
  • System log, alarming based on severity*
  • WEB UI management through HTTP / HTTPs
  • NTP, SNTP
  • Ping, Tracert

Remote Management

  • NETCONF / YANG*

DHCP for IPv6

  • DHCPv6 Client including option 66
  • DHCPv6 Snooping including option 82 / 66
  • DHCPv6 Relay including option 82
  • DHCPv6 Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port
* means optional. Order by request.

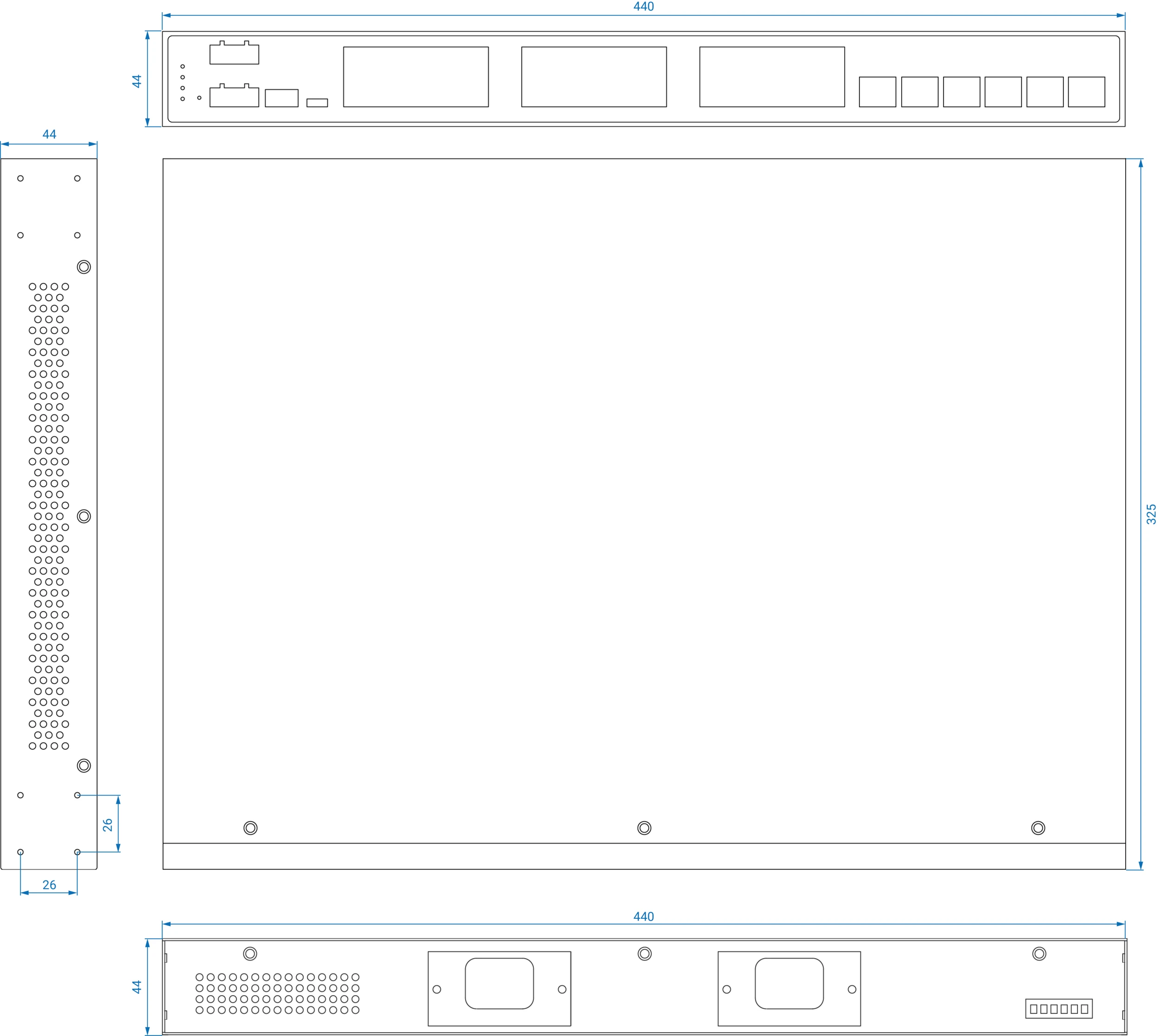

Dimensions

Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
Latest The datasheet of RVS-24MUP-6Q Download
