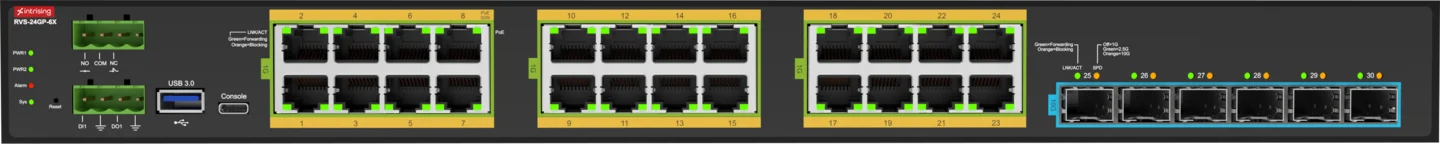

Photo of the product RVS-24GP-6X

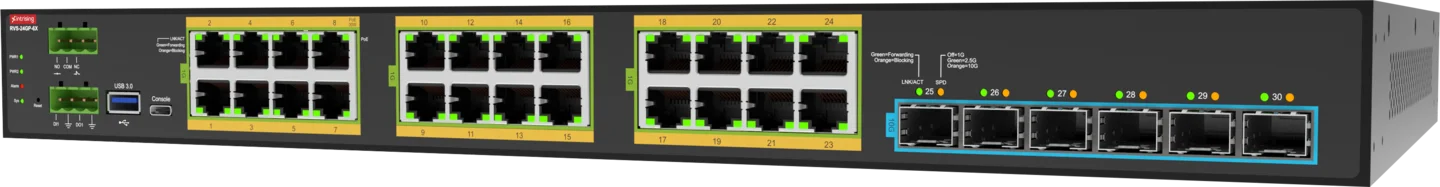

Photo of the product RVS-24GP-6X

RVS-24GP-6X

Industrial 24G+6x10G L2+/L3 Managed PoE+ Switch

  • Stacking{*}
    • Up to 6 x 10 GbE stacking ports
    • Supports stackable up to 6 units
    • Up to 144 ports in a single stack
    • Supports spine and leaf line-rate topologies
  • MACsec
    • 128-bit and 256-bit cipher suites (GCM-AES-256)
  • Layer 3 IPv4/6 Routing (IPv6 ready)
    • Static routing/Inter VLAN routing
    • Policy based routing*
    • Unicast routing RIPv1/v2, OSPFv1/v2, BGP4*, RIPng, OSPFv3, BGP4+, ISIS, and BEIGRP*
    • MPLS: MP-BGP*, VRF*
    • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6
    • Redundant VRRP, VRRPv3
    • VRRP Load Balancing*
    • Supports IGMP v1/v2/v3, MLD v1/v2
    • BFD (Bidirectional Forwarding Detection)*
  • NAT (Network Address Translation)
    • Hardware NAT Translations: Wire-speed performance
    • One-to-One NAT
    • Port Forwarding
    • Dynamic NAT
    • Port Overload (PAT - Port Address Translation): TCP Timeout (sec.) UDP Timer (sec.)
    • Port Mapping Protocol*
    • ALG (Application Level Gateway)*
  • OAM{*}
    • 802.3ah link layer remote loopback and discovery
    • IEEE 802.1ag CFM (Connectivity Fault Management) protocols
* means optional. Order by request.

Hardware

Capacity

  • Priority Queues: 8
  • VLAN Table: 4096
  • VLAN ID Range: 1 ~ 4094
  • Trunk Group: 8
  • Static IGMP Groups: 256
  • Dynamic IGMP Groups: 1K
  • MAC Table Size: 32K
  • Jumbo Frame: 10KB

Power

  • Input Voltage
    • 2x 16.8 ~ 60 VDC (isolated DC)
    • 2x 85 ~ 264 VAC (IEC320) [-AC model]
  • PoE Input Voltage: 2x 52 VDC for PoE
  • PoE Budget
    • Max 720W (from separate PoE power supply)
    • (54V input is recommended for PTZ or heater applications)

Physical Characteristics

  • Housing: IP30 Metal case
  • Dimension: 440mm (W) x 325mm (D) x 44mm (H)
  • Weight: 2.9 kg
  • Installation: Rackmount Design

Environmental Limits

  • Operating Temperature
    • -20°C ~ 60°C / -4°F ~ 140°F
    • -40°C ~ 75°C / -40°F ~ 167°F [-I model]
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
  • Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)

Interfaces

  • RJ45 Ports: 10 / 100 / 1000BASE-T (X): 24 ports auto-negotiation speed (Auto MDI / MDI-X function)
  • Fiber Optic Ports: 1G / 2.5G / 10G SFP+ slot : 6 ports auto-sensing socket with DDMI
  • LED Indicators
    • System: PWR1 (Green), PWR2 (Green), Alarm (Red), Sys (Green)
    • Ethernet port: RJ-45 LNK/ACT (Green), PoE (Green), SFP Link
  • Console: USB type C
  • Relay Output: 1x Current carrying capacity 1A@24VDC
  • DI / DO
    • 1x Digital Input (DI): Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current: 8mA
    • 1x Digital Output (DO): Open collector to 40 VDC, 200mA
  • Reset Button: Yes

Regulatory Approvals

  • MTBF: 383,180 hours (standards: IEC 62380) (43.7 years)
  • EMC
    • FCC Part 15, Subpart B, Class A
    • ICES-003 Issue 7-2020
    • EN55032:2015 / A11:2020, EN55035:2017 / A11:2020, EN 61000-3-2:2014, EN 61000-3-3:2013, IEC 61000-6-2:2016, IEC 61000-6-4:2018
    • IEC 61000-4-2:2008, IEC 61000-4-3:2020, IEC 61000-4-4:2012, IEC 61000-4-5:2014 + AMD1:2017 CSV, IEC 61000-4-6:2013 / COR1:2015, IEC 61000-4-8:2009, IEC 61000-4-11:2020
  • Stability
    • Drop : IEC 60068-2-32
    • Shock : IEC 60068-2-27
    • Vibration : IEC 60068-2-6

Warranty

5 years

Software

Stacking*

  • Up to 6 x 10 GbE stacking ports
  • Supports stackable up to 6 units
  • Up to 144 ports in a single stack
  • Supports spine and leaf line-rate topologies

Layer 3 IPv4 / 6 Routing (IPv6 ready)

  • Static routing / Inter VLAN routing
  • Policy based routing*
  • Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng, OSPFv3, BGP4+, ISIS* and BEIGRP*
  • MPLS: MP-BGP*, VRF*
  • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6
  • Redundant VRRP, VRRPv3
  • VRRP Load Balancing*
  • Supports IGMP v1 / v2 / v3, MLD v1 / v2
  • BFD (Bidirectional Forwarding Detection)*
  • Floating static route for failover*
  • Configurable maximum active routing rules

NAT (Network Address Translation)

  • Hardware NAT Translations: Wire-speed performance
  • One-to-One NAT
  • Port Forwarding
  • Dynamic NAT
  • Port Overload (PAT - Port Address Translation): TCP Timeout (sec.) UDP Timer (sec.)
  • Port Mapping Protocol*
  • ALG (Application Level Gateway)*

MACsec

  • 128-bit and 256-bit cipher suites (GCM-AES-256)

Link Aggregation

  • Static & Dynamic aggregation (IEEE 802.3ad LACP)
  • Maximum 8 groups (LAGs) and max 8 member ports per LAG

Broadcast / Multicast / Unicast Storm Suppression

  • Storm suppression based on port bandwidth percentage & PPS

MAC Address Table

  • Static & Blackhole MAC address
  • MAC learning limit

VLAN

  • IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
  • Port-based VLAN (up to 4094 VLANs)
  • Protocol-based / IP subnet-based / MAC-based VLAN
  • QinQ (double-tag VLAN)
  • VLAN Mapping (VLAN Translation)
  • Voice VLAN
  • GVRP
  • ISM VLAN (MVR)*
  • MVRP

Spanning Tree

  • Supports STP / RSTP / MSTP
  • BPDU Guard and Root Guard

Loop Protect

  • Loopback detection and prevention by physical port or VLAN based

ERPS

  • ITU G.8032 Ethernet ring protection switching (ERPS)

DNS

  • DNS Client
  • DNS Server
  • DNS Proxy

DHCP

  • DHCP Client including option 66
  • DHCP Snooping
  • DHCP Relay including option 82
  • DHCP Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port

Mirroring

  • Local port mirroring: Ingress, Egress or both direction per port
  • Remote port mirroring: RSPAN

Quality of Service

  • Port-based priority with 802.1p CoS priority override
  • 802.1p CoS priority and IPv4 DSCP priority
  • 8 Hardware queues per port
  • Flexible queue scheduling algorithms including SP, WRR, and SP + WRR, and Weighted Deficit Round Robin (WDRR)
  • Time-based QoS
  • QoS on Routing

Bandwidth Control (Rate Limit)

  • Bi-directional Rate limit in percentage (Ingress and Egress)
  • In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
  • Traffic shaping in egress
  • Flow-based bandwidth management*

ACL

  • Layer 2, Layer 3 (IPv4 / IPv6), Layer 4 packet filtering
  • Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN
  • Bi-directional ACLs (Ingress and Egress)
  • Time range-based ACLs
  • VLAN-based ACL issuing
  • IMPB (IP-MAC-Port Binding)

Discovery Protocol

  • Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

Multicast

  • IGMP Querier v1 / v2 / v3
  • IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2
  • IGMP Proxy

Security

  • Hierarchical user management and password protection
  • Supports up to 10 IP addresses to access the switch
  • HTTPS for secure access to the web interface
  • SSH 2.0 for secure shell to command line interface
  • MAC-based authentication
  • 802.1X
  • 802.1X with VLAN assignment
  • 802.1X dynamic access control list (ACL) based on RADIUS attributes
  • RADIUS and TACACS+ Authentication
  • Guest VLAN
  • Supports Port Isolation
  • AAA authentication (PAP, CHAP, MS-CHAP)
  • Dynamic ARP Inspection
  • DoS Protection for SYN flood, SSH attack, HTTP / HTTPS attack, and port scan prevention
  • IP Source Guard
  • Port Security
  • Unicast Reverse Path Forwarding (uRPF)*

SNMP & MIB

  • SNMP v1 / v2c / v3 and Trap
  • SNMP v1 / v2 providing light security by means of the community strings
  • SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)
  • Remote Monitoring (RMON) alarm, event, and history recording
  • Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
  • RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

IP Stack for Managed Interface

  • Both IPv4 and IPv6 stack simultaneously

IPv6 for Managed Interface

  • Neighbor Discovery (ND)
  • IPv6 PMTU
  • IPv6 FIB
  • IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
  • DHCP Client for IPv6

IPv6 Transition*

  • NAT-PT
  • 4over6
  • IPSec v6
  • GRE
  • 6to4
  • ISATAP

Configuration Import and Export

  • Readable text configuration file for system quick installation
  • Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file
  • Rollback Config

Firmware

  • Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP
  • Dual Image

Monitoring

  • CPU monitoring, Memory monitoring, Environmental monitoring

Management

  • Supports CLI via SSH 2.0, Telnet and Console
  • System log, alarming based on severity
  • WEB UI management through HTTP / HTTPs
  • NTP, SNTP
  • Ping, Tracert
  • TFTP Server
  • TFTP, FTP Client
  • Netflow*
  • IP SLA* for best path selection, or for evaluating like delay, latency, jitter, packet loss
  • ARP Table
  • In-Service Software Upgrade (ISSU)*

Zero Touch

  • PXE
  • Auto provision

Remote Management

  • NETCONF*/YANG*
  • RESTful API

DHCP for IPv6

  • DHCPv6 Client including option 66
  • DHCPv6 Snooping
  • DHCPv6 Relay including option 18 / 37
  • DHCPv6 Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port

Dying Gasp*

  • Sending the alarm message when power failures

OAM*

  • 802.3ah link layer remote loopback and discovery
  • IEEE 802.1ag CFM (Connectivity Fault Management) protocols

Unidirectional Link Detection (UDLD)

  • For preventing abnormal link between switches, such as fiber breaks in one direction
* means optional. Order by request.

Dimensions

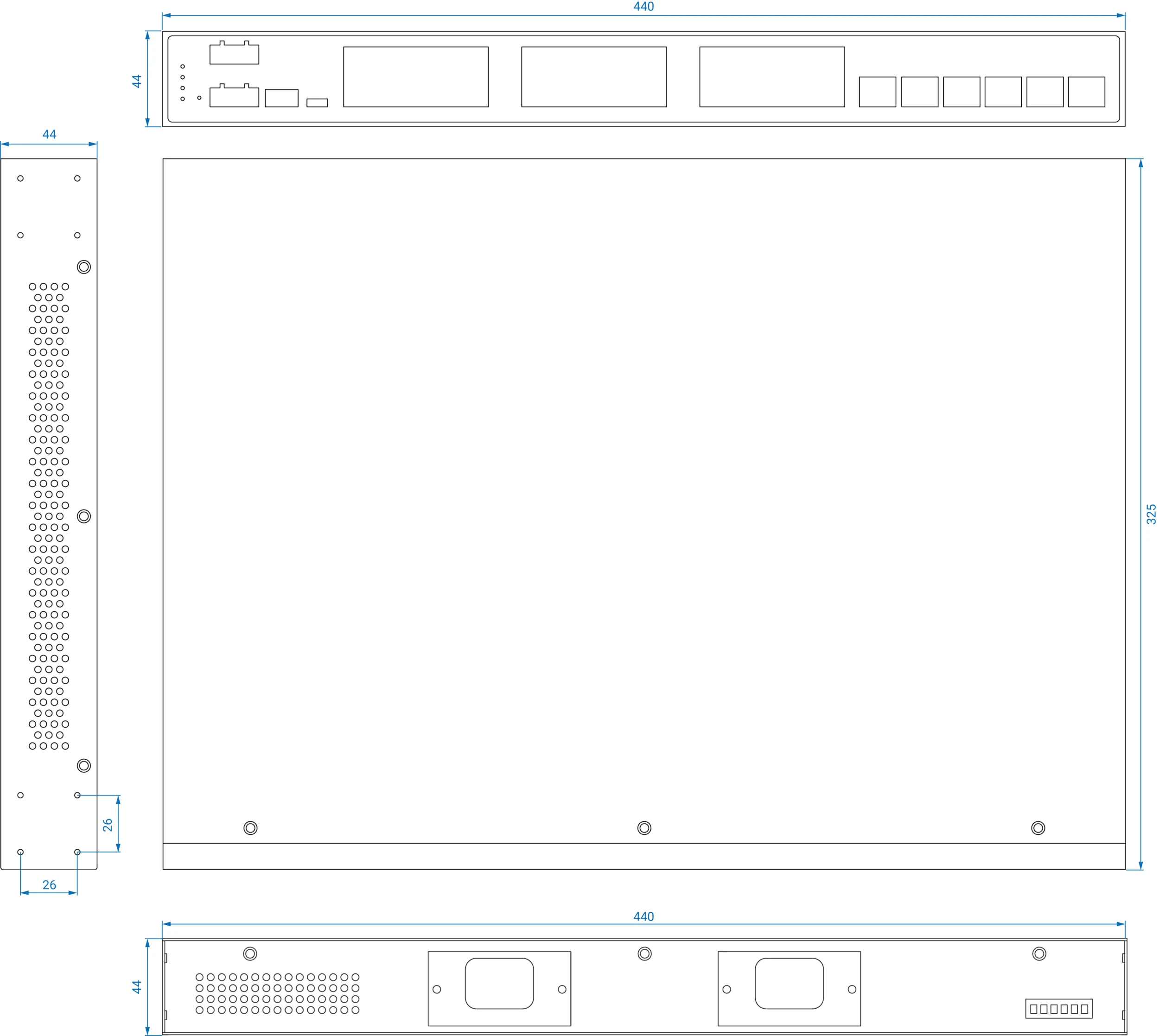

Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
Latest The datasheet of RVS-24GP-6X Download

Order Information

Model Name P/N Description
RVS-24GP-6X RVS-24GP-6X

2x 16.8 ~ 60 VDC input
-20°C ~ 60°C / -4°F ~ 140°F

RVS-24GP-6X RVS-24GP-6X-I

2x 16.8 ~ 60 VDC input
-40°C ~ 75°C / -40°F ~ 167°F (-I model)

RVS-24GP-6X RVS-24GP-6X-AC

2x 85 ~ 264 VAC input
-20°C ~ 60°C / -4°F ~ 140°F

RVS-24GP-6X RVS-24GP-6X-AC-I

2x 85 ~ 264 VAC input
-40°C ~ 75°C / -40°F ~ 167°F (-I model)
