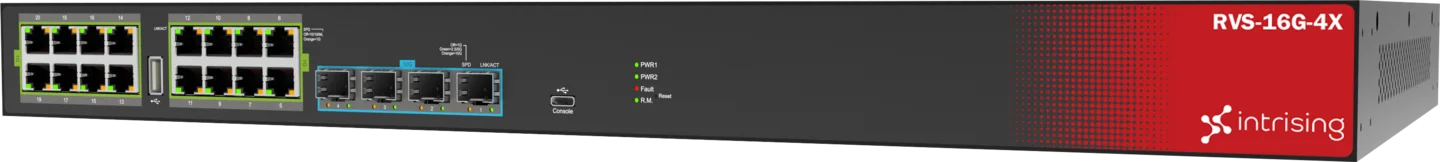

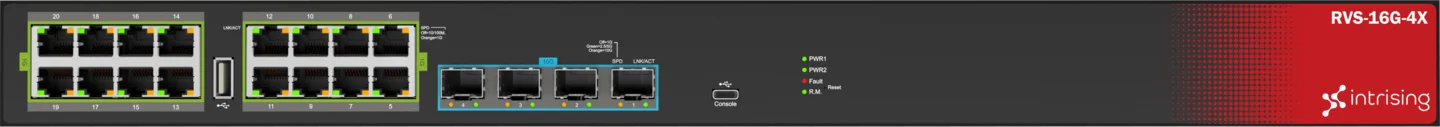

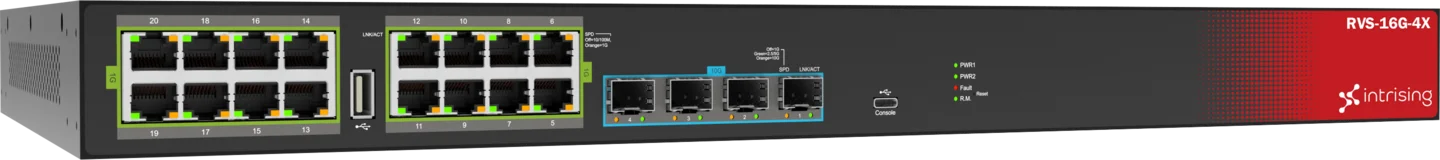

RVS-16G(P)-4X

• IEEE802.3 10Base-T Ethernet
• IEEE802.3u 100Base-TX
• IEEE802.3ab 1000Base-T
• IEEE802.3x Flow Control and Back Pressure
• IEEE802.3ad Port trunk with LACP
• IEEE802.1d Spanning Tree
• IEEE802.1w Rapid Spanning Tree
• IEEE802.1s Multiple Spanning Tree
• IEEE802.3ad Link Aggregation Control Protocol (LACP)
• IEEE802.1AB Link Layer Discovery Protocol (LLDP)
• IEEE802.1X User Authentication (Radius)
• IEEE802.1p Class of Service
• IEEE802.1Q VLAN Tag
• IEEE802.3at / af Power over Ethernet (PoE model)

Back-plane (Switching Fabric): 52 Gbps

• MAC Table Size: 16K
• Jumbo Frame: 10KB

• Input Voltage:
  • Dual 50 ~ 56VDC power inputs with galvanic isolation (default)
  • Built-in 1x isolated AC 110-260VAC IEC320 power conversion*
  • Built-in 2x 100 ~ 240VAC IEC320 power conversion*
• PoE Budget [PoE Model]:
  • 120W
  • (50-56VDC input is recommended for 802.3at 30W applications) Higher PoE budget can be applied upon request.**
• PoE Pin Assignment [PoE Model]: Port #1 ~ #8; support IEEE 802.3at / af Endpoint, Alternative A mode

Max. 28.5W [PoE Model], 27.5W [Non PoE Model]

• Housing: 19-inch rack mounting (1U)

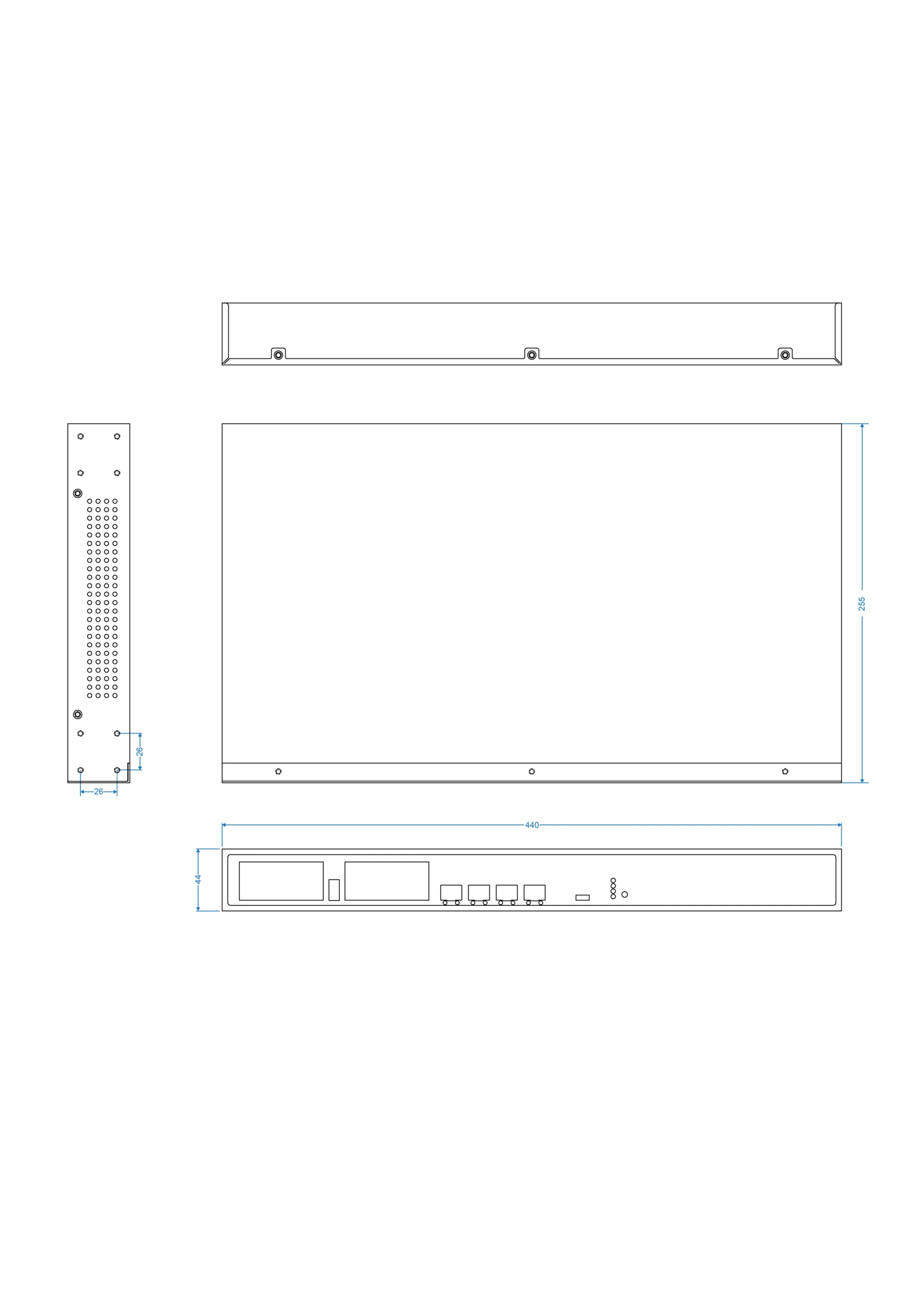

• Dimension: 440mm (W) x 400mm (D) x 44mm (H)
• Weight: 3.7 kg
• Installation: Rackmount Design

• Operating Temperature:
  • 20°C ~ 60°C / -4°F ~ 140°F (Standard model)
  • -40°C ~ 75°C / -40°F ~ 167°F (I model)
• Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
• Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)

• RJ45 Ports: 10 / 100 / 1000BASE-T (X): 16 ports Auto MDI / MDI-X function
• Fiber Optic Ports: 1G / 2.5G / 5G / 10G slot: 4 ports auto-sensing socket with DDMI
• LED Indicators:
  • System: PWR1 (Green), PWR2 (Green), Fault (Red), R.M. (Green)
  • Fiber Optic port: LNK/ACT (Green); SPD 1G (Off); SPD 2.5 / 5G (Green), SPD 10G (Orange)
  • RJ45 port: LNK/ACT (Green); SPD 10 / 100M (Off); SPD 1G (Orange)
  • PoE: LNK/ACT (Green) [PoE model]
• Console: USB Type C
• USB: 1xtype A slot for upload / download config file

• CE:
  • EN 50121-4: 2016 / A1: 2019
  • EN 50121-5: 2017 / A1: 2019
  • EN 55035: 2017 / A11: 2020
  • EN 55032: 2015 / A11: 2020
  • FCC Part 15, Subpart B
  • ICES-003 Issue 7-2020
  • IEC 61000-4-9: 2016
  • IEC 61000-4-10: 2016
  • IEC 61000-6-5: 2015
  • IEC 61000-6-2: 2016
  • IEC 61000-6-4: 2018
  • EN IEC 61000-6-2: 2019
  • EN 61000-6-4: 2019
  • BS EN 55035: 2017 + A11: 2020
• Verifications:
  • IEC 61850-3: 2013
  • IEEE 1613: 2009

5 years

• IEEE 1588v2 PTP (GM, BC / OC, and TC) :
  • Supports E2E / P2P: End-to End and Peer-to-Peer mode
  • Supports two steps PTP
  • Supports L2 multicast and L3 (IPv4) multicast UDP transport mechanism
• Supports IEEE 1588v2 (T-GM, T-BC / OC, T-TC, T-TSC): Transparent Clock / Boundary Clock / Ordinary Clock / Grandmaster
• Industrial / Automation Profile 802.1AS-2020 (gPTP)
• Power Profile IEC 61850-9-3 and IEEE C37.238-2017
• AES67 and SMPTE ST 2110 for AV-over-IP Dante network*
• Nanosecond-level (ns) Accuracy

• Static routing / Inter VLAN routing
• Policy based routing*
• Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng, OSPFv3, BGP4+, ISIS and BEIGRP*
• MPLS: MP-BGP*, VRF*
• Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6
• Redundant VRRP, VRRPv3
• VRRP Load Balancing*
• Supports IGMP v1 / v2 / v3, MLD v1 / v2
• BFD (Bidirectional Forwarding Detection)*
• Floating static route for failover*
• Configurable maximum active routing rules

• Hardware NAT Translations: Wire-speed performance
• One-to-One NAT
• Port Forwarding
• Dynamic NAT
• Port Overload (PAT-Port Address Translations): TCP Timeout (sec.) UDP Timer (sec.)
• Port Mapping Protocol*
• ALG (Application Level Gateway)*

• 128-bit and 256-bit cipher suites (GCM-AES-256)

• Static & Dynamic aggregation (IEEE 802.3ad LACP)
• Maximum 8 groups (LAGs) and max 8 member ports per LAG

• Storm suppression based on port bandwidth percentage & PPS

• Static & Blackhole MAC address
• MAC learning limit
• MAC address filtering*
• MAC address lock-down*

• IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
• Port-based VLAN (up to 4094 VLANs)
• Protocol-based / IP subnet-based / MAC-based VLAN
• QinQ (double-tag VLAN)
• VLAN Mapping (VLAN Translation)
• Voice VLAN
• GVRP
• ISM VLAN (MVR)
• MVRP

• Supports STP / RSTP / MSTP
• BPDU Guard and Root Guard

• Loopback detection and prevention by physical port or VLAN based
• Thrash limiting*

• PoE management: PoE Detection to check if PD hangs then restart the PD
• Per Port PoE status: On/ Off, voltage, current, watts, temperature

• Cybersecurity
• Vulnerability checking
• Identification and authentication
• Resource availability

• ITU G.8032 Ethernet ring protection switching (ERPS)
• Support basic single ring & enhanced ring
• Cover multicast & data packets protection

• DNS Client
• DNS Server
• DNS Proxy

• DHCP Client including option 66
• DHCP Snooping
• DHCP Relay including option 82
• DHCP Server
  • MAC-based can assign IP address by specific host
  • Port-based can assign IP address by specific port

• Local port mirroring: Ingress, Egress or both direction per port
• Remote port mirroring: RSPAN

• Port-based priority with 802.1p CoS priority override
• 802.1p CoS priority and IPv4 / IPv6 DSCP priority
• 8 Hardware queues per port
• Flexible queue scheduling algorithms including SP, WRR, SP + WRR, and Weighted Deficit Round Robin (WDRR)
• Time-Based QoS
• QoS on Routing
• Wirespeed traffic classification with low latency essential for VoIP and real-time streaming media applications*
• Policy-based QoS based on VLAN, port, MAC and general packet classifiers*
• Policy-based storm protection*
• Taildrop for queue congestion control*
• IP precedence and DiffServ marking based on layer 2, 3, and 4 headers*

• Control Plane Prioritization (CPP) ensures the CPU always has sufficient bandwidth to process network control traffic*
• Dynamic link failover (host attach)*
• PVST+ compatibility mode*
• RRP Snooping*

• Bi-directional Rate limit in percentage (Ingress and Egress)
• In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
• Traffic shaping in egress
• Flow-based bandwidth management*

• Layer 2, Layer 3 (IPv4 / IPv6), Layer 4 packet filtering
  Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN
• Bi-directional ACLs (Ingress and Egress)
• Time range-based ACLs
• VLAN-based ACL issuing
• ACL Groups enable multiple hosts / ports to be included in a single ACL, reducing configuration*

• Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

• IGMP Querier v1 / v2 / v3
• IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2
• IGMP Proxy
• IGMP Router Port
• GMRP

• Hierarchical user management and password protection
• Supports up to 10 IP addresses to access the switch
• HTTPS for secure access to the web interface
• SSH 2.0 for secure shell to command line interface
• MAC-based authentication
• 802.1X Port-based Network Access Control*
• 802.1X with VLAN assignment
• 802.1X dynamic access control list (ACL) based on RADIUS attributes
• RADIUS and TACACS+ Authentication
• Auth-fail*
• Guest VLAN
• Supports Port Isolation
• AAA authentication (PAP, CHAP, MS-CHAP)
• Bootloader can be password protected for device security*
• Dynamic ARP Inspection
• Dynamic VLAN Assignment*
• DoS Protection for SYN flood, SSH attack, HTTP / HTTPS attack, and port scan prevention
• IP Source Guard
• Port Security
• Unicast Reverse Path Forwarding (uRPF)*
• Private VLANs provide security and port isolation for multiple customers using the same VLAN*

• SNMP v1 / v2c / v3 and Trap
• SNMP v1 / v2 providing light security by means of the community strings
• SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)
• Remote Monitoring (RMON) alarm, event, and history recording
• Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
• RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

• Static multicast forwarding forward reversed IGMP flow with multicast packets binding with ports for IP surveillance application

• Both IPv4 and IPv6 stack simultaneously

• Neighbor Discovery (ND)
• IPv6 PMTU
• IPv6 FIB
• IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
• DHCP Client for IPv6

• Readable text configuration file for system quick installation
• Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file

• Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP
• Dual Image

• CPU monitoring, Memory monitoring, Environmental monitoring

• Auto topology drawing
• Topology demo
• Complete CLI for professional setting

• PXE
• Auto provision

• NETCONF*/YANG*
• RESTful API

• Supports CLI via SSH 2.0, Telnet and Console
• System log, alarming based on severity
• WEB UI management through HTTP / HTTPs
• NTP, SNTP
• NTPv6 client and server*
• Ping, Tracert
• TFTP Server
• TFTP, FTP Client
• Secure Copy Protocol (SCP) Client
• Netflow*
• IP SLA* for best path selection, or for evaluating like delay, latency, jitter, packet loss
• ARP Table
• In-Service Software Upgrade (ISSU)*
• Active Fiber Monitoring*
• Built-In Self Test (BIST)*
• Find-me device locator*
• Cable fault locator (TDR)*
• Automatic link flap detection and port shutdown*
• Event-based triggers allow user-defined scripts to be executed upon selected system events*

• DHCPv6 Client including option 66
• DHCPv6 Snooping
• DHCPv6 Relay including option 18 / 37
• DHCPv6 Server
  • MAC-based can assign IP address by specific host
  • Port-based can assign IP address by specific port

• SNMPv6
• Telnetv6
• SSHv6
• Syslogv6

• For preventing abnormal link between switches, such as fiber breaks in one direction
