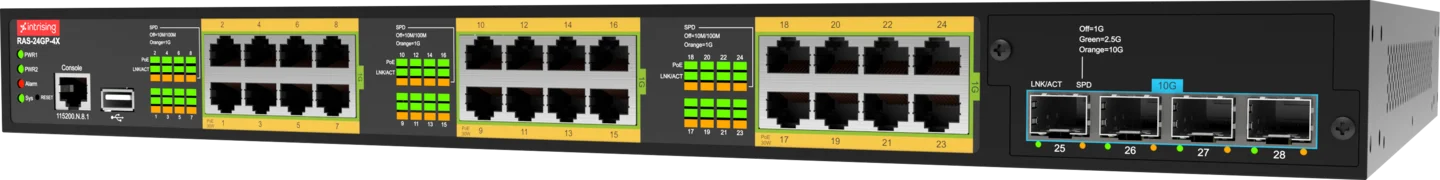

Photo of the product RAS-24GP-4X

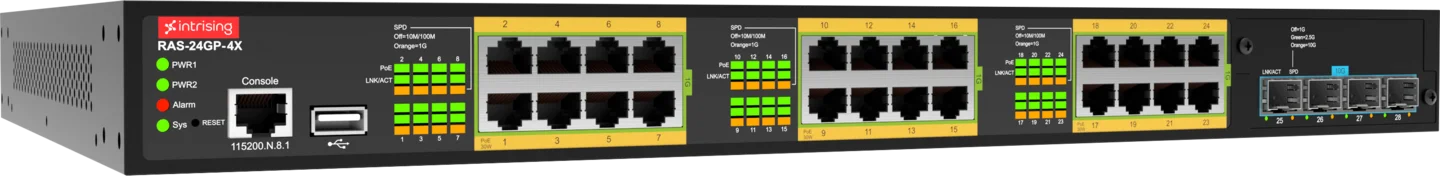

Photo of the product RAS-24GP-4X

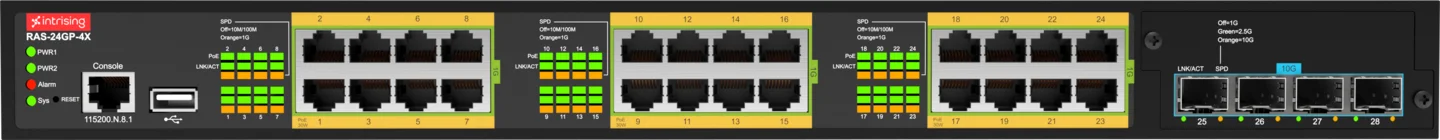

Photo of the product RAS-24GP-4X

RAS-24GP-4X

Industrial 24G+4x10G L2+/L3 Managed Switch with PoE+

  • 24 10/100/1000 BASE-T(X) ports and 4 10G SFP+ ports
  • 24 ports support IEEE802.3at/af PoE+ up to 30W per port
  • Dual power input for redundancy
  • Advanced PoE management functions, such as PD detection, scheduling and health tracking
  • G.8032 ERPS Ring (recovery time < 50ms) for network redundancy
  • MSTP up to 16 instances and backward compatible STP and RSTP
  • DHCP server/client/relay, support for additional option 66/82 for network security
  • Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation for optimum bandwidth utilization
  • Support for IEEE802.1Q VLAN and GVRP
  • IGMP snooping v1/v2/v3, IGMP query and MLD snooping v1/v2
  • QoS bandwidth control by 802.1p CoS(Class of service) and DiffServ, support addition traffic storm control
  • Remote management over Web browser, Telnet, SSH and CLI
  • Logging event and warning by exception through SNMP trap and relay output automatically
  • Access control lists (ACL) support L2 and L3 packet filtering increasing the flexibility and security of network management
  • Security features based on IEEE802.1X authentication with RADIUS and TACACS+
  • SNMPv1/v2c/v3 for different levels of network management
  • Built-in HDMI-over-IP TX/RX extender management controller*
  • Intelligent Auto AV QoS for AV network*
* means optional. Order by request.

Hardware

Ethernet

Standards:

  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Ethernet
  • IEEE 802.3ab 1000Base-T Ethernet
  • IEEE 802.3z Gigabit Fiber
  • IEEE 802.3ae 10G Ethernet over Fiber
  • IEEE 802.3x Flow Control Capability
  • ANSI / IEEE 802.3 Auto-negotiation
  • IEEE 802.1Q VLAN
  • IEEE 802.1p Class of Service
  • IEEE 802.1X Access Control
  • IEEE 802.1D Spanning Tree
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  • IEEE 802.1x User Authentication (Radius)
  • IEEE 802.3at / af PoE

Capacity

  • Priority Queues: 8
  • VLAN Table: 4096
  • VLAN ID Range: 1 ~ 4094
  • Trunk Group: 8
  • Static IGMP Groups: 250
  • Dynamic IGMP Groups: 1K
  • MAC Table Size: 16K
  • Jumbo Frame: 10KB

Power

  • Input Voltage
    • 2x 16.8 ~ 137.5 VDC for the standard model
    • 2x 100 ~ 240 VAC IEC320 for the -AC model
  • Power Consumption: 28W

PoE

  • PoE Input Voltage: 2x 48 VDC for PoE
  • PoE Budget: 720W (from separate PoE power supply) (50-56VDC input is recommended for 802.3at 30W applications) Higher PoE budget can be applied upon request. *
  • PoE Pin Assignment: RJ-45 port # 1 ~ #24 support IEEE 802.3at / af End-point, Alternative A mode
    • Positive (VCC+): RJ-45 pin 1,2
    • Negative (VCC-): RJ-45 pin 3,6

Physical Characteristics

  • Housing: IP30 Metal case
  • Dimension: 440mm (W) x 325mm (D) x 44mm (H)
  • Weight: 2.9 kg
  • Installation: Rackmount Design

Environmental Limits

  • Operating Temperature
    • -20°C ~ 60°C / -4°F ~ 140°F for standard model
    • -40°C ~ 75°C / -40°F ~ 167°F for -I model
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
  • Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)

Interfaces

  • RJ45 Ports: 10 / 100 / 1000BASE-T (X): 24 ports auto-negotiation speed (Auto MDI / MDI-X function)
  • Fiber Optic Ports: 1G / 2.5G / 10G SFP+ slot: 4 ports auto-sensing socket with DDMI
  • LED Indicators
    • System: PWR1 (Green), PWR2 (Green), Alarm (Red), Sys (Green)
    • Ethernet port: RJ-45 LNK/ACT (Green), PoE (Green), SFP Link
  • Console: RS-232 (RJ-45 connector)
  • USB slot: for upload / download config file
  • Relay Output: 1x Current carrying capacity 1A@24VDC
  • Reset Button: Yes

Regulatory Approvals

  • MTBF: 191,002 hours (standards: IEC 62380)
  • EMI & EMS:
    • FCC Part 15, Subpart B
    • ICES-003 Issue 7-2020
    • EN 55035: 2017 / A11:2020
    • EN 55032: 2015 / A11:2020
    • EN 61000-3-2:2014
    • EN 61000-3-3:2013
    • IEC 61000-4-2:2008
    • IEC 61000-4-3:2020
    • IEC 61000-4-4:2012
    • IEC 61000-4-5: 2014 + AMD1:2017 CSV
    • IEC 61000-4-6:2013 / COR1:2015
    • IEC 61000-4-8:2009
    • IEC 61000-4-11:2020
    • IEC 61000-6-2:2016
    • IEC 61000-6-4:2018
    • BS EN 55035:2017 + A11:2020
    • BS EN 55032:2015 + A1:2020
    • BS EN IEC 61000-3-2:2019 + A1:2021
    • BS EN 61000-3-3:2013 + A2:2021
  • Safety: EN IEC 62368-1:2020 (LVD)
  • Stability:
    • Shock: IEC 60068-2-27
    • Vibration: IEC 60068-2-6

Warranty

5 years

Software

Link Aggregation

Static aggregation
Dynamic aggregation (IEEE 802.3ad LACP)
Maximum 8 groups (LAGs) and max 8 member ports per LAG

Jumbo Frame

Maximum 10K bytes

Broadcast / Multicast / Unicast Storm Suppression*

Storm suppression based on port bandwidth percentage
Storm suppression based on PPS*

MAC Address Table

Static MAC address
Blackhole MAC address
MAC learning limit*

VLAN

IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
Port-based VLAN (up to 4094 VLANs)*
MAC-based VLAN*
Protocol-based VLAN
IP subnet based VLAN
QinQ (double-tag VLAN)
VLAN Mapping (VLAN Translation)*
Voice VLAN*
MVRP

Spanning Tree

Support STP / RSTP / MSTP
BPDU Guard and Root Guard

Loop Protect

Loopback detection and prevention

ERPS

ITU G.8032 Ethernet ring protection switching (ERPS)

DHCP

DHCP Client including option 66 / 67
DHCP Snooping including option 82
DHCP Relay including option 82
DHCP Server
MAC based can assign IP address by specific host
Port based can assign IP address by specific port

Mirroring

Local port mirroring
Ingress, Egress or both direction per port
Remote port mirroring: RSPAN*

Quality of Service

Port-based priority with 802.1p CoS priority override
802.1p CoS priority and IPv4 DSCP priority
8 Hardware queues per port
Flexible queue scheduling algorithms including SP, WRR, and SP + WRR*

Bandwidth Control (Rate Limit)

Bi-directional Rate limit in percentage (Ingress and Egress)
In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed.
Traffic shaping in egress*

ACL

Layer 2 to Layer 4 packet filtering
Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN*
Bi-directional ACLs (Ingress and Egress*)
VLAN-based ACL issuing*

Discovery Protocol

Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

Multicast

IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2

Security

Hierarchical user management and password protection
Supports up to 10 IP addresses to access the switch
HTTPS for secure access to the web interface
SSH 2.0 for secure shell to command line interface
MAC-based authentication*
802.1X
802.1X with VLAN assignment*
802.1X dynamic access control list (ACL) based on RADIUS attributes*
RADIUS and TACACS+ Authentication
Guest VLAN*
Support Port Isolation*
AAA authentication
Dynamic ARP Inspection*

SNMP & MIB

SNMP v1 / v2c / v3 and Trap.
SNMP v1 / v2 providing light security by means of the community strings.
SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)*
Remote Monitoring (RMON) alarm, event, and history recording*
Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
RFC 1213 MIB II
RFC 1157 SNMP MIB
RFC 1573 IF MIB
RFC 1757 RMON
Private MIB

IP Stack (for managed interface)

Both IPv4 and IPv6 stack simultaneously

IPv6

Neighbor Discovery (ND)*
IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP*

Configuration Import And Export

Readable text configuration file for system quick installation
Support HTTP / HTTPs / FTP / FTP-SSL*/SFTP / TFTP backup and restore config file

Firmware

Upgrading via HTTP / HTTPs / FTP / FTP-SSL*/SFTP / TFTP

Management

Support CLI via SSH 2.0, Telnet and Console
System log, alarming based on severity
WEB UI management through HTTP / HTTPs
NTP, SNTP
System utilization and temperature alarming
Ping, Tracert*
Device Link Detection Protocol (DLDP)*

* means optional. Order by request.

Dimensions

Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
Latest The datasheet of RAS-24GP-4X Download

Order Information

Model Name P/N Description
RAS-24GP-4X RAS-24GP-4X

PoE per-port up to 30W; PoE total budget 720W
Built-in 2x isolated 16.8 ~ 137.5 VDC power supply
-20°C ~ 60°C / -4°F ~ 140°F

RAS-24GP-4X RAS-24GP-4X-cc

PoE per-port up to 30W; PoE total budget 720W
Built-in 2x 100 ~ 240VAC IEC320
-20°C ~ 60°C / -4°F ~ 140°F
cc means:
EU: European power cord
UK: UK power cord
US: US power cord

RAS-24GP-4X RAS-24GP-4X-I

PoE per-port up to 30W; PoE total budget 720W
Built-in 2x isolated 16.8 ~ 137.5 VDC power supply
-40°C ~ 75°C / -40°F ~ 167°F

RAS-24GP-4X RAS-24GP-4X-I-cc

PoE per-port up to 30W; PoE total budget 720W
Built-in 2x 100 ~ 240VAC IEC320
-40°C ~ 75°C / -40°F ~ 167°F
cc means:
EU: European power cord
UK: UK power cord
US: US power cord
