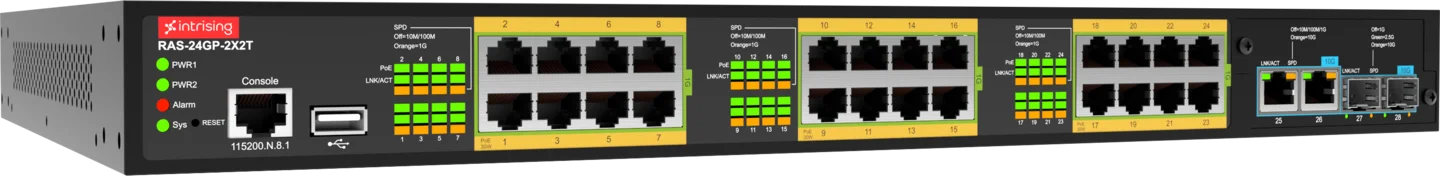

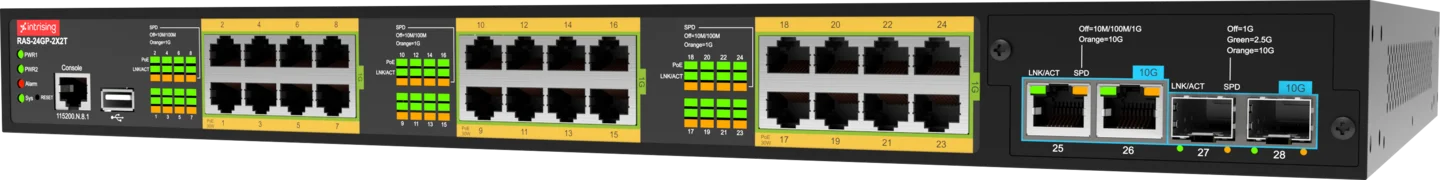

RAS-24GP-2X2T

Industrial 24G+4x10G L2+/L3 Managed Switch with PoE+

Advanced PoE management functions, such as PD detection, scheduling and health tracking
G.8032 ERPS Ring (recovery time < 50ms) for network redundancy
MSTP up to 16 instances and backward compatible STP and RSTP
DHCP server/client/relay, support for additional option 66/82 for network security
Dynamic IEEE 802.3ad LACP link aggregation and static link aggregation for optimum bandwidth utilization
Support for IEEE802.1Q VLAN and GVRP
Built-in HDMI-over-IP TX/RX extender management controller*
Intelligent Auto AV QoS for AV network*

* means optional. Order by request.

Hardware

Ethernet	Standards: IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z Gigabit Fiber IEEE 802.3ae 10G Ethernet over Fiber IEEE 802.3an 10G Copper IEEE 802.3x Flow Control Capability ANSI / IEEE 802.3 Auto-negotiation IEEE 802.1Q VLAN IEEE 802.1p Class of Service IEEE 802.1X Access Control IEEE 802.1D Spanning Tree IEEE 802.1w Rapid Spanning Tree IEEE 802.1s Multiple Spanning Tree IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.1AB Link Layer Discovery Protocol (LLDP) IEEE 802.1x User Authentication (Radius) IEEE 802.3at / af PoE
Capacity	Priority Queues: 8 VLAN Table: 4096 VLAN ID Range: 1 ~ 4094 Trunk Group: 8 Static IGMP Groups: 250 Dynamic IGMP Groups: 1K MAC Table Size: 16K Jumbo Frame: 10KB
Power	Input Voltage 2x 16.8 ~ 137.5 VDC for the standard model 2x 100 ~ 240 VAC IEC320 for the -AC model Power Consumption: 32W
PoE	PoE Input Voltage: 2x 48 VDC for PoE PoE Budget: 720W (from separate PoE power supply) (50-56VDC input is recommended for 802.3at 30W applications) Higher PoE budget can be applied upon request. * PoE Pin Assignment: RJ-45 port # 1 ~ #24 support IEEE 802.3at / af End-point, Alternative A mode. Positive (VCC+): RJ-45 pin 1,2. Negative (VCC-): RJ-45 pin 3,6.
Physical Characteristics	Housing: IP30 Metal case Dimension: 440mm (W) x 325mm (D) x 44mm (H) Weight: 2.9 kg Installation: Rackmount Design
Environmental Limits	Operating Temperature -20°C ~ 60°C / -4°F ~ 140°F for standard model -40°C ~ 75°C / -40°F ~ 167°F for -I model Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)
Interfaces	RJ45 Ports: 10 / 100 / 1000BASE-T (X): 24 ports auto-negotiation speed (Auto MDI / MDI-X function) 1G / 2.5G / 5G / 10G Copper: 2 ports (Auto MDI / MDI-X function) Fiber Optic Ports: 1G / 2.5G / 10G SFP+ slot: 2 ports auto-sensing socket with DDMI LED Indicators System: PWR1 (Green), PWR2 (Green), Alarm (Red), Sys (Green) Ethernet port: RJ-45 LNK/ACT (Green), PoE (Green), SFP Link Console: RS-232 (RJ-45 connector) USB slot: for upload / download config file Relay Output: 1x Current carrying capacity 1A@24VDC Reset Button: Yes
Regulatory Approvals	MTBF: 603,459 hours (standards: IEC 62380) EMI & EMS: FCC Part 15, Subpart B ICES-003 Issue 7-2020 EN 55035: 2017 / A11:2020 EN 55032: 2015 / A11:2020 EN 61000-3-2:2014 EN 61000-3-3:2013 IEC 61000-4-2:2008 IEC 61000-4-3:2020 IEC 61000-4-4:2012 IEC 61000-4-5: 2014 + AMD1:2017 CSV IEC 61000-4-6:2013 / COR1:2015 IEC 61000-4-8:2009 IEC 61000-4-11:2020 IEC 61000-6-2:2016 IEC 61000-6-4:2018 BS EN 55035:2017 + A11:2020 BS EN 55032:2015 + A1:2020 BS EN IEC 61000-3-2:2019 + A1:2021 BS EN 61000-3-3:2013 + A2:2021 Safety: EN IEC 62368-1:2020 (LVD) Stability: Shock: IEC 60068-2-27 Vibration: IEC 60068-2-6
Warranty	5 years

Software

Layer 3 IPv4 / 6 Routing (IPv6 ready)	Static routing / Inter VLAN routing Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4, RIPng, OSPFv3, BGP4+ Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6* Redundant VRRP, VRRPv3* Supports IGMP v1 / v2 / v3, MLD v1 / v2
Link Aggregation	Static & Dynamic aggregation (IEEE 802.3ad LACP) Maximum 8 groups (LAGs) and max 8 member ports per LAG
Broadcast / Multicast / Unicast Storm Suppression	Storm suppression based on port bandwidth percentage & PPS*
MAC Address Table	Static & Blackhole MAC address MAC learning limit*
VLAN	IEEE 802.1Q Tag VLAN (up to 4094 VLANs) Port-based VLAN (up to 4094 VLANs) Protocol-based / IP subnet-based / MAC-based VLAN QinQ (double-tag VLAN) VLAN Mapping (VLAN Translation)* Voice VLAN* MVRP*
Spanning Tree	Supports STP / RSTP / MSTP BPDU Guard and Root Guard
Loop Protect	Loopback detection and prevention
ERPS	ITU G.8032 Ethernet ring protection switching (ERPS)
DHCP	DHCP Client including option 66 DHCP Snooping including option 82 / 66* DHCP Relay including option 82 DHCP Server MAC-based can assign IP address by specific host Port-based can assign IP address by specific port
Mirroring	Local port mirroring: Ingress, Egress or both direction per port Remote port mirroring: RSPAN*
Quality of Service	Port-based priority with 802.1p CoS priority override* 802.1p CoS priority and IPv4 DSCP priority 8 Hardware queues per port Flexible queue scheduling algorithms including SP, WRR, and SP + WRR*
Bandwidth Control (Rate Limit)	Bi-directional Rate limit in percentage (Ingress and Egress) In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed Traffic shaping in egress*
ACL	Layer 2 to Layer 4 packet filtering Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN* Bi-directional ACLs (Ingress and Egress)* Time range-based bi-directional ACLs (Ingress and Egress)* VLAN-based ACL issuing*
Discovery Protocol	Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)
Multicast	IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2
Security	Hierarchical user management and password protection* Supports up to 10 IP addresses to access the switch HTTPS for secure access to the web interface SSH 2.0 for secure shell to command line interface MAC-based authentication 802.1X 802.1X with VLAN assignment* 802.1X dynamic access control list (ACL) based on RADIUS attributes* RADIUS and TACACS+ Authentication Guest VLAN* Supports Port Isolation* AAA authentication* Dynamic ARP Inspection*
SNMP & MIB	SNMP v1 / v2c / v3 and Trap SNMP v1 / v2 providing light security by means of the community strings* SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)* Remote Monitoring (RMON) alarm, event, and history recording Remote Monitoring (RMON) (RFC2819) Groups 1, 2, 3, 9 RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB
IP Stack for Managed Interface	Both IPv4 and IPv6 stack simultaneously
IPv6 for Managed Interface	Neighbor Discovery (ND)* IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP* DHCP Client for IPv6*
Configuration Import and Export	Readable text configuration file for system quick installation Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file*
Firmware	Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP*
Management	Supports CLI via SSH 2.0, Telnet and Console System log, alarming based on severity* WEB UI management through HTTP / HTTPs NTP, SNTP Ping, Tracert
Remote Management	NETCONF / YANG*
DHCP for IPv6	DHCPv6 Client including option 66 DHCPv6 Snooping including option 82 / 66 DHCPv6 Relay including option 82 DHCPv6 Server MAC-based can assign IP address by specific host Port-based can assign IP address by specific port

* means optional. Order by request.

Dimensions

Downloads

Type	Version	Description	Download
Datasheet	Latest	The datasheet of RAS-24GP-2X2T	Download

Order Information

P/N	Model Name	Description
RAS-24GP-2X2T	RAS-24GP-2X2T	PoE per-port up to 30W; PoE total budget 720W Built-in 2x isolated 16.8 ~ 137.5 VDC power supply -20°C ~ 60°C / -4°F ~ 140°F
RAS-24GP-2X2T-cc	RAS-24GP-2X2T	PoE per-port up to 30W; PoE total budget 720W Built-in 2x 100 ~ 240VAC IEC320 -20°C ~ 60°C / -4°F ~ 140°F cc means: EU: European power cord UK: UK power cord US: US power cord
RAS-24GP-2X2T-I	RAS-24GP-2X2T	PoE per-port up to 30W; PoE total budget 720W Built-in 2x isolated 16.8 ~ 137.5 VDC power supply -40°C ~ 75°C / -40°F ~ 167°F
RAS-24GP-2X2T-I-cc	RAS-24GP-2X2T	PoE per-port up to 30W; PoE total budget 720W Built-in 2x 100 ~ 240VAC IEC320 -40°C ~ 75°C / -40°F ~ 167°F cc means: EU: European power cord UK: UK power cord US: US power cord
