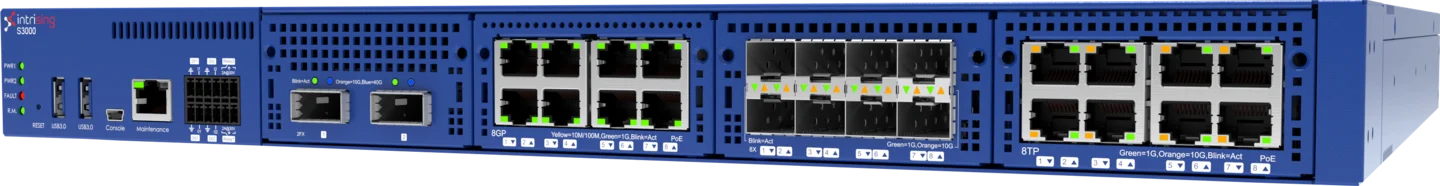

Photo of the product S3000
Photo of the product S3000
Photo of the product S3000


24x10GE PoE +AV over IP Modular L2 +Managed Switch w/2x40GE Uplink Port

  • Maximum 32x10G or 24x10G+2x40G
  • There are several modules selectable
  • Redundant dual AC input power 100V to 240V (Default is single power)
  • Maximum up to 32x IEEE802.3af/at PoE+ output, 30W per port, 480W PoE power budget in total
  • Supports IEEE-1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary**, Peer to Peer Transparent Clock**, End to End Transparent Clock**, Master/Slave mode by each port**
  • Intelligent Auto AV QoS**
  • IGMP snooping v1/v2/v3, IGMP query and IPv6 MLD snooping v1/v2 for AV network
  • Built-in HDMI-over-IP TX/RX extender management controller**
  • Advanced PoE management functions, such as PD detection, scheduling ,and health tracking
  • Enhanced ITU G.8032 ring protection. Recovery time less than 20ms at max 250 switches for single ring
* means optional. Order by request.

UI Traffic & Discovery Overview

The video showcases the user interface (UI) designed for Ports Traffic and Discovery. This particular section of the interface aims to provide users with valuable insights for troubleshooting purposes, specifically regarding the connection quality of each port. A key piece of information provided is the speed of transmission, measured in kilobits per second (Kbps) and megabits per second (Mbps), for both transmitting (Tx) and receiving (Rx) traffic on each port. For users seeking more comprehensive details, the discovery menu offers a visual representation of port-specific information.

Effortless Maintenance and Installation

The S3000 modules offer seamless configurability to align with your present requirements. Furthermore, should the need arise for future modifications, the process can be executed swiftly and effortlessly, as illustrated in the accompanying video demonstration.

Tidy Configuration

The S3000 eliminates the issue of cluttered cables, which often leads to an untidy workplace environment. Its design ensures a neat and organized cable setup, transforming the appearance of your workspace. With a maximum capacity of 32 ports, the S3000 offers extensive connectivity options, accommodating a multitude of devices.

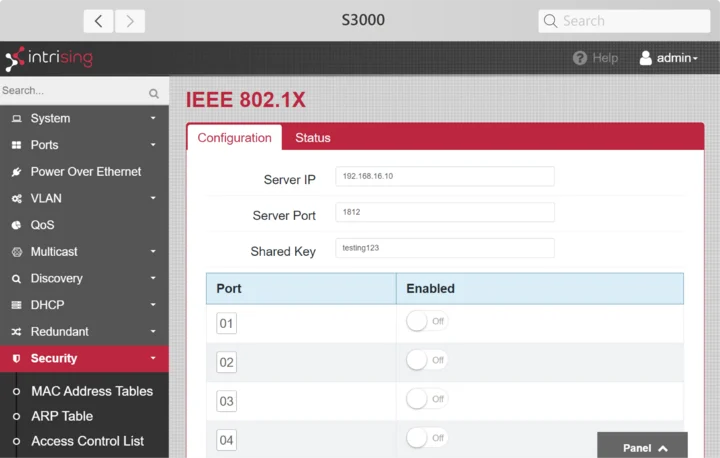

Enhancing Port Security with 802.1X and RADIUS

IEEE 802.1X is a robust, port-based network-access control standard that serves as an authentication mechanism for devices seeking connectivity to a local area network (LAN) or wireless LAN (WLAN). This protocol effectively mitigates the risk of unauthorized individuals gaining access to a LAN through Internet-accessible ports. The 802.1X authentication process involves the exchange of Extensible Authentication Protocol (EAP) messages between a supplicant (client device) and an authenticator. Subsequently, the authenticator forwards this information to an authentication server for meticulous verification. If the authentication server validates the request, the supplicant is granted privileged access to resources residing on the protected side of the network. In addition to 802.1X, RADIUS assumes a critical role as a networking protocol. It encompasses comprehensive authentication, authorization, and accounting (AAA) functionalities, facilitating secure device connections and the efficient utilization of network services. RADIUS ensures a robust and controlled access environment, further bolstering the overall security posture of the network.

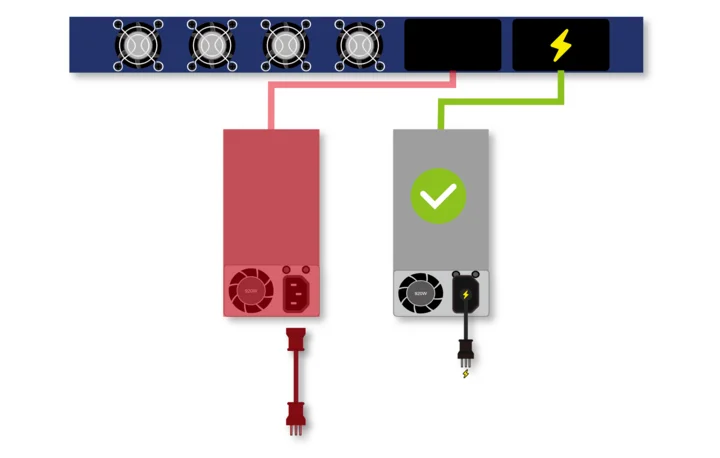

Dual power AV input(Default is single power)

S3000 chassis and modules are designed for easy maintenance and installation. It also supports dual AC input power 100V to 240V input to increase network reliability.

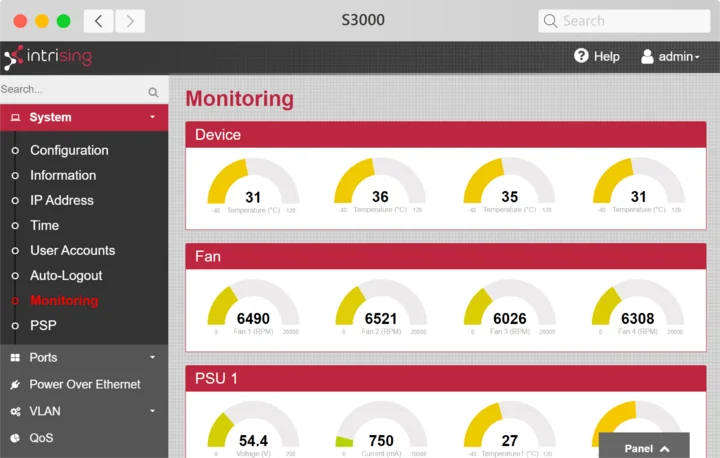

This page provides users with valuable insights for monitoring the status of S3000, particularly in challenging environments. It furnishes essential information such as device temperature, fan speed, and additional pertinent details related to the operation and performance of the switch. By presenting this comprehensive data, users can effectively monitor and assess the health and functioning of the switch in real-time, enabling timely interventions and ensuring optimal performance.

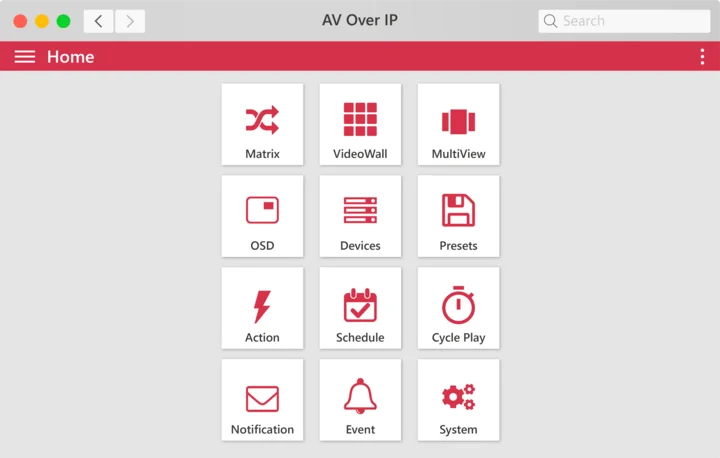

AV over IP Application With S3000

When it comes to AV over IP applications, the S3000 is an ideal choice. Its feature-rich interface, as depicted in the image, offers a multitude of functions tailored for seamless AV transmission. Users can leverage essential capabilities like Video Wall and MultiView, along with a host of other important functions. The S3000 provides a comprehensive solution for delivering high-quality audiovisual content over an IP network, ensuring an immersive and efficient AV experience.



  • IEEE 802.3 10Base-T Ethernet
  • IEEE 802.3u 100Base-TX Ethernet
  • IEEE 802.3z Gigabit Fiber
  • IEEE 802.3ae 10G Ethernet over Fiber
  • IEEE 802.3an 10G Copper
  • IEEE 802.3x Flow Control Capability
  • ANSI / IEEE 802.3 Auto-negotiation
  • IEEE 802.1Q VLAN
  • IEEE 802.1p Class of Service
  • IEEE 802.1X Access Control
  • IEEE 802.1D Spanning Tree
  • IEEE 802.1w Rapid Spanning Tree
  • IEEE 802.1s Multiple Spanning Tree
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
  • IEEE 802.1x User Authentication (Radius)
  • IEEE 802.3 at / af PoE


  • Priority Queues: 8
  • VLAN Table: 4096
  • VLAN ID Range: 1 ~ 4094
  • Trunk Group: 8
  • Static IGMP Groups: 250
  • Dynamic IGMP Groups: 1K
  • MAC Table Size: 32K
  • Jumbo Frame: 10KB


  • Input Voltage: Dual input for AC 100V to 240V (Default is single power)
  • PoE Budget: 480W in total. Per port up to 30W.

Physical Characteristics

  • Housing: 19-inch rack mounting (1U)
  • Dimension: 438mm (W) x 420mm (D) x 44mm (H)
  • Weight: 6.83 kg
  • Installation: Rackmount Design

Environmental Limits

  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
  • Ambient Relative Humidity: 5% ~ 95% RH, 55°C (Non-condensing)


  • RJ45 Ports: 10 / 100 / 1000BASE-T (X): max 32 ports (Auto MDI / MDI-X function)
  • Fiber Optic Ports:
    • 1000M SFP: max 32 ports
    • 10G SFP+: max 32 ports
  • LED Indicators
    • System: PWR1 (Green), PWR2 (Green), Alarm (Red)
    • Ethernet: 10Gbps speed (Orange), 1G / 100M / 10Mbps (Green), PoE (Green)
    • R.M LED: R.M. (Green)
  • Console: Mini-USB
  • Relay Output: 2x Current carrying ability 2A@30VDC
  • DI / DO
    • 2x Digital Input (DI): Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current: 8mA
    • 2x Digital Output (DO): Open collector to 40 VDC, 200mA
  • Reset Button: Yes


1 year


Layer 3 IPv4 / 6 Routing (IPv6 ready)

  • Static routing / Inter VLAN routing
  • Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng*, OSPFv3*, BGP4+*
  • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6*
  • Redundant VRRP, VRRPv3*
  • Supports IGMP v1 / v2 / v3, MLD v1 / v2

NAT (Network Address Translation)

  • Hardware NAT Translations: Wire-speed performance
  • Static IP Masquerade (Port Mapping)
  • Dynamic IP Masquerade
  • PAT (Port Address Translation): Port Overload and Port Forwarding
  • TCP Timeout (sec.) UDP Timer (sec.)

Link Aggregation

  • Static & Dynamic aggregation (IEEE 802.3ad LACP)
  • Maximum 8 groups (LAGs) and max 8 member ports per LAG

Broadcast / Multicast / Unicast Storm Suppression

  • Storm suppression based on port bandwidth percentage & PPS*

MAC Address Table

  • Static & Blackhole MAC address
  • MAC learning limit*


  • IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
  • Port-based VLAN (up to 4094 VLANs)
  • Protocol-based / IP subnet-based / MAC-based VLAN
  • QinQ (double-tag VLAN)
  • VLAN Mapping (VLAN Translation)*
  • Voice VLAN*
  • MVRP*

Spanning Tree

  • Supports STP / RSTP / MSTP
  • BPDU Guard and Root Guard

Loop Protect

  • Loopback detection and prevention


  • ITU G.8032 Ethernet ring protection switching (ERPS)


  • DHCP Client including option 66
  • DHCP Snooping including option 82 / 66*
  • DHCP Relay including option 82
  • DHCP Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port


  • Local port mirroring: Ingress, Egress or both direction per port
  • Remote port mirroring: RSPAN*

Quality of Service

  • Port-based priority with 802.1p CoS priority override*
  • 802.1p CoS priority and IPv4 DSCP priority
  • 8 Hardware queues per port
  • Flexible queue scheduling algorithms including SP, WRR, and SP + WRR*

Bandwidth Control (Rate Limit)

  • Bi-directional Rate limit in percentage (Ingress and Egress)
  • In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
  • Traffic shaping in egress*


  • Layer 2 to Layer 4 packet filtering
  • Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN*
  • Bi-directional ACLs (Ingress and Egress)*
  • Time range-based bi-directional ACLs (Ingress and Egress)*
  • VLAN-based ACL issuing*

Discovery Protocol

  • Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)


  • IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2


  • Hierarchical user management and password protection*
  • Supports up to 10 IP addresses to access the switch
  • HTTPS for secure access to the web interface
  • SSH 2.0 for secure shell to command line interface
  • MAC-based authentication
  • 802.1X
  • 802.1X with VLAN assignment*
  • 802.1X dynamic access control list (ACL) based on RADIUS attributes*
  • RADIUS and TACACS+ Authentication
  • Guest VLAN*
  • Supports Port Isolation*
  • AAA authentication*
  • Dynamic ARP Inspection*


  • SNMP v1 / v2c / v3 and Trap
  • SNMP v1 / v2 providing light security by means of the community strings*
  • SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)*
  • Remote Monitoring (RMON) alarm, event, and history recording
  • Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
  • RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

IP Stack for Managed Interface

  • Both IPv4 and IPv6 stack simultaneously

IPv6 for Managed Interface

  • Neighbor Discovery (ND)*
  • IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP*
  • DHCP Client for IPv6*

Configuration Import and Export

  • Readable text configuration file for system quick installation
  • Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file*


  • Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP*


  • Supports CLI via SSH 2.0, Telnet and Console
  • System log, alarming based on severity*
  • WEB UI management through HTTP / HTTPs
  • Ping, Tracert

Remote Management


DHCP for IPv6

  • DHCPv6 Client including option 66
  • DHCPv6 Snooping including option 82 / 66
  • DHCPv6 Relay including option 82
  • DHCPv6 Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port
* means optional. Order by request.

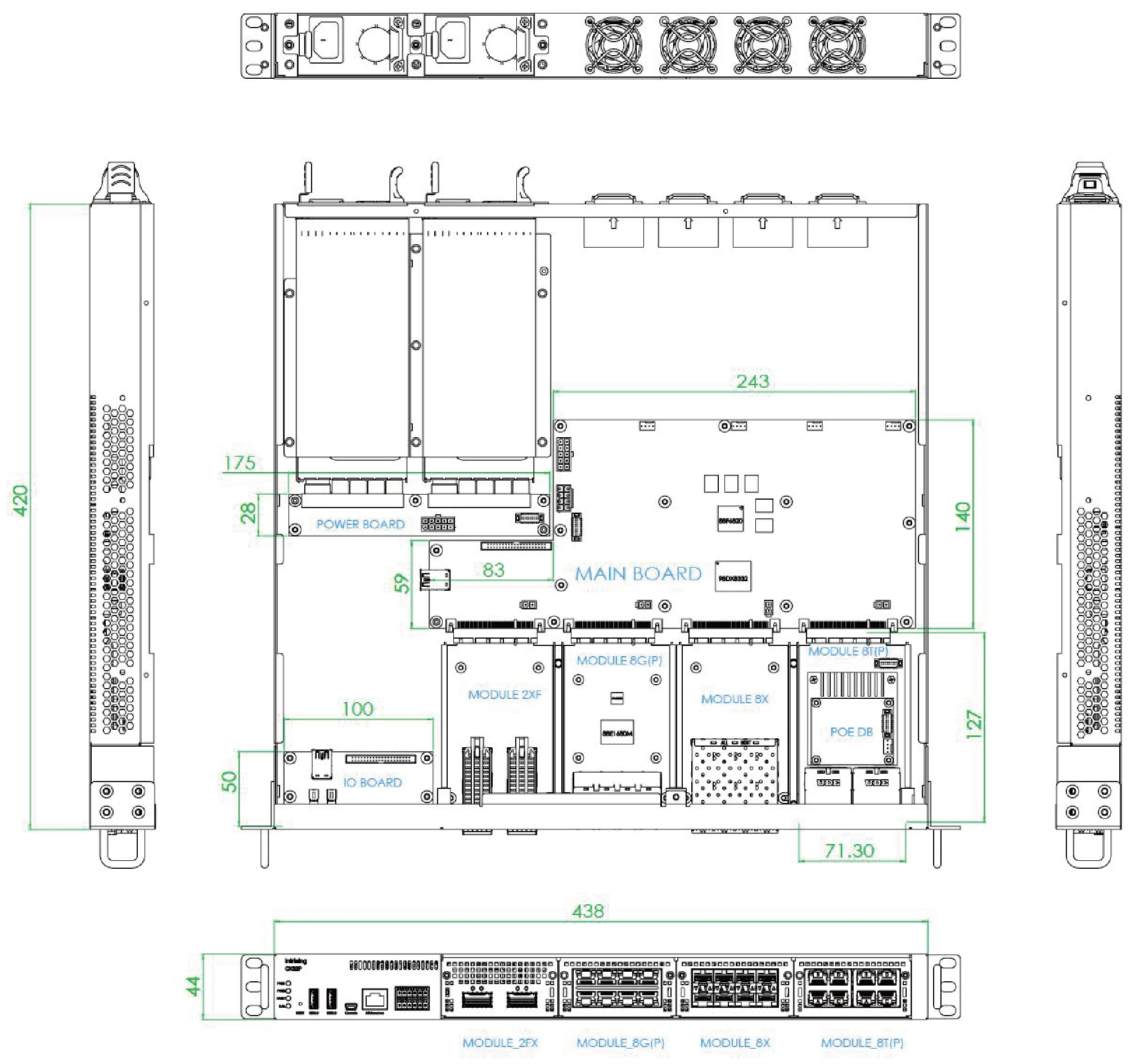

Dimensions diagrams of this device.


Type Version Description Download
Latest The datasheet of S3000 Download

Order Information

Model Name P/N Description
S3000 S3000

Dual input for AC 100V to 240V (Default is single power)
0°C ~ 40°C / 32°F ~ 104°F
