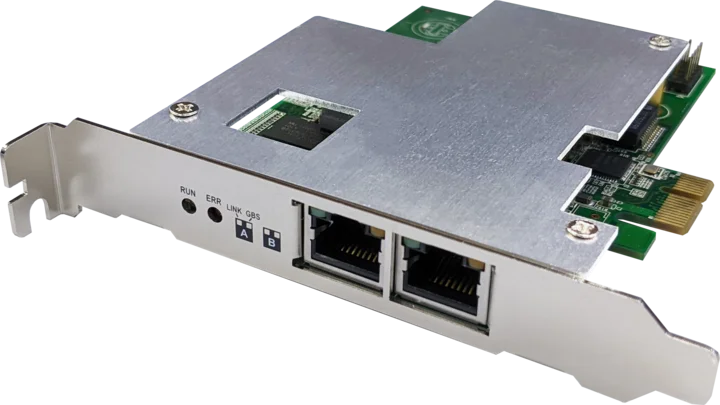

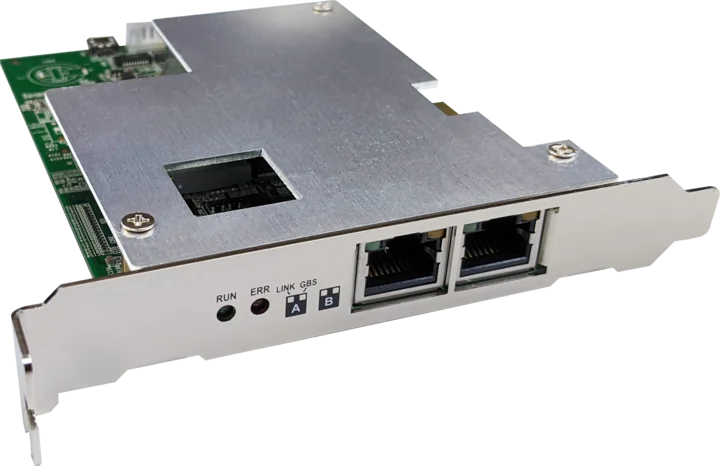

P1000

Ethernet Redundant PCI-E Module

Supports IEC 62439-3:2012 Parallel Redundancy Protocol (PRP)
2x 1GE as A/B Port
1x 1GE Internal PCI-E Port C

* means optional. Order by request.

Hardware

Ethernet

Standards:

IEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T

Terminal fixing piece

Need to lock attached to the chassis

Interface

PCI Express (x1), it can be used to x2, x4, x8 PCIe slots

Transformer (Port A, Port B)

2 x 10 / 100 / 1000 Mbps RJ45 standard Ethernet port

Port Physical Layer (PHY)

PHY 0: For Port A using
PHY 1: For Port B using
PHY 2: For Internal Port C using

Standard Ethernet cable

Cat.5 / 5e / 6/7

Data transmission speed

1Gb / s full-duplex

Rated voltage (V)

3.3V

Input Voltage (V)

3.3V

Power Consumption

1.5A@3.3V for 100Mbps mode (e.g. 5W)
1.9A@3.3V for 1Gbps mode (e.g. 6.2W)

Input Current

2.0A@3.3V

Inrush current

1.6A; period: 157us

Operating Humidity

5 ~ 95% RH (Non-condensing)

Board ID

Determined system IP address by value:

Board ID	IP Address
0x0	192.168.0.253
0x1	192.168.10.253
0x2	By user configuration (default: 192.168.1.15)
0x3 ~ 0xF	192.168.1.15

Software

Management Interface	Web (Status, Config and firmware update) Only on Port C

Physical Characteristics

Dimension	120.92 x 132.85 x 21.59 (add RJ45 connector)mm
Weight	128.6g

Environmental

Operating Humidity	5% ~ 95% (Non-condensing)
Operating Temperature	0°C ~ 55°C
Storage Temperature	0°C ~ 85°C

Regulatory Approvals

EMC / EMI	CE , FCC Class A FCC Part 15 Subpart B Class A ※ EN 55022 Class A ※
Shock protection	IEC60068-2-27; 10G @half sin , 11ms / operation ※
Vibration protection	IEC60068-2-64; 1Grms @5 ~ 500Hz , Random , 1hr / axis / operation ※
Package Drop	IEC60068-2-32; 90cm (1 corner , 3 edge , 6 surface) ※

LED Indicators

LED	Description			Remark
RUN [Green]	System startup	On	Startup
	System startup	Off	Hardware firmware initialization is complete
	Operating Status	On	Normal operation by the host (host initial completed by turn ON)	Contains light failure situations
	Operating Status	Off	When heavy fault is detected	Heavy failure occurrence
ERR [Red]	System startup	On	Initial operation in progress
	System startup	Off	Hardware check completed
	Operating Status	On	Heavy failure / light failure occurred
	Operating Status	Off	No abnormality
LINK [Green]	Port A/B link status	On	Link/Activity of A/B port
LINK [Green]	Port A/B link status	Off	Link failure of A/B port
GBS [Orange]	Port A/B speed	On	GB speed of A/B port
GBS [Orange]	Port A/B speed	Off	No activity

※ Depends on the system housing.

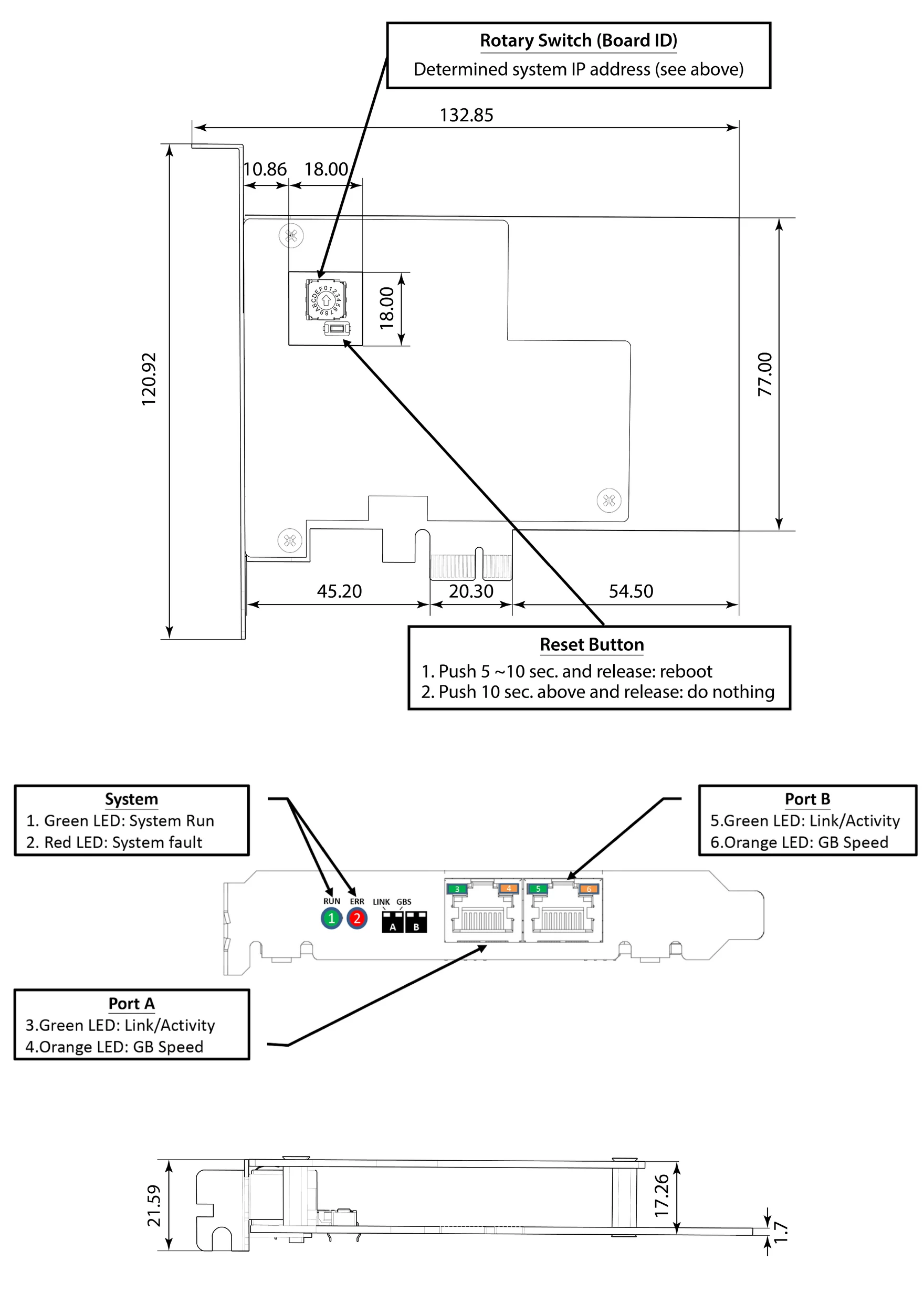

Dimensions

Downloads

Type	Version	Description	Download
Datasheet	Latest	The datasheet of P1000	Download

Order Information

Model Name	P/N	Description
P1000	P1000	0°C ~ 55°C
