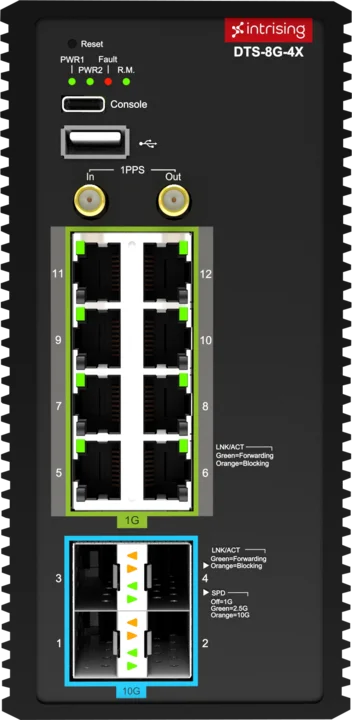

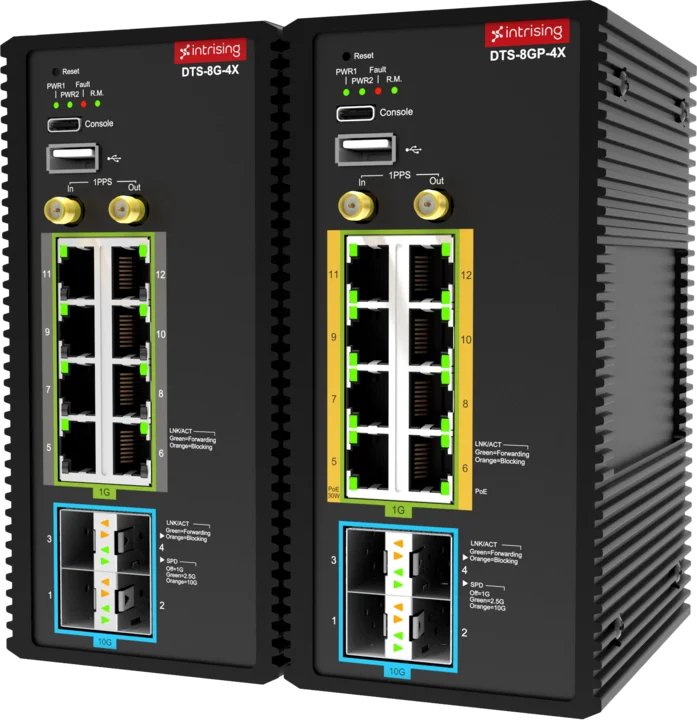

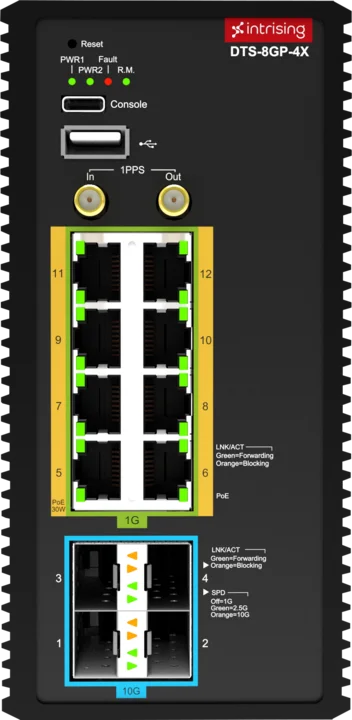

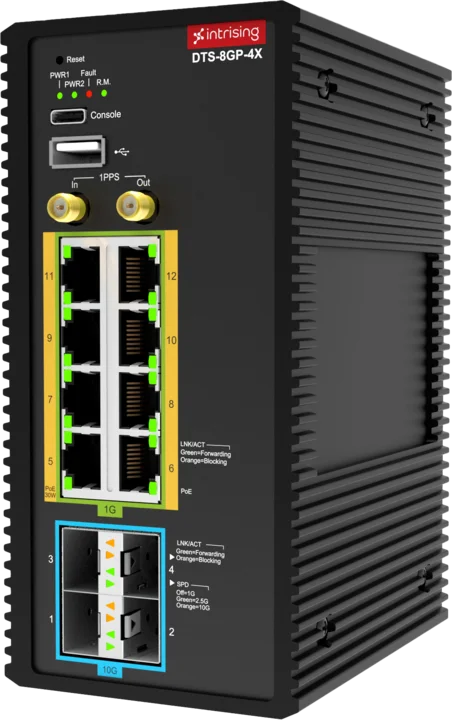

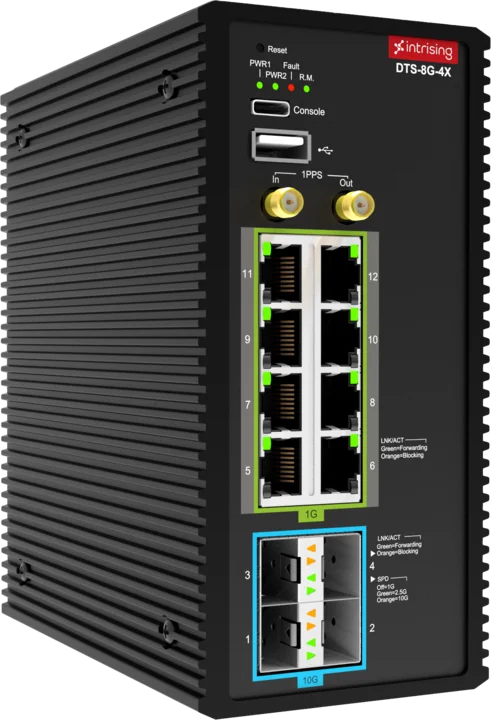

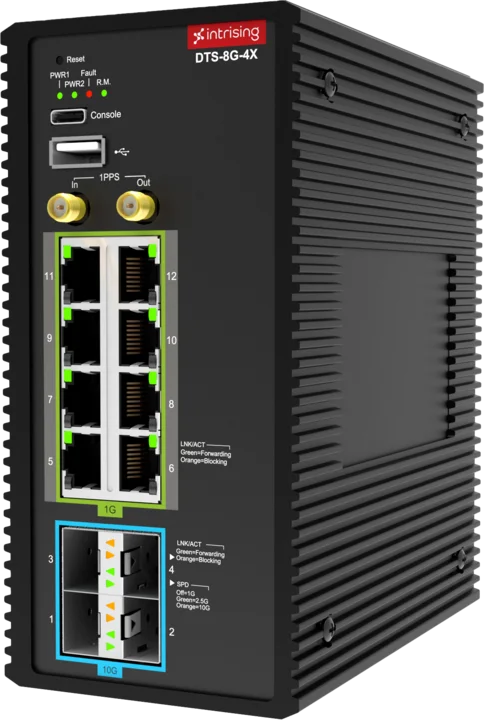

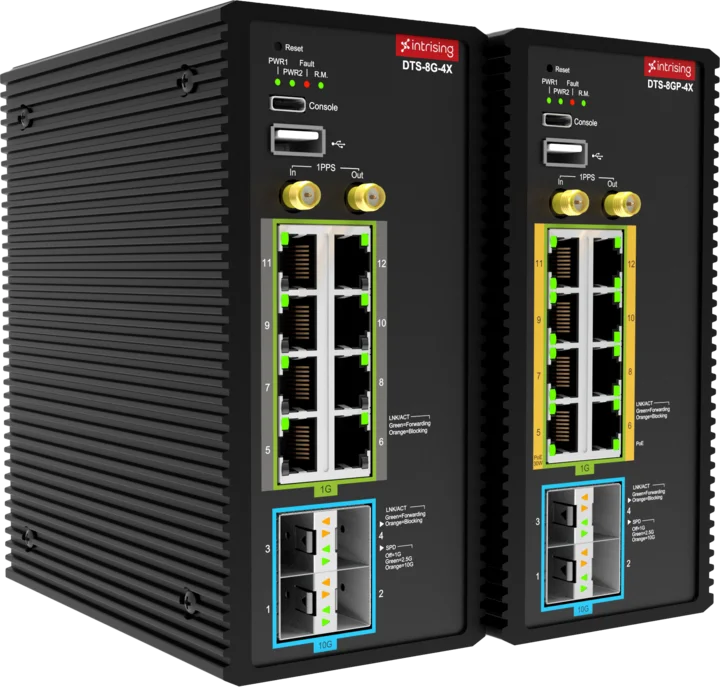

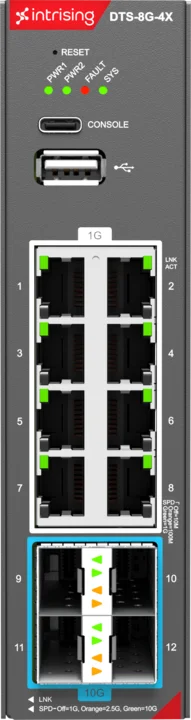

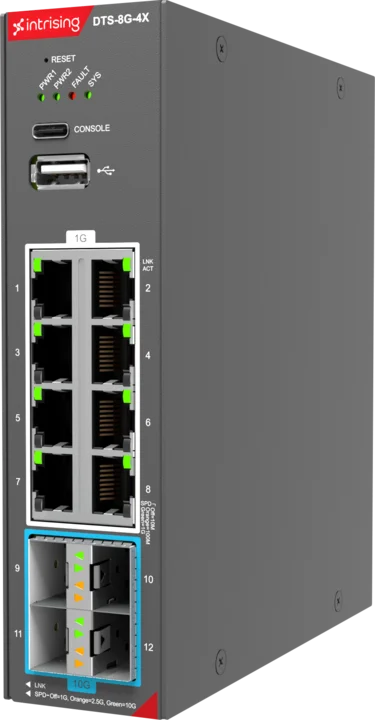

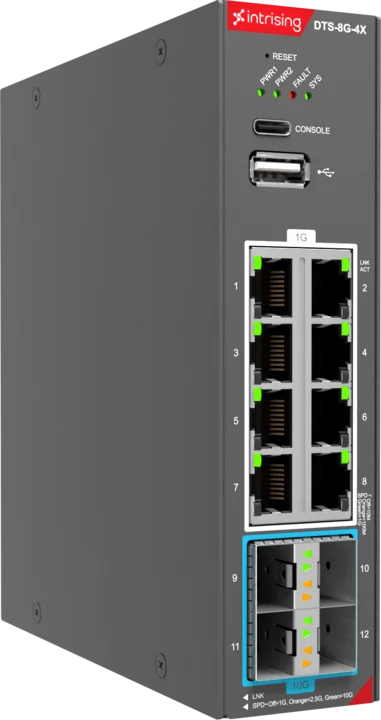

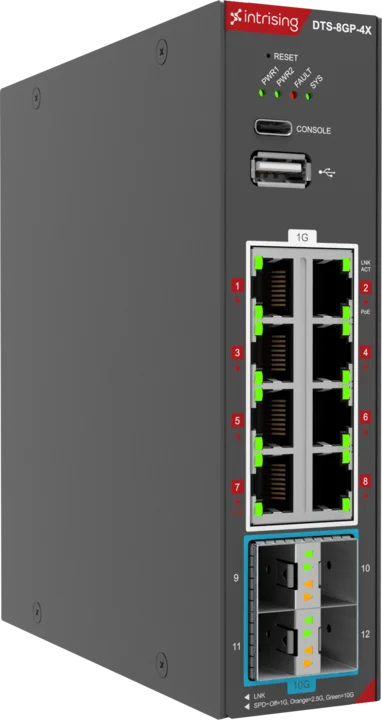

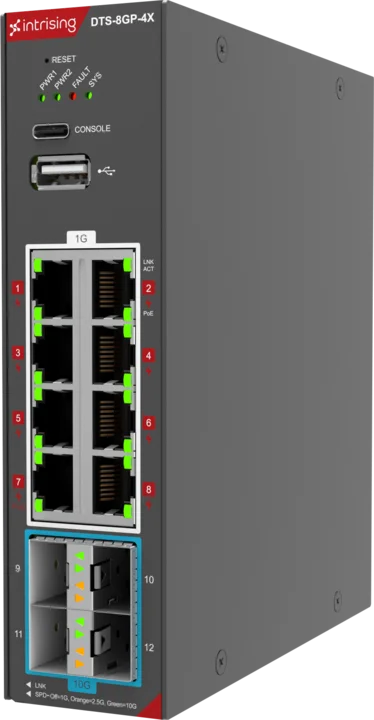

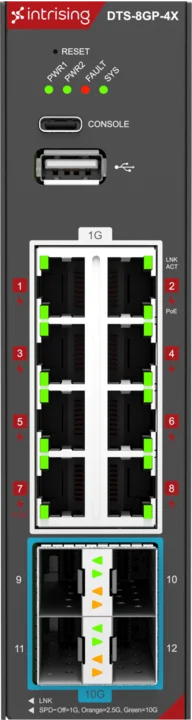

DTS-8G(P)-4X

Industrial 8G+4x10G TSN Managed PoE Switch

  • Redundancy Protocols
    • xSTP, RSTP, MSTP
    • ITU-T G.8032 ERPS
    • MRP (Manager / Client)
    • IEC 62439-3 HSR/PRP Seamless Redundancy Protocol (recovery time=0ms)
    • PTP (IEEE 1588v2) over HSR/PRP support
  • Precision Time Protocol (PTP)
    • IEEE 1588v2 Transparent Clock (E2E / P2P) One-step / Two-step
    • Profile: Default (IEEE 1588 v2)
    • IEEE C37.238-2017 (Power Utility Profile)
    • IEC/IEEE 61850-9-3 & IEEE C37.238-2011
  • Automation Protocols
    • Modbus/TCP (master/slave heartbeat), PROFINET IO (NRT/RT), EtherNet/IP, IEC 60870-5-104, BACnet/IP
  • Time-Sensitive Networking (TSN)
    • IEEE 802.1AS-2020 gPTP Bridge/End-Station
    • IEEE 802.1Qbv Time Aware Scheduling
    • IEEE 802.1CB Seamless Redundancy (FRER)
  • Substation Solutions
    • IEC 61850-3 (Including 6.10.3 Seismic test)
    • IEEE 1613
    • IEC 61850-90-4 MMS Server for SCADA integration
    • IEC 61850 QoS traffic prioritization (GOOSE, SV, R-GOOSE, R-SV)
  • Security
    • IEC 62443-4-2 SL2 Compliance and Cyber Resilience Act (CRA) readiness
    • DoS attack blocking
    • Two-authentication: MAC-based and 802.1X
* means optional. Order by request.

Hardware

Ethernet

  • Standards:
    • IEEE802.3 10Base-T Ethernet
    • IEEE802.3u 100Base-TX
    • IEEE802.3ab 1000Base-T
    • IEEE802.3z Gigabit fiber
    • IEEE802.3x Flow Control and Back Pressure
    • IEEE802.3ad Port trunk with LACP
    • IEEE802.1d Spanning Tree
    • IEEE802.1w Rapid Spanning Tree
    • IEEE802.1s Multiple Spanning Tree
    • IEEE802.3ad Link Aggregation Control Protocol (LACP)
    • IEEE802.1AB Link Layer Discovery Protocol (LLDP)
    • IEEE802.1X User Authentication (Radius)
    • IEEE802.1p Class of Service
    • IEEE802.1Q VLAN Tag
    • IEEE802.3 af / at / bt Power over Ethernet

Product Specifications

  • 10 / 100 / 1000T RJ-45 Copper Ports: 8 with MACsec and HSR / PRP
  • 1 / 10G SFP+ Ports: 4 with MACsec and HSR / PRP
  • Total Ports: 12
  • PoE Enabled Ports: 8 (PoE Model)
  • Switching Fabric: 96Gbps

Performance

  • MAC Address: 16K
  • Priority Queues: 8
  • Simultaneous VLANs: 4K
  • VLAN ID Range: 1-4094
  • Jumbo Frames: 10KB L2 jumbo frames
  • Multicast groups: 1,023 (Layer 2 and Layer 3)

Interfaces

  • LED Indicators:
    • System: PWR1 (Green), PWR2 (Green), FAULT (Red), SYS (Green)
    • RJ-45 Port: LNK/ACT (Green)
    • Fiber Port: LNK (Green), SPD 1G (Off), SPD 2.5G (Orange), SPD 10G (Green)
    • NonPoE Model: RJ-45 Port: SPD 10M (Off ), SPD 100M (Orange), SPD 1G (Green)
    • PoE Model: PoE (Green)
  • Console: USB type C
  • Reset Button: Yes
  • Overload Current Protection: Yes
  • Reverse Polarity Protection: Yes
  • Relay Output: 1x Current carry ability 1A@24VDC

Environmental Specifications

  • Operating Temperature: -40°C ~ 75°C / -40°F ~ 167°F
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
  • Operating Humidity: 5% ~ 95% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing

Physical Specifications

  • Dimension:
    • I_W: 48 x 138 x 152 mm (1.88 x 5.43 x 5.98 in)
    • U8_I_W: 74 x 138 x 152 mm (2.91 x 5.43 x 5.98 in)
    • I_H: 75 x 138 x 152 mm (2.95 x 5.43 x 5.98 in)
  • Weight:
    • I_W: 800 g (1.76 lbs)
    • U8_I_W: 1,010 g (2.23 lbs)
    • I_H: 1,293 g (2.85 lbs)
  • Enclosure: Aluminum / Stainless Steel and Sheet Metal Shell
  • Installation: DIN Rail, Wall Mount
  • Protection Rate: IP40

Power Characteristics

  • Input Voltage:
    • W: Redundant Dual Input: 12 / 24 / 48 VDC (9 ~ 56V)
    • H: Redundant Dual Input: 100 ~ 300 VDC or 90 ~ 264 VAC*
  • Power Cosumption: 12.72W

Power over Ethernet Sourcing Characteristics

  • Enabled PoE Ports: 8 ports (-U8 models)
  • Max PoE Power Budget: 300W
  • Max PoE Sourcing Ports: 8 ports up to PoE++ (90W)

Certifications

  • Power Substation:
    • IEC 61850-3 (Including 6.10.3 Seismic test)
    • IEEE 1613
  • Railway:
    • EN 50155

Regulatory Approvals

  • EMC:
    • EN 50121-1: 2017
    • EN 50121-3-2: 2016 + A1: 2019
    • EN 50155: 2021, Clause 13.4.9
    • EN 61000-3-2: 2014, Class A
    • EN IEC 61000-3-2: 2019 + A2: 2024, Class A
    • EN 61000-3-3: 2013 + A2: 2021 + AC: 2022
    • EN 61000-4-2: 2009
    • EN IEC 61000-4-3: 2020
    • EN 61000-4-4: 2012
    • EN 61000-4-5: 2014 + A1: 2017
    • EN IEC 61000-4-6: 2023

Software

HSR / PRP*

  • IEC 62439-3 HSR / PRP Seamless Redundancy Protocol (recovery time=0ms)
  • PTP (IEEE 1588v2) over HSR / PRP support

Power Substation*

  • IEC 61850-90-4 MMS Server for SCADA integration
  • IEC 61850 QoS traffic prioritization (GOOSE, SV, R-GOOSE, R-SV)

Precision Time Protocol (PTP)*

  • IEEE 1588v2 Transparent Clock (E2E / P2P) One-step / Two-step
  • IEEE 1588v2 Boundary Clock
  • IEEE 1588v2 Ordinary Clock
  • Profile: Default (IEEE 1588 v2)
  • IEEE C37.238-2017 (Power Utility Profile)
  • IEC / IEEE 61850-9-3 & IEEE C37.238-2011

TSN Features*

  • IEEE 802.1AS-2020 gPTP (Bridge / End-Station)
  • IEEE 802.1Qbv Time Aware Scheduling
  • IEEE 802.1CB Seamless Redundancy (FRER)

Industrial Automation*

  • Modbus / TCP (master / slave heartbeat)
  • PROFINET IO (NRT / RT)
  • EtherNet / IP
  • IEC 60870-5-104
  • BACnet / IP

Management

  • NETCONF / RESTCONF with YANG*
  • Web GUI
  • CLI with context-sensitive help
  • LLDP
  • LLDP-MED
  • Console port (USB Type-C)
  • Front panel LEDs (PSU / PoE / fault)
  • USB storage for firmware / config backup & distribution
  • Recessed reset button
  • Flow control (802.3x)
  • REST API / OpenAPI
  • CDP
  • FTP / FTP-SSL / SFTP

IP Stack

IPv4 + IPv6 dual stack, ICMP

IPv4 Features*

  • ECMP routing
  • Static unicast and multicast routes

IPv6 Features

  • IPv6 hardware ACLs
  • Static unicast routing*

SNMP

  • SNMP v1 / v2c / v3, Trap
  • SNMPv3 USM / TSM
  • RFC2819 RMON 1,2,3,9 / MIB II / IF-MIB / Bridge / Q-BRIDGE / LAG / LLDP-EXT / Private MIB

Multicasting Features

  • IGMP snooping with fast leave
  • MLDv2 / MLD snooping
  • GMRP / GARP

VLAN

  • GVRP
  • VLAN stacking / Q-in-Q
  • 802.1Q tag VLAN 4K, VLAN ID 1-4094
  • Port-based VLAN

QoS

  • 8 priority queues, SP / WRR / mixed scheduling
  • DiffServ / IP precedence marking (L2 / L3 / L4)
  • Policy-based QoS (VLAN / port / MAC / classifier) and traffic shaping
  • Policy-based storm protection
  • Taildrop queue congestion control

Resiliency

  • ITU-T G.8032 ERPS
  • LACP
  • Loop detection and thrash limiting
  • MRP (Manager / Client)
  • MSTP / RSTP
  • STP root guard
  • xSTP

Services

  • DNS client
  • DNS / DNSv6 relay
  • DHCP client / server / relay
  • DHCPv6 server / relay
  • HTTP / 1.1
  • NTP Client (IPv4 / IPv6)
  • NTP Server
  • SNTP server / client
  • SMS / SMTP*
  • SSHv2
  • TELNET
  • TFTP

Reliability

  • Protection circuits / redundant power input
  • Environmental monitoring (temperature / voltage)

Diagnostic

  • Link flap detection / port shutdown
  • Syslog over IPv4
  • Optical DDM
  • Ping IPv4 / IPv6
  • Port mirroring (4 Rx analyzer / 1 Tx analyzer)
  • VLAN mirroring (RSPAN)
  • TraceRoute IPv4 / IPv6
  • Copper cable test / TDR
  • Signal contact (relay output)
  • SFP management
  • Snapshot configuration
  • Self test on cold start
  • Event logging

Config

  • Readable text config import / export
  • Backup / restore via HTTP / HTTPS / FTP / FTP-SSL / SFTP / TFTP

Security

  • AAA
  • Auth-fail / guest VLAN
  • Management ACL (remote admin)
  • BPDU protection
  • DHCP snooping / IP source guard / DAI
  • DoS attack blocking
  • HTTPS
  • MAC filtering / lockdown
  • MACsec GCM-AES-128 / 256*
  • Password protected bootloader
  • Port-based learn limit
  • Strong password / Login Policy
  • TACACS+ authentication and accounting
  • Two-authentication: MAC-based and IEEE 802.1X
  • Trust access control (PACC)
  • Port Security (Static Port Lock)
  • RADIUS / TACACS+ authentication
  • IEC 62443-4-2 SL2*
  • IEEE 802.1X

Firmware

  • Upgrade via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP
  • Dual Image

Dual Homing

Two separate uplink paths

Rate Limit

  • Bi-directional Rate limit in percentage (Ingress and Egress)
  • Ingress packet-type combination (BC / MC / UC)
  • Egress traffic shaping

ACL

  • L2 / L3 (IPv4 / IPv6)/L4 filtering, classification by MAC / IP / port / VLAN
  • Bi-directional ACL (ingress + egress)
  • VLAN-based ACL
  • IMPB (IP-MAC-Port Binding)

Layer 3 Routing

  • Static routing / Inter-VLAN routing*
  • RIPv1 / v2*
  • RIPng*
  • OSPFv2*
  • OSPFv3*
  • DVMRP*
  • PIM-SM*
  • PIM-DM*
  • PIMv6*
  • VRRP / VRRPv3*
  • IGMP v1 / v2 / v3, MLD v1 / v2
  • NAT*

Time Sync

Daylight Saving Time

Switching*

Stacking

Train Communication*

  • TTDP
  • TTDP MultiECN
  • TTDP R-NAT
* means optional. Order by request.

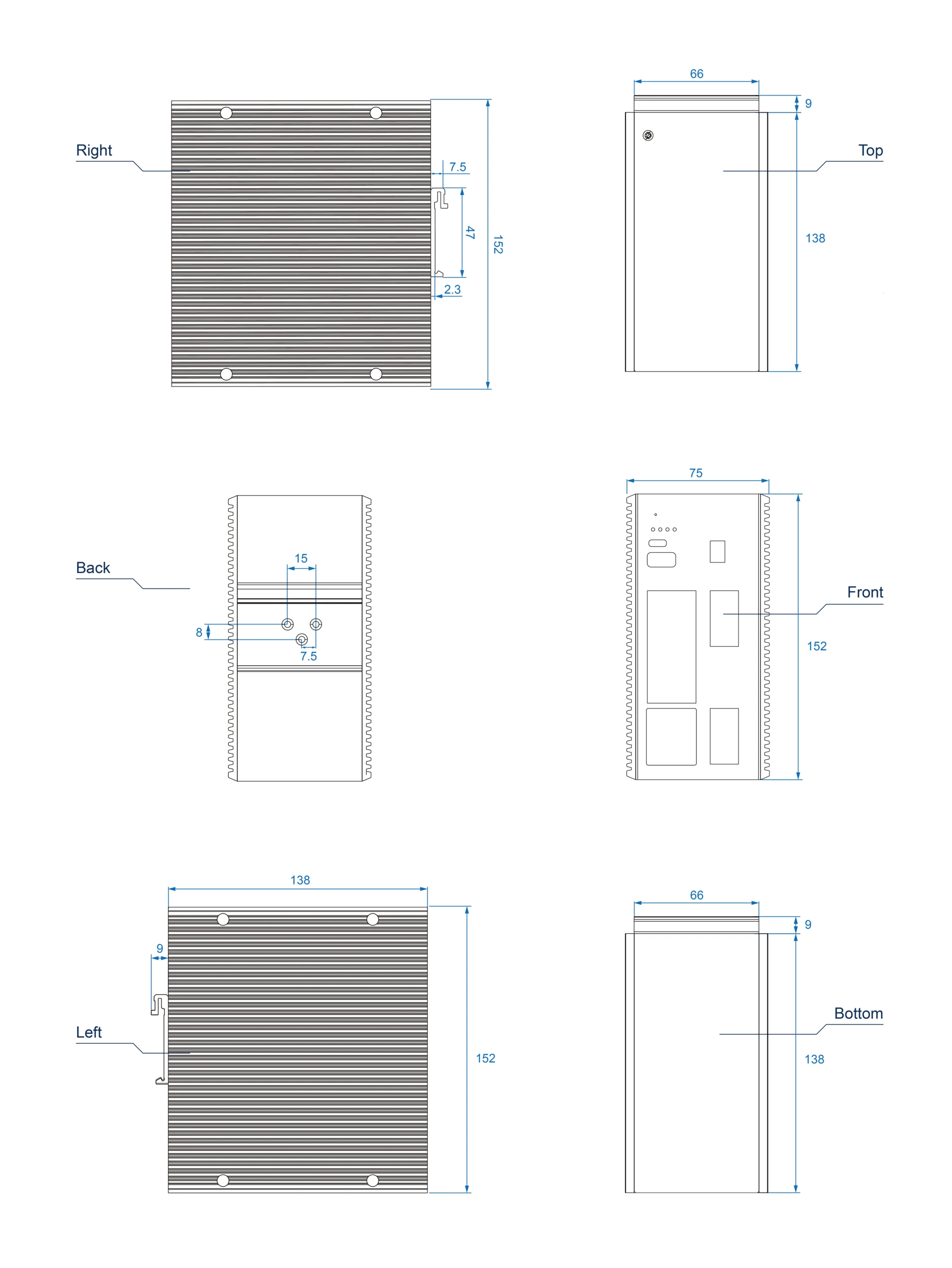

Dimensions

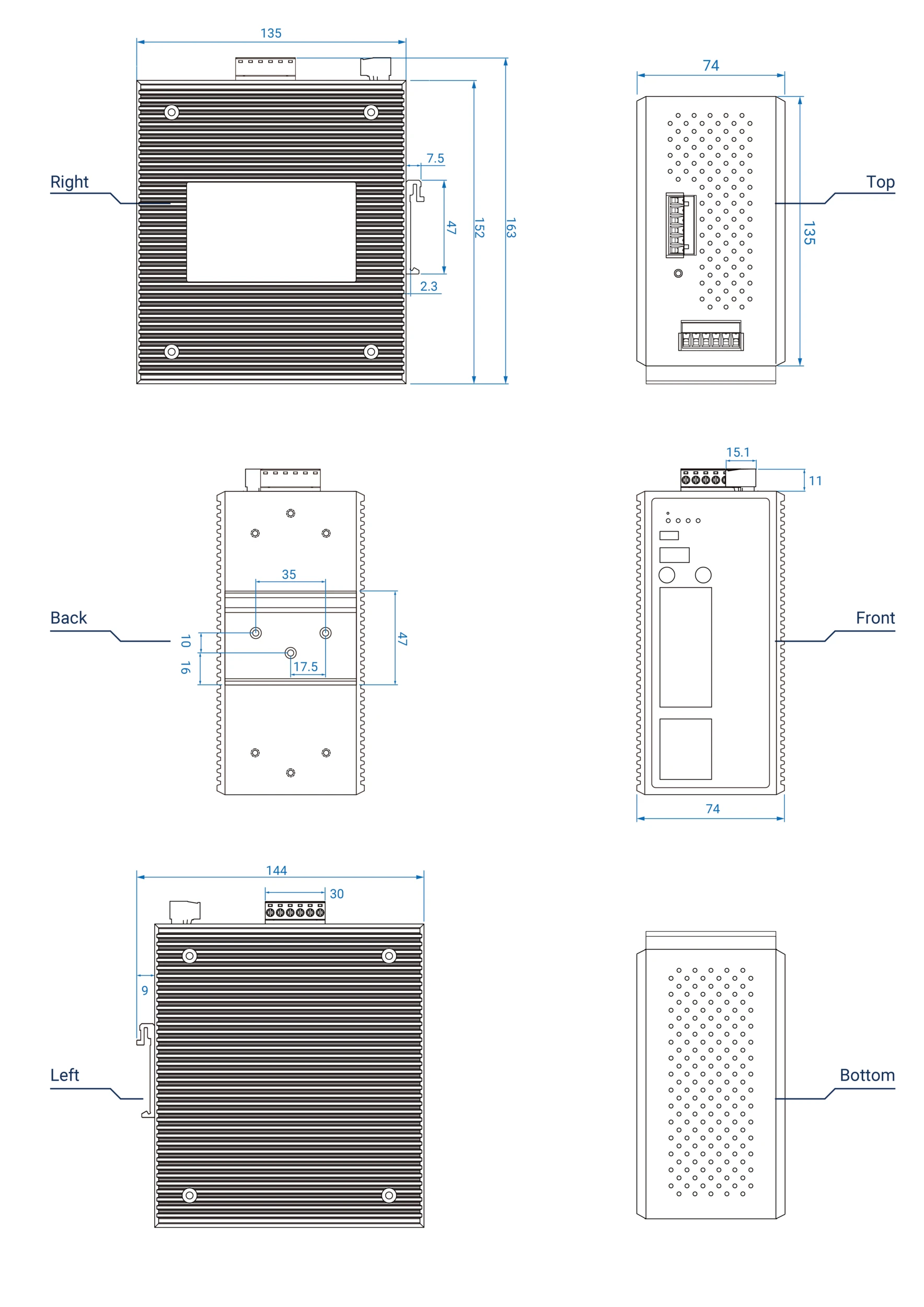

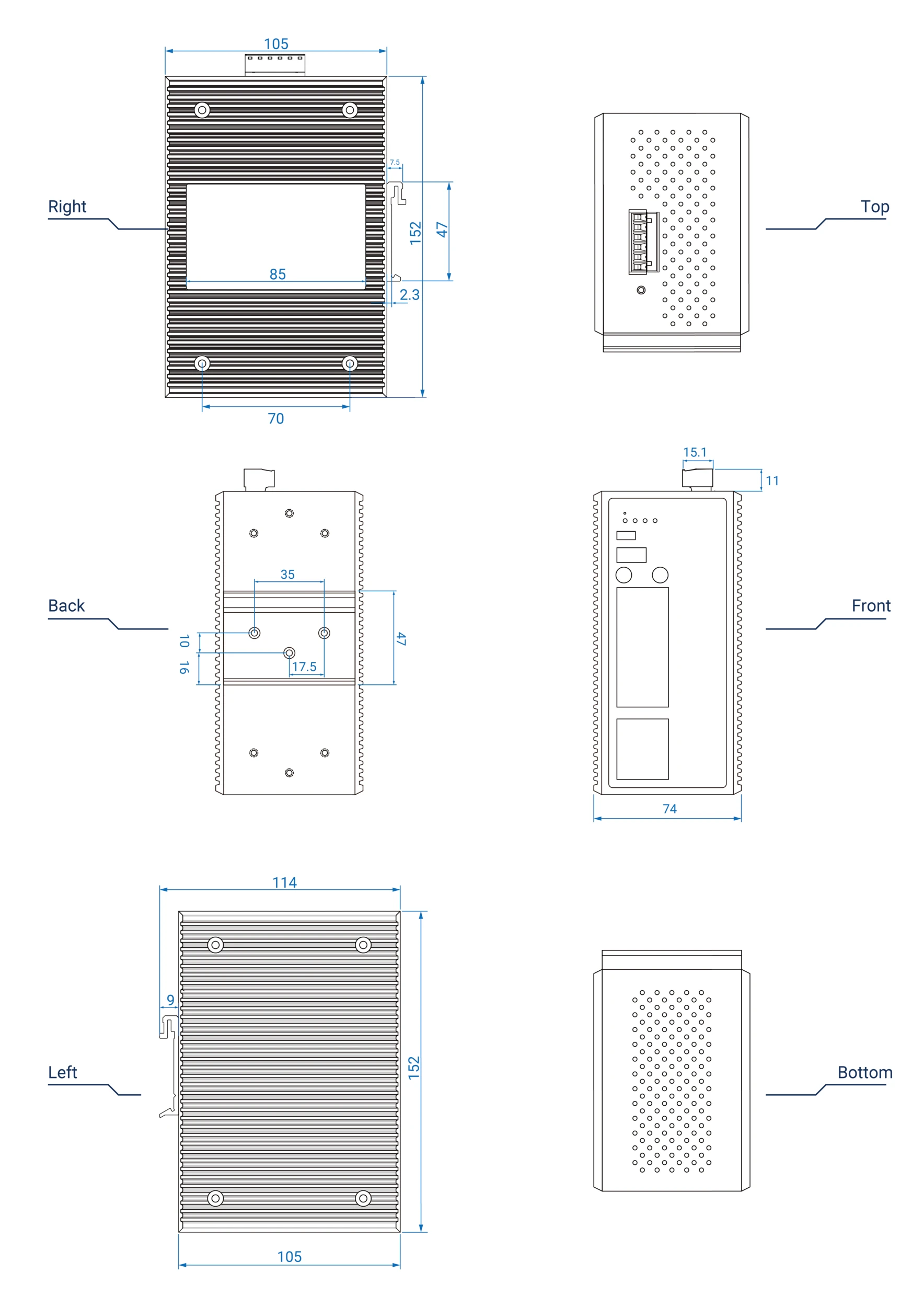

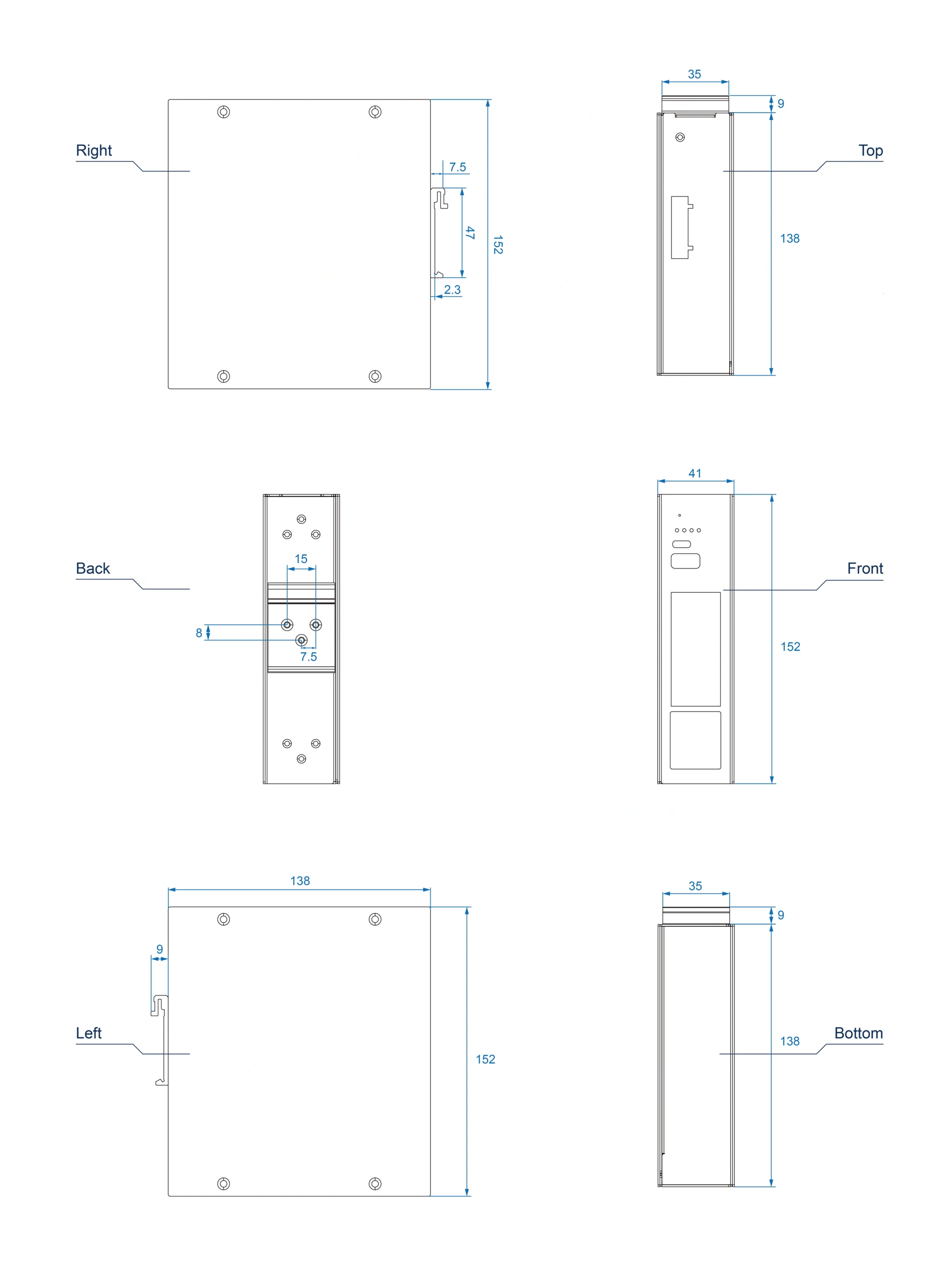

Dimensions diagrams of this device.
Dimensions diagrams of this device.
Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
Latest The datasheet of DTS-8G(P)-4X Download

Order Information

P/N Model Name Description

DTS-8G-4X_I_W

DTS-8G-4X

-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 12/24/48 VDC (9 ~ 56V)

DTS-8G-4X_I_H

DTS-8G-4X

-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 100 ~ 300 VDC or 90 ~ 264 VAC

DTS-8GP-4X_U8_I_W

DTS-8GP-4X

-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 12/24/48 VDC (9 ~ 56V), PoE per-port up to 90W with power budget up to 300W

License Order Information

License Name Availability/Type Features Included
HSR/PRP Optional (Available upon request)
  • IEC 62439-3 HSR/PRP Seamless Redundancy Protocol (recovery time=0ms)
  • PTP over PRP/HSR support
IEC 61850 Optional (Available upon request)
  • IEC 61850-90-4 MMS Server for SCADA integration
  • IEC 61850 QoS traffic prioritization (GOOSE, SV, R-GOOSE, R-SV)
PTP-POWER Optional (Available upon request)

PTP Power Profiles:

  • IEEE C37.238-2017 (Power Utility Profile)
  • IEC/IEEE 61850-9-3 & IEEE C37.238-2011
PTP-TC Optional (Available upon request)

IEEE 1588v2 Default Profile supporting Transparent Clock (TC):

  • End-to-End (E2E) & Peer-to-Peer (P2P)
  • 1-step and 2-step clock operations
PTP-BC Optional (Available upon request)
  • IEEE 1588v2 Boundary Clock
PTP-OC Optional (Available upon request)
  • IEEE 1588v2 Ordinary Clock
PTP-GPTP Optional (Available upon request)
  • IEEE 802.1AS-2020 gPTP (Bridge / End-Station)
TSN-QBV Optional (Available upon request)
  • IEEE 802.1Qbv Time Aware Scheduling
TSN-CB Optional (Available upon request)
  • IEEE 802.1CB Seamless Redundancy (FRER)
MODBUSTCP Optional (Available upon request)
  • Modbus / TCP (master / slave heartbeat)
PROFINET Optional (Available upon request)
  • PROFINET IO (NRT / RT)
ETHERNETIP Optional (Available upon request)
  • EtherNet / IP
IEC 60870 Optional (Available upon request)
  • IEC 60870-5-104
BACNETIP Optional (Available upon request)
  • BACnet / IP
NETCONF Optional (Available upon request)
  • NETCONF / RESTCONF with YANG
L3L Optional (Available upon request)
  • ECMP routing, Static unicast and multicast routes for IPv4, Static unicast routing for IPv6, Static routing / Inter-VLAN routing, VRRP / VRRPv3
Cloud Optional (Available upon request)
  • SMS/SMTP
MACSEC Optional (Available upon request)
  • MACsec GCM-AES-128 / 256
L3 Optional (Available upon request)
  • RIPv1 / v2, RIPng, OSPFv2, OSPFv3, DVMRP, PIM-SM, PIM-DM, PIMv6
NAT Optional (Available upon request)
  • NAT
Stacking Optional (Available upon request)
  • Stacking
TTDP Optional (Available upon request)
  • TTDP
TTDP MultiECN Optional (Available upon request)
  • TTDP MultiECN
TTDP R-NAT Optional (Available upon request)
  • TTDP R-NAT
IEC 62443-4-2 Optional (Available upon request)
  • IEC 62443-4-2 Security Level 2 (SL2) Compliance Pack
