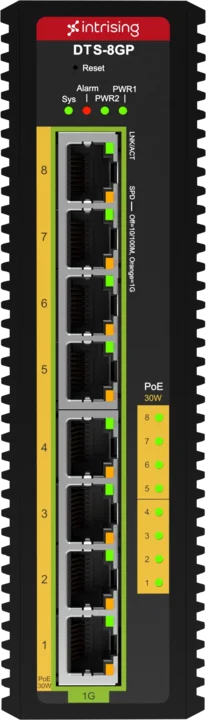

Photo of the product DTS-8G(P)

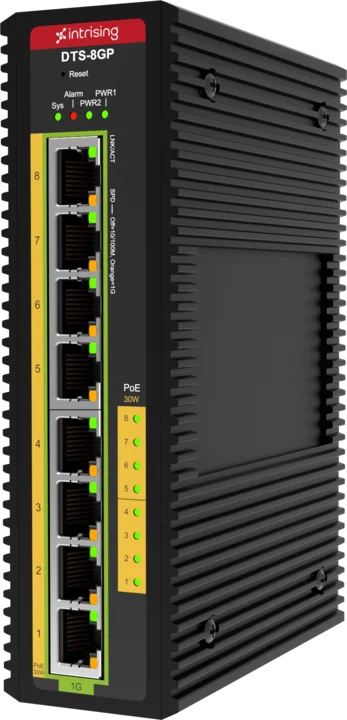

Photo of the product DTS-8G(P)

DTS-8G(P)

Industrial 8 ports PTP & PRP/HSR/TSN Managed Switch

  • Redundancy Protocols
    • ITU-T G.8032 ERPS Ring (<20ms)
    • xSTP, DRP, and MRP (Manager/Client) Redundancy Protocol
  • Precision Time Protocol (PTP)
    • IEEE 1588v2 End-to-End/Peer-to-Peer, 1step/2-step TC/BC/OC
    • 802.1AS-2020 (gPTP) Bridge/End-Station
    • IEC 61950-9-3 and IEEE C37.238-2017 Power Profile
    • Nanosecond-level (ns) Accuracy
    • 1 PPS for Synchronize with External Timing Equipment (optional)
  • Power Substation Certifications
    • IEC 61850-3 (Including 6.10.3 Seismic test)
    • IEEE 1613
  • HSR/PRP
    • IEC 62439-3 HSR/PRP Seamless Redundancy Protocol (=0ms)
    • IEC 61850-90-4 MMS Server for Switching Data with SCADA
  • Automation Protocols
    • EtherNet/IP, Modbus TCP, PROFINET, IEC 60870-5-104
  • Time-Sensitive Networking (TSN)
    • 802.1Qav/802.1Qbv/802.1Qbu/802.3br
    • 802.1Qci/802.1CB/802.1Qch
* means optional. Order by request.

Hardware

RJ45 Copper Ports
  • Port Number: 8
  • Speed: 10 / 100 / 1000 Mbps
  • MDI / MDIX Auto-crossover: Support straight or cross wired cables
  • Auto-negotiation / Duplex: 10 / 100 / 1000 Mbps speed auto-negotiation; Full & Half Duplex

Capacity
  • Mac Address: 32K
  • Packet Buffer: 24Mbits
  • Jumbo Frame: 10K
  • Backplane / Switching Fabric: 50Gbps
  • Trunk Group: 8
  • Priority Queues: 8
  • VLAN Table: 4096
  • VLAN ID Range 1 to 4094
  • Static IGMP Groups: 256
  • Dynamic IGMP Groups: 1K

Interfaces
  • LED Indicators:
    • System: PWR1 (Green), PWR2 (Green), Alarm (Red), Sys (Green)
    • RJ-45 Port: LNK/ACT (Green), SPD 10 / 100M (Off), SPD 1G (Orange)
    • PoE Model: PoE (Green)
  • Console: RS232 (RJ45 connector)
  • DI / DO:
    • 2 Digital Input (DI): Level 0: -30 ~ 2V / Level 1: 10 ~ 30V Max input current:8mA
    • 2 Digital Output (DO): Open collector to 40 VDC, 200mA
  • Relay Output: Current carry ability 1A@24VDC
  • Reset Button: Yes

PoE (PoE Model)
  • PoE Ports: Max 30W per-port: support IEEE 802.3at / af End-point, Alternative A mode
  • PoE Budget:
    • 240W (Standard and HV Model)
    • 120W (24V model)
    • 80W (12V model)
  • PoE Pin Assignment:
    • Positive (VCC+): RJ-45 pin 1,2
    • Negative (VCC-): RJ-45 pin 3,6

Input Voltage
  • Standard Model:
    • Dual input for 44V ~ 56VDC (Standard model)
    • Dual input for 9V ~ 36VDC (24V model)
    • Dual input for 9.5V ~ 56VDC (12V model)

Power
  • Connector: 6-Pin Terminal Block
  • Power Consumption: Max. 27W (full load w / o PoE)

Environmental Limits
  • Operating Humidity: 5% ~ 95% (Non-condensing)
  • Operating Temperature:
    • -20°C ~ 60°C / -4°F ~ 140°F (Standard model)
    • -40°C ~ 75°C / -40°F ~ 167°F (I model)
  • Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F

Physical Characteristics
  • Housing: Metal case. IP-30
  • Dimension: 43 (W) x 105 (D) x 152 (H) mm
  • Weight: 900g
  • Installation: DIN Rail, Wall Mount

Regulatory Approvals
  • MTBF: 586082.5 hours
  • EMC:
    • FCC Part 15, Subpart B, Class A
    • ICES-003 Issue 7-2020
    • EN55032:2015 / A11:2020
    • EN55035:2017 / A11:2020
    • EN 61000-3-2:2014
    • EN 61000-3-3:2013
    • IEC 61000-4-2:2008
    • IEC 61000-4-3:2020
    • IEC 61000-4-4:2012
    • IEC 61000-4-5:2014 + AMD1:2017 CSV
    • IEC 61000-4-6:2013 / COR1:2015
    • IEC 61000-4-8:2009
    • IEC 61000-6-2:2016
    • IEC 61000-6-4:2018
    • EN IEC 61000-6-2:2019
    • EN IEC 61000-6-4:2019
    • IEC 61000-4-11:2020
    • UL / CSA 60950-1
    • EN 60950-1
    • CB to IEC 60950-1
  • Stability: |
    • IEC 60068-2-32 (Free fall)
    • IEC 60068-2-27 (Shock)
    • IEC 60068-2-6 (Vibration)

Certifications
  • 'Power Substation':
    • IEC 61850-3 (Including 6.10.3 Seismic test)
    • IEEE 1613

Warranty
  • Warranty: 5 years

Software

Precision Time Protocol
  • Default Profile: IEEE 1588v2 End-to-End / Peer-to-Peer TC / BC / OC
  • Industrial / Automation Profile: 802.1AS-2020 (gPTP) Bridge / End-Station
  • Power Profile: IEC 61850-9-3 and IEEE C37.238-2017

Time-Sensitive Networking (TSN)
  • TSN: Full function support: 802.1Qav / 802.1Qbv / 802.1Qbu / 802.3br / 802.1Qci / 802.1CB / 802.1Qch

HSR / PRP
  • Seamless (0=ms): IEC 62439-3 HSR / PRP

Industrial Automation
  • Protocols: EtherNet / IP, Modbus TCP, PROFINET, IEC 60870-5-104

Layer 3 IPv4 / 6 Routing (IPv6 Ready)
  • Static routing / Inter VLAN routing
  • Policy based routing*
  • Unicast routing RIPv1 / v2, OSPFv1 / v2, BGP4*, RIPng, OSPFv3*, BGP4+* , ISIS*, and BEIGRP*
  • MPLS: MP-BGP*, VRF*
  • Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6
  • Redundant VRRP, VRRPv3*
  • VRRP Load Balancing*
  • Supports IGMP v1 / v2 / v3, MLD v1 / v2
  • BFD (Bidirectional Forwarding Detection)*
  • Floating static route for failover*
  • Configurable maximum active routing rules

NAT (Network Address Translation)
  • Hardware NAT translations: Wire-speed performance
  • One-to-One NAT
  • Port Forwarding
  • Dynamic NAT
  • Port Overload (PAT-Port Address Translations): TCP Timeout (sec.) UDP Timer (sec.)
  • Port Mapping Protocol*
  • ALG (Application Level Gateway)*

MACsec
  • 128-bit and 256-bit cipher suites (GCM-AES-256)

Link Aggregation
  • Static & Dynamic aggregation (IEEE 802.3ad LACP)
  • Maximum 8 groups (LAGs) and max 8 member ports per LAG

Broadcast / Multicast / Unicast Storm Suppression
  • Storm suppression based on port bandwidth percentage & PPS*

MAC Address Table
  • Static & Blackhole MAC address
  • MAC learning limit

VLAN
  • IEEE 802.1Q Tag VLAN (up to 4094 VLANs)
  • Port-based VLAN (up to 4094 VLANs)
  • Protocol-based / IP subnet-based / MAC-based VLAN
  • QinQ (double-tag VLAN)
  • VLAN Mapping (VLAN Translation)
  • Voice VLAN
  • GVRP
  • ISM VLAN (MVR)*
  • MVRP

Spanning Tree
  • Support STP / RSTP / MSTP
  • BPDU Guard and Root Guard

Loop Protect
  • Loopback detection and prevention

ERPS

ITU G.8032 Ethernet ring protection switching (ERPS)

DRP

Supports DRP

MRP

Supports Manager / Client Redundancy

DNS
  • DNS Client
  • DNS Server
  • DNS Proxy

DHCP
  • DHCP Client including option 66
  • DHCP Snooping
  • DHCP Relay including option 82
  • DHCP Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port

Mirroring
  • Local port mirroring: Ingress, Egress or both direction per port
  • Remote port mirroring: RSPAN

Quality of Service
  • Port-based priority with 802.1p CoS priority override
  • 802.1p CoS priority and IPv4 DSCP priority
  • 8 Hardware queues per port
  • Flexible queue scheduling algorithms including SP, WRR, and SP + WRR and Weighted Deficit Round Robin (WRR)
  • Time-Based QoS
  • QoS on Routing

Bandwidth Control (Rate Limit)
  • Bi-directional Rate limit in percentage (Ingress and Egress)
  • In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed
  • Traffic shaping in egress
  • Flow-based bandwidth management*

ACL
  • Layer 2, Layer 3 (IPv4 / IPv6), Layer 4 packet filtering
  • Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN
  • Bi-directional ACLs (Ingress and Egress)
  • Time range-based ACLs
  • VLAN-based ACL issuing

Discovery Protocol
  • Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)

Multicast
  • IGMP Querier v1 / v2 / v3
  • IGMP Snooping v1 / v2 / v3 and MLD Snooping v1 / v2
  • IGMP Proxy

Security
  • Hierarchical user management and password protection
  • Supports up to 10 IP addresses to access the switch
  • HTTPS for secure access to the web interface
  • SSH 2.0 for secure shell to command line interface
  • MAC-based authentication
  • 802.1X
  • 802.1X with VLAN assignment
  • 802.1X dynamic access control list (ACL) based on RADIUS attributes
  • RADIUS and TACACS+ Authentication
  • Guest VLAN
  • Support Port Isolation
  • AAA authentication (PAP, CHAP, MS-CHAP)
  • Dynamic ARP Inspection
  • DoS Protection for SYN flood, SSH attack, HTTP / HTTPS attack, and port scan prevention
  • Unicast Reverse Path Forwarding (uRPF)*

SNMP & MIB
  • SNMP v1 / v2c / v3 and Trap
  • SNMP v1 / v2 providing light security by means of the community strings
  • SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM)
  • Remote Monitoring (RMON) alarm, event, and history recording
  • Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9
  • RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB

IP Stack for Managed Interface
  • Both IPv4 and IPv6 stack simultaneously

IPv6 for Managed Interface
  • Neighbor Discovery (ND)
  • IPv6 PMTU
  • IPv6 FIB
  • IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP
  • DHCP Client for IPv6

IPv6 Transition*
  • NAT-PT
  • 4over6
  • IPSec v6
  • GRE
  • 6to4
  • ISATAP

Configuration Import and Export
  • Readable text configuration file for system quick installation
  • Supports HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file
  • Rollback Config*

Firmware
  • Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP
  • Dual Image

Monitoring

CPU monitoring, Memory monitoring, Environmental monitoring

Management
  • Support CLI via SSH 2.0, Telnet and Console
  • System log, alarming based on severity
  • WEB UI management through HTTP / HTTPs
  • NTP, SNTP
  • Ping, Tracert
  • TFTP Server
  • TFTP, FTP Client
  • Secure Copy Protocol (SCP) Client
  • Netflow*
  • IP SLA* for best path selection, or for evaluating like delay, latency, jitter, packet loss
  • ARP Table

Zero Touch
  • PXE
  • Auto provision

Remote Management
  • NETCONF*/YANG*
  • RESTful API

DHCP for IPv6
  • DHCPv6 Client including option 66
  • DHCPv6 Snooping
  • DHCPv6 Relay including option 18 / 37
  • DHCPv6 Server
    • MAC-based can assign IP address by specific host
    • Port-based can assign IP address by specific port
      'VPN And Tunnel*': |
    • IPS
    • L2TP
    • PPTP
    • GRE
    • IKE
    • VxLAN
    • L2VPN
    • L3VPN
      'WAN Protocol*': |
    • PPP and PPPoE (Client / Serv)
    • PPP Bridge
    • VTI Tunnel
      'Dying Gasp*': 'Sending the alarm message when power failures'
      'OAM'*: |
    • 802.3ah link layer remote loopback and discovery
    • IEEE 802.1ag CFM (Connectivity Fault Management) protocols
      'Unidirectional Link Detection (UDLD)': 'For preventing abnormal link between switches, such as fiber breaks in one direction'
* means optional. Order by request.

Dimensions

Dimensions diagrams of this device.

Downloads

Type Version Description Download
Datasheet
 Latest The datasheet of DTS-8G(P) Download

Order Information

Model Name P/N Description
DTS-8GP DTS-8GP

Dual 44 ~ 56VDC input
-20°C ~ 60°C / -4°F ~ 140°F
PoE per-port up to 30W; PoE total budget 240W
DTS-8GP DTS-8GP-24V

Dual 9 ~ 36VDC input
-20°C ~ 60°C / -4°F ~ 140°F
PoE per-port up to 30W; PoE total budget 120W
DTS-8GP DTS-8GP-12V

Dual 9.5V ~ 56VDC input
-20°C ~ 60°C / -4°F ~ 140°F
PoE per-port up to 30W; PoE total budget 80W
DTS-8GP DTS-8GP-I

Dual 44 ~ 56VDC input
-40°C ~ 75°C / -40°F ~ 167°F
PoE per-port up to 30W; PoE total budget 240W
DTS-8GP DTS-8GP-24V-I

Dual 9 ~ 36VDC input
-40°C ~ 75°C / -40°F ~ 167°F
PoE per-port up to 30W; PoE total budget 120W
DTS-8GP DTS-8GP-12V-I

Dual 9.5V ~ 56VDC input
-40°C ~ 75°C / -40°F ~ 167°F
PoE per-port up to 30W; PoE total budget 80W
DTS-8G DTS-8G

Dual 44 ~ 56VDC input
-20°C ~ 60°C / -4°F ~ 140°F
DTS-8G DTS-8G-24V

Dual 9 ~ 36VDC input
-20°C ~ 60°C / -4°F ~ 140°F
DTS-8G DTS-8G-12V

Dual 9.5V ~ 56VDC input
-20°C ~ 60°C / -4°F ~ 140°F
DTS-8G DTS-8G-I

Dual 44 ~ 56VDC input
-40°C ~ 75°C / -40°F ~ 167°F
DTS-8G DTS-8G-24V-I

Dual 9 ~ 36VDC input
-40°C ~ 75°C / -40°F ~ 167°F
DTS-8G DTS-8G-12V-I

Dual 9.5V ~ 56VDC input
-40°C ~ 75°C / -40°F ~ 167°F
