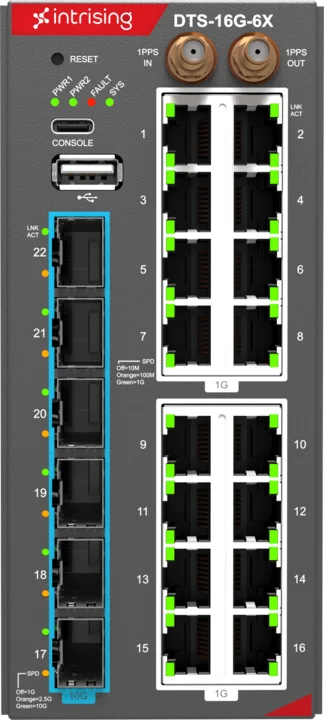

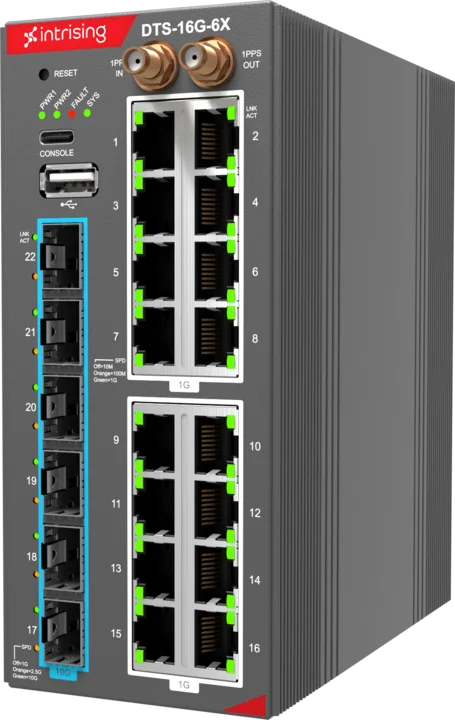

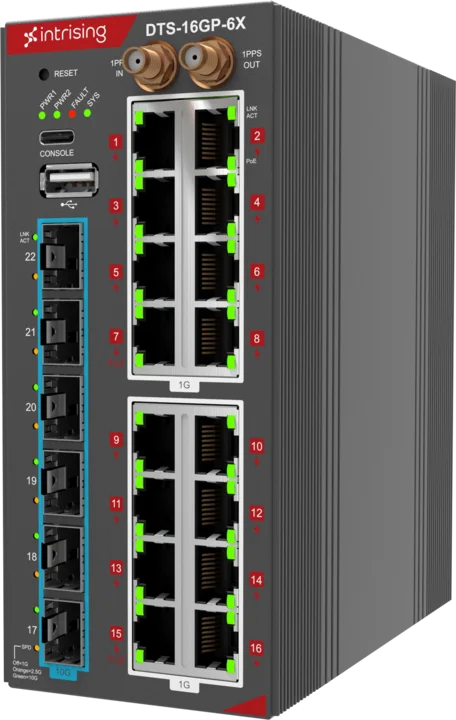

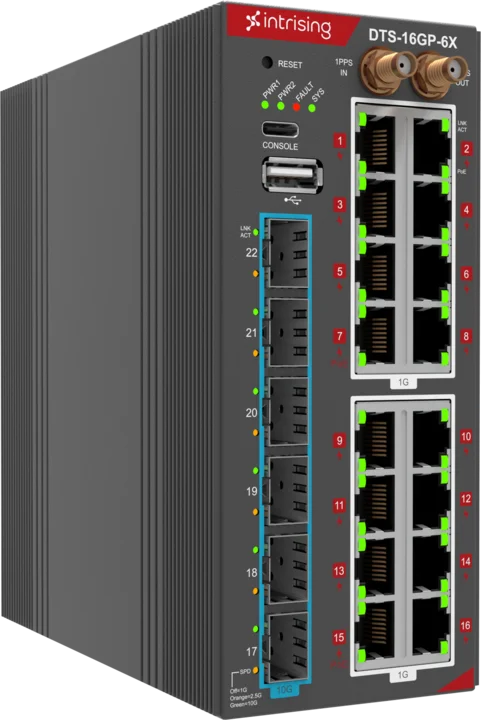

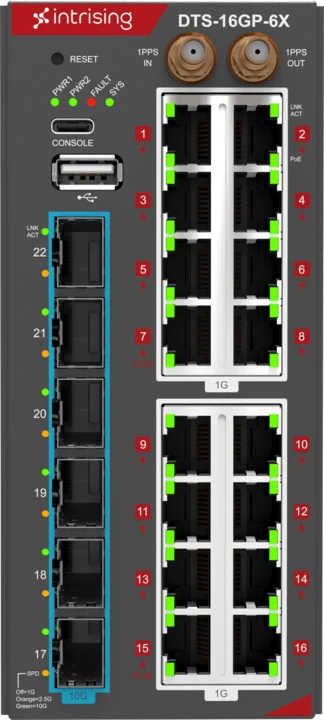

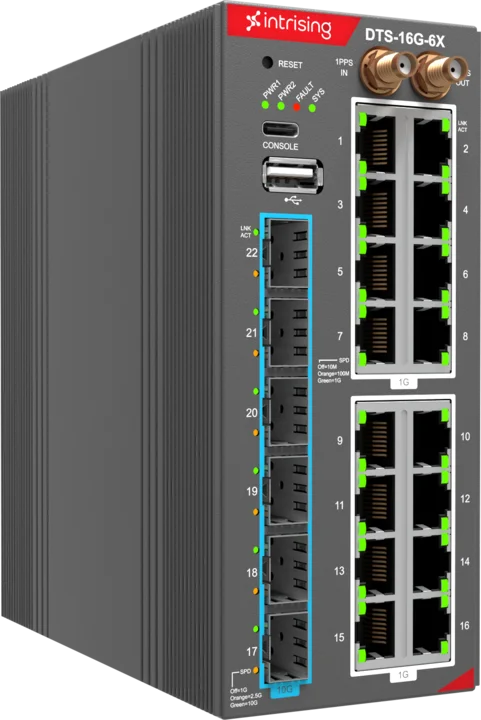

DTS-16G(P)-6X

Industrial 16G+6x10G TSN Managed PoE Switch

Redundancy Protocols
- ITU-T G.8032 ERPS Ring (<20ms)
- MRP (Manager/Client) Redundancy Protocol
Precision Time Protocol (PTP)
- IEEE 1588v2 End-to-End/Peer-to-Peer, 1step/2-step TC/BC/OC
- IEEE 802.1AS-2020 (gPTP) Timing and Synchronization
- IEC 61950-9-3 and IEEE C37.238-2017 Power Profile
- Nanosecond-level (ns) Accuracy
Automation Protocols
- EtherNet/IP, Modbus TCP, PROFINET, IEC 60870-5-104, BACnet/IP
Time-Sensitive Networking (TSN)
- 802.1Qav/802.1Qbv/802.1Qbu/802.3br
- 802.1Qci/802.1CB
Substation Solutions
- IEC 61850-3 (Including 6.10.3 Seismic test)
- IEEE 1613
- IEC 62439-3 HSR/PRP Zero-time Recovery
- IEC 61850-90-4 MMS Server for Switching Data with SCADA
- IEC 61850 QoS Priority (GOOSE, SMV)

* means optional. Order by request.

Hardware

Product Specifications	10 / 100 / 1000T RJ-45 Copper Ports: 16 with MACsec and HSR / PRP 1 / 10G SFP+ Ports: 6 with MACsec and HSR / PRP Total Ports: 22 PoE Enabled Ports: 16 (PoE Model) Switching Fabric: 152Gbps
Performance	MAC Address: 16K Priority Queues: 8 Simultaneous VLANs: 4K VLAN ID Range: 1-4094 Jumbo Frames: 10KB L2 jumbo frames Multicast groups: 1,023 (Layer 2 and Layer 3)
Interfaces	LED Indicators: System: PWR1 (Green), PWR2 (Green), FAULT (Red), SYS (Green) RJ-45 Port: LNK/ACT (Green) Fiber Port: LNK/ACT (Green), SPD 1G (Off), SPD 2.5G (Orange), SPD 10G (Green) PoE Model: PoE (Green) Console: USB type C Reset Button: Yes Overload Current Protection: Yes Reverse Polarity Protection: Yes Relay Output: 1x Current carry ability 1A@24VDC
Environmental Specifications	Operating Temperature: -40°C ~ 75°C / -40°F ~ 167°F Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Physical Specifications	Dimension: I_W & U8_I_W: 74 x 138 x 152 mm (2.91 x 5.43 x 5.98 in) I_H: 99 x 138 x 152 mm (3.90 x 5.43 x 5.98 in) Weight: I_W: 1,600 g (3.53 lb) & U8_I_W: 1,810 g (3.99 lb) I_H: 2,091 g (4.61 lb) Enclosure: Aluminum / Stainless Steel Sheet Metal Shell Installation: DIN Rail, Wall Mount Protection Rate: IP41
Power Characteristics	Input Voltage: W: Redundant Dual Input: 12 / 24 / 48 VDC (9 ~ 56V) H: Redundant Dual Input: 88 ~ 300 VDC or 85 ~ 264 VAC*
Power over Ethernet Sourcing Characteristics	Enabled PoE Ports: 16 ports (-U8 models) Max PoE Power: 480W Max PoE Sourcing Ports: 16 ports up to PoE++ (90W)
Certifications	Power Substation: IEC 61850-3 (Including 6.10.3 Seismic test) IEEE 1613 Railway: EN 50155

Software

HSR / PRP	IEC 62439-3 HSR / PRP Seamless Redundancy Protocol (recovery time=0ms) IEC 61850-90-4 MMS Server for Switching Data with SCADA
Layer 3 IPv4 / 6 Routing (IPv6 Ready)	Static routing / Inter VLAN routing Configurable maximum active routing rules Unicast routing RIPv1 / v2, OSPFv1 / v2, RIPng, OSPFv3 Multicast routing DVMRP, PIM-SM, PIM-DM, PIM-SSM, PIMv6 Redundant VRRP, VRRPv3 Supports IGMP v1 / v2 / v3, MLD v1 / v2
Power Substation	IEC 61850-90-4 MMS Server for Switching Data with SCADA IEC 61850 QoS Priority (GOOSE, SMV)
Reliability	Protection circuits against abnormal operations Redundant power input Full environmental monitoring of temperature and internal voltage levels
Industrial Automation	IEEE 1588v2 PTPv2 BC / OC / TC (Nanosecond-level (ns) Accuracy) IEEE 1588 PTP one-step variant IEEE 1588 PTP two-step variant IEEE 1588 PTP End-to-End Transparent Clock IEEE 1588 PTP Peer-to-Peer Transparent Clock IEEE 1588 PTP profile: Default IEEE 1588 PTP profile: Power (IEEEC C37.238 & IEC 61850-9-3) Modbus / TCP with master / slave heartbeats facility PROFINET IO non-real-time and real-time (NRT / RT) EtherNet / IP IEC 60870-5-104 BACnet / IP
TSN Features	IEEE 802.1AS-2020 Timing and Synchronization IEEE 802.1Qbv Time Aware Scheduling IEEE 802.1Qbu Frame Pre-emption / Cut-through IEEE 802.1CB Seamless Redundancy IEEE 802.1Qci Per-Stream Filtering and Policing IEEE 802.1Qav Forwarding and queuing enhancements for time-sensitive streams IEEE 802.3br Interspersing Express Traffic (IET)
Management Features	NETCONF / RESTCONF northbound interface with YANG data modelling Web-based Graphical User Interface (GUI) Industry-standard CLI with context-sensitive help Link Layer Discovery Protocol (LLDP) Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED) SNMPv1 / v2c / v3 support Comprehensive SNMP MIB support for standard based device management Console management port on the front panel for ease of access Front panel LEDs provide at-a-glance PSU status, PoE status, and fault information USB interface allows software release files, configurations, and other files to be stored for backup and distribution to other devices Recessed Reset button
IPv4 Features	Equal Cost Multi Path (ECMP) routing Static unicast and multicast routes for IPv4
IPv6 Features	IPv4 and IPv6 dual stack IPv6 hardware ACLs Static unicast routing for IPv6
Multicasting Features	Internet Group Management Protocol (IGMPv1 / v2 / v3) IGMP snooping with fast leave IGMP query solicitation Multicast Listener Discovery (MLDv1 / v2) MLDv2 for IPv6 MLD snooping IGMP / MLD proxy (multicast forwarding) Protocol Independent Multicast-Dense Mode (PIM-DM) Protocol Independent Multicast-Sparse Mode (PIM-SM)
Virtual LAN Features	Generic VLAN Registration Protocol (GVRP) VLAN stacking, Q-in-Q VLAN translation
Quality of Service	8 priority queues with a hierarchy of high priority queues for real-time traffic, and mixed scheduling, for each switch port IP precedence and DiffServ marking based on Layer 2, 3 and 4 headers Policy-based QoS and traffic shaping Policy-based QoS based on VLAN, port, MAC, and general packet classifiers Policy-based storm protection Strict priority, weighted round robin, or mixed scheduling Taildrop for queue congestion control Wirespeed traffic classification with low latency for real-time streaming media applications
Resiliency Features	Ethernet Ring Protection Switching (ITU-T G.8032 ERPS) Link Aggregation Control Protocol (LACP) Loop detection and thrash limiting Media Redundancy Protocol (MRP) Multiple Spanning Tree Protocol (MSTP) Rapid Spanning Tree Protocol (RSTP) Spanning Tree Protocol (STP) root guard Virtual Router Redundancy Protocol (VRRPv3)
Security Features	Access Control Lists (ACLs) based on layer 3 and 4 headers Authentication, Authorization and Accounting (AAA) Auth-fail and guest VLANs Configurable ACLs for management traffic BPDU protection DHCP snooping, IP source guard and Dynamic ARP Inspection (DAI) DoS attack blocking and virus throttling Dynamic VLAN assignment HTTP over TLS (HTTPS) MAC address filtering and MAC address lockdown MACsec encryption (cipher suite: GCM-AES-128 / 256, GCM-AES-XPN-128 / 256) Password protected bootloader Port-based learn limits (intrusion detection) Secure Copy (SCP) Strong password security and encryption TACACS+ authentication and accounting Tri-authentication: MAC-based, web-based and IEEE 802.1X
Services	Domain Name System (DNS) client and relay DNSv6 client and relay Dynamic Host Configuration Protocol (DHCP) server and relay DHCPv6 server and relay HyperText Transfer Protocol (HTTP / 1.1) Network Time Protocol (NTP) for IPv4 and IPv6 Simple Mail Transfer Protocol (SMTP) Secure Shell (SSHv2 / v3) TELNET Trivial File Transfer Protocol (TFTP)
Diagnostic Tools	Automatic link flap detection and port shutdown Event logging via Syslog over IPv4 Optical Digital Diagnostic Monitoring (DDM) Ping polling for IPv4 and IPv6 Port mirroring No limit on mirrored port Up to 4 mirror (analyzer) ports for received traffic 1 mirror (analyzer) port for transmitted traffic VLAN mirroring (RSPAN) TraceRoute for IPv4 and IPv6

* means optional. Order by request.

Dimensions

Downloads

Type	Version	Description	Download
Datasheet	Latest	The datasheet of DTS-16G(P)-6X	Download

Order Information

P/N	Model Name	Description
DTS-16G-6X_I_W	DTS-16G-6X	-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 12/24/48 VDC (9 ~ 56V)
DTS-16G-6X_I_H	DTS-16G-6X	-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 88 ~ 300 VDC or 85 ~ 264 VAC*
DTS-16GP-6X_U8_I_W	DTS-16GP-6X	-40°C ~ 75°C / -40°F ~ 167°F, Redundant Dual Input 12/24/48 VDC (9 ~ 56V), PoE per-port up to 90W with power budget up to 480W

*	IEC 320, where xx = 10 for US power cord 20 for no power cord 30 for UK power cord 40 for Australian power cord 50 for European power cord
