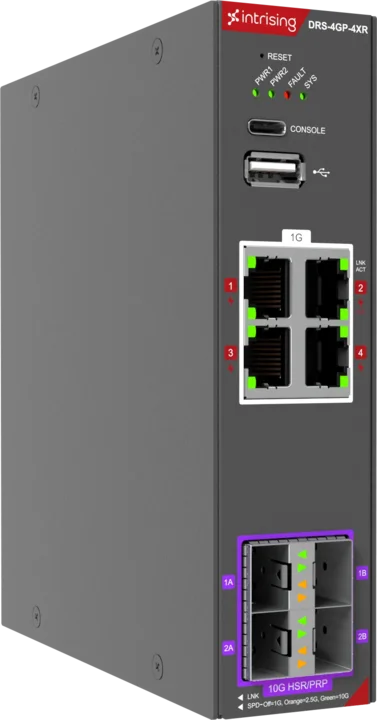

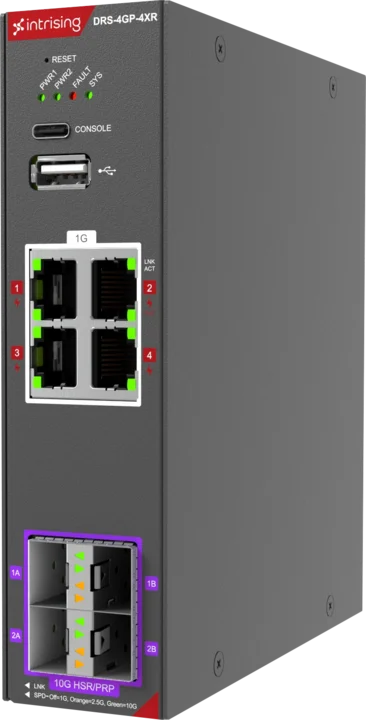

DRS-4G(P)-4XR

• 10 / 100 / 1000T RJ-45 Copper Ports: 4 ports
• 1 / 10G SFP+ Ports: 4 ports as HSR / PRP ports
• Total Ports: 8

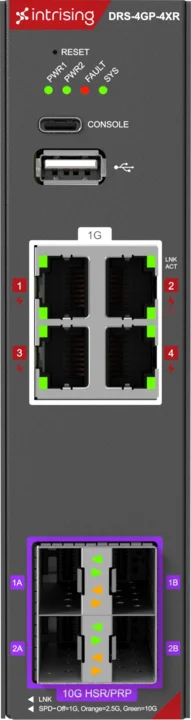

• LED Indicators:
  • System: PWR1 (Green), PWR2 (Green), FAULT (Red), SYS (Green)
  • RJ-45 Port: LNK/ACT (Green)
  • Fiber Port: LNK (Green), SPD 1G (Off), SPD 2.5G (Orange), SPD 10G (Green)
  • PoE Model: PoE (Green)
• Console: USB type C
• Reset Button: Yes
• Overload Current Protection: Yes
• Reverse Polarity Protection: Yes
• Relay Output: 1x Current carry ability 1A@24VDC

• Operating Temperature: -40°C ~ 75°C / -40°F ~ 167°F
• Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F
• Operating Humidity: 5% ~ 95% non-condensing
• Storage Humidity: 5% ~ 95% non-condensing

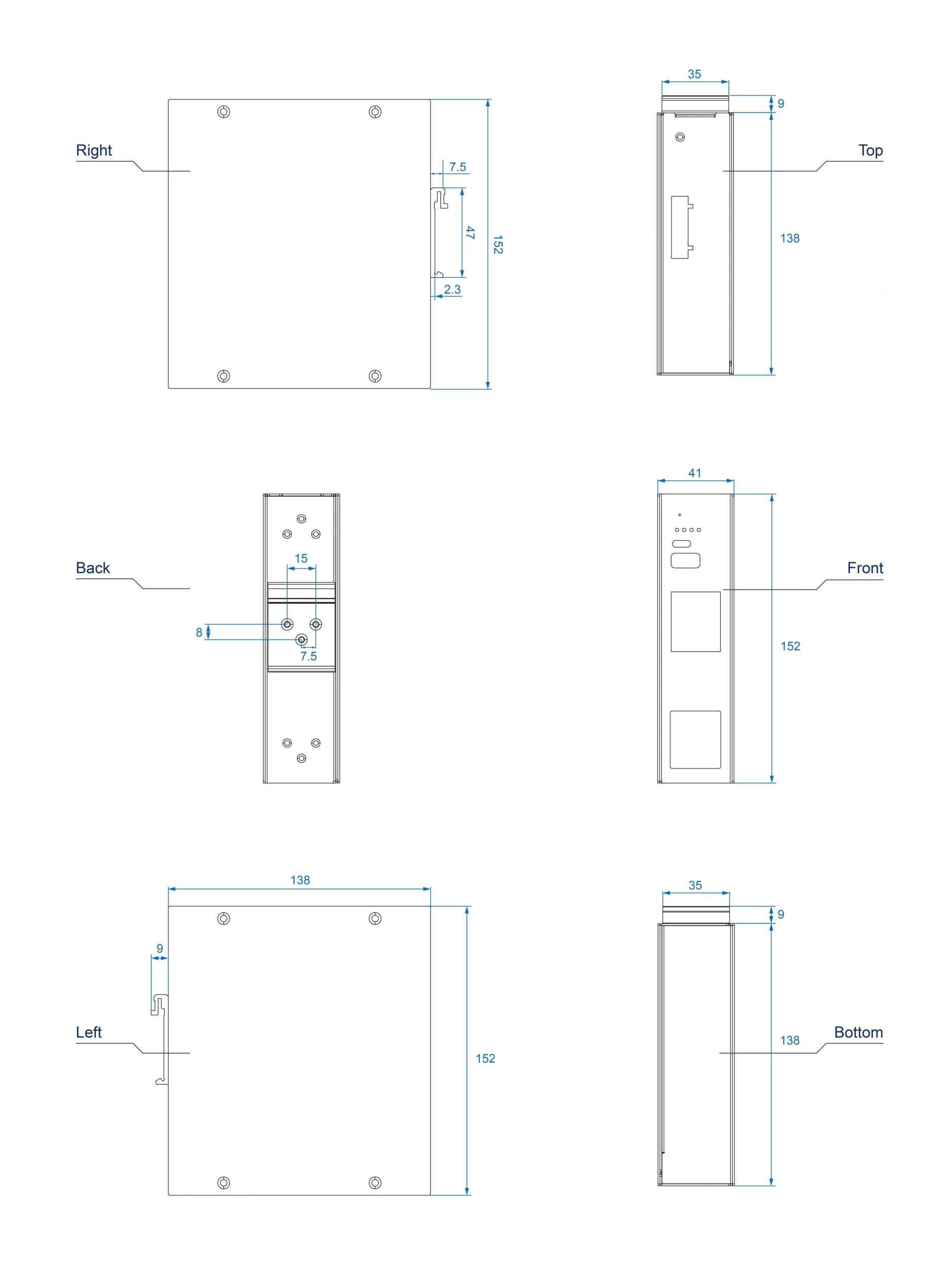

• Dimension: 41 x 138 x 152 mm (1.61 x 5.43 x 5.98 in)
• Weight: 800 g (1.76 lbs)
• Enclosure:
  • Aluminum / Stainless Steel
  • Sheet Metal Shell
• Installation: DIN Rail, Wall Mount
• Protection Rate: IP41

• Input Voltage: Redundant Dual Input: 12 / 24 / 48 VDC (9 ~ 56V)
• Power Consumption: 11.66W

• Enabled PoE Ports: 6 ports
• Max PoE Power: 320W
• Max PoE Sourcing Ports: 6 ports up to PoE++ (90W)

• Basis Standard:
  • CE
  • FCC
• Substation:
  • IEC 61850-3
  • IEEE 1613
• Security:
  • IEC 62443-4-2

Web-interface, Telnet, SSHv2, HTTP, HTTPS, TFTP, SFTP, SCP, SNMP v1 / v2 / v3, Traps, LLDP-MED, SSH client, Dual Software Image Support

LEDs, syslong, signal contact, device status indication, port mirroring N to 1, RMON (1,2,3,9), LLDP, SFP management, configuration check dialog, system information, Management Address Conflict Detection, Copper cable test, Port Monitor with Auto-Disable, duplex mismatch detection, snapshot configuration feature, MAC Notification, TCPDump, Link Flap Detection, Port Mirroring 8 to 1, Self-Test on Cold Start, Switch Dump, Overload Detection, Link Speed and Duplex Monitoring, Port Mirroring 1 to 1

Command line interface (CLI), WEB based management, BOOTP / DHCP client with auto configuration, DHCP server per port, DHCP server pools per VLAN, HiDiscovery, Automatic configuration undo (roll-back), text based configuration file, CLI scripting, Telnet, Configuration Fingerprint, Full-featured MIB Support, Context-sensitive help

EtherNet / IP protocol, Modbus TCP profiles, Profinet IO Protocol, IEC 61850-90-4 MMS Server for Switching Data with SCADA

IEEE 1588v2 End-to-End / Peer-to-Peer 1step / 2-step TC / BC / OC, SNTP client / server

MAC based port security, Port-based Access Control with IEEE 802.1x, Radius client, RADIUS VLAN assignment, Guest / unauthenticated VLAN, Restricted management access, Local user accounts / management, different privilege levels, management authentication via RADIUS, configurable password policy, configurable number of login attempts, user account locking, audit trail, HTTPS certificate management, CLI logging, SNMP logging, DoS prevention (e.g. TCP SYN&FIN, UPD source = destination port, TCP fragment), Integrated Authentication Server (IAS), access to management restricted by VLAN, Device Security Indication, Appropriate Use Banner, Password change on first login, Encryption MACsec GCM-AES-256 (Wire-speed HW), IEC 62443-4-2 SL2 Compliance and Cyber Resilience Act (CRA) readiness

xSTP (RSTP, MSTP), ITU G.8032 Ethernet ring protection switching (ERPS), Media Redundancy Protocol (MRP) (IEC62439-2), RSTP 802.1D-2004 (IEC62439-1), RSTP Guards Fast MRP (IEC62439-2), Link Aggregation with LACP (2 LAG), Link backup, Fast MRP, Parallel Redundancy Protocol (PRP) (IEC62439-3), High Availability Seamless Redundancy Protocol (HSR) (IEC62439-3), DLR (Device Level Ring) pending

Independent VLAN Learning, Fast Aging, Static Unicast / Multicast Address Entries, QoS (8 classes), QoS / Port Prioritization (802.1D / p), TOS / DSCP Prioritization, Interface Trust Mode, CoS Queue Management, Flow Control (802.3X), Egress Interface Shaping, Ingress Storm Protection, VLAN (IEEE 802.1Q), VLAN Unaware Mode, Voice VLAN, IGMP Snooping / Querier per VLAN (v1 / v2 / v3), Unknown Multicast Filtering, Multiple VLAN Registration Protocol (MVRP), Multiple MAC Registration Protocol (MMRP), Multiple Registration Protocol (MRP)
