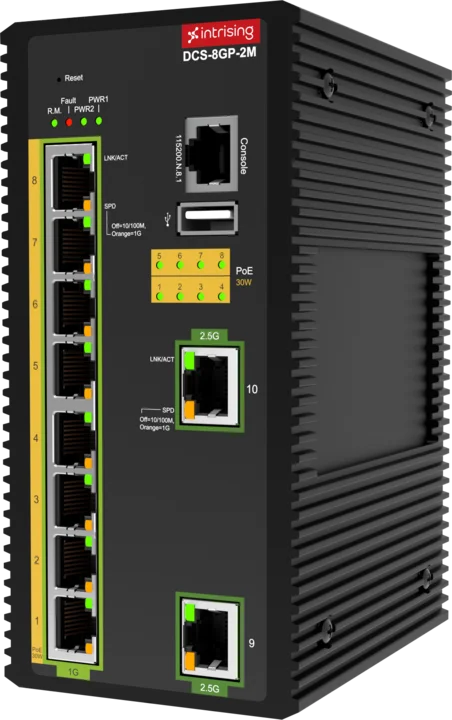

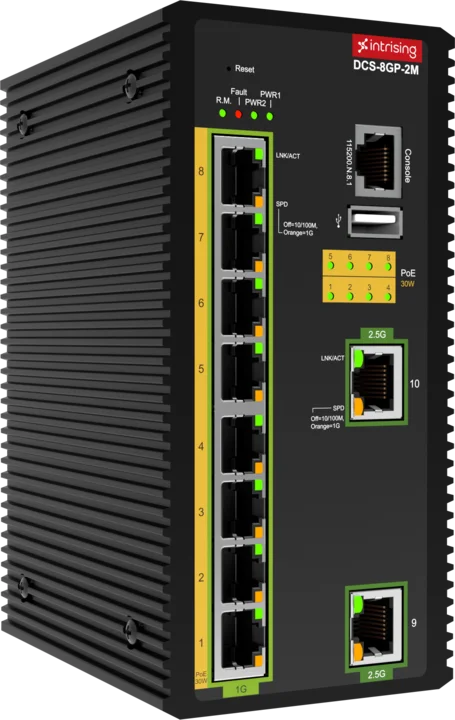

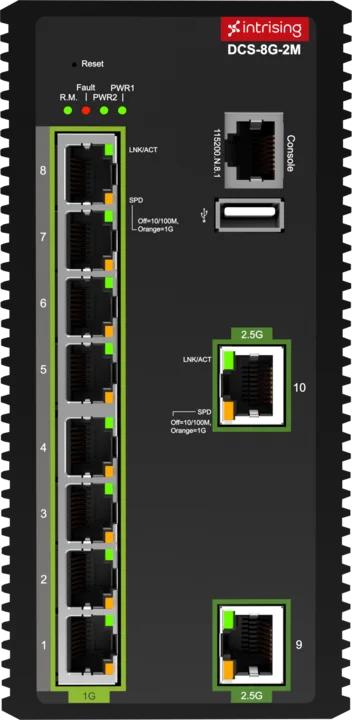

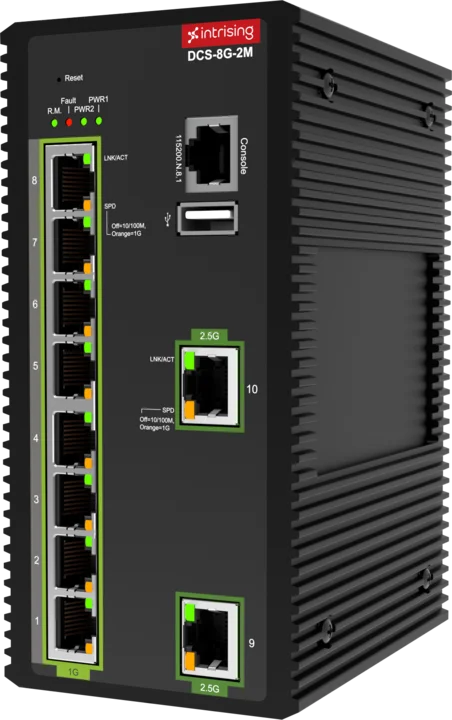

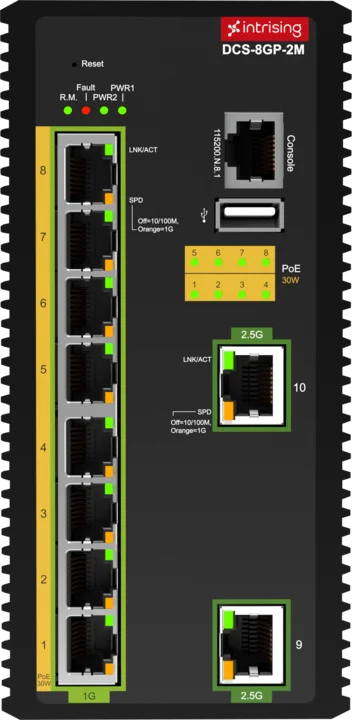

DCS-8G(P)-2M

Industrial 8G+2x2.5G NAT Managed PoE Switch

Redundancy Protocols
- ITU-T G.8032 ERPS Ring (<20ms)
- DRP and MRP (Manager/Client) Redundancy Protocol
Precision Time Protocol (PTP)
- IEEE 1588v2 End-to-End/Peer-to-Peer TC
- 802.1AS-2020 (gPTP) Bridge/End-Station
- Nanosecond-level (ns) Accuracy
- 1 PPS for Synchronize with External Timing Equipment (optional)
Automation Protocols
- EtherNet/IP, Modbus TCP, PROFINET, IEC 60870-5-104
Physical
- Wide Temperature Range (-40 ~ 75ºC)
- Redundant Power Input
- Din-Rail Mountable
- Wall Mount Installation
- IP30 Protection
- Rugged Fan-Less Design

* means optional. Order by request.

Hardware

Product Specifications	10 / 100 / 1000T RJ-45 Copper Ports: 8 with Auto MDI / MDI-X function 1 / 2.5G RJ-45 Copper Ports: 2 with Auto MDI / MDI-X function Total Ports: 10 PoE Enabled Ports: 8 (PoE Model)
Performance	MAC Address: 16K Jumbo Frames: 10KB L2 jumbo frames Switching Fabric: 26 Gbps Trunk Group: 8 VLAN ID Range: 1-4094
Interfaces	LED Indicators: System: PWR1 (Green), PWR2 (Green), R.M. (Green), Fault (Red) RJ-45 Port: LNK/ACT (Green), SPD 10 / 100M (Off), SPD 1G (Orange) Fiber Port: LNK/ACT (Green), SPD 1G (Off), SPD 2.5G (Orange) PoE Model: PoE (Green) RS-232 connector: RJ-45 type USB: Yes Reset Button: Yes Overload Current Protection: Yes Reverse Polarity Protection: Yes Relay Output: 1x Current carry ability 1A@24VDC
Environmental Specifications	Operating Temperature: -20°C ~ 60°C / -4°F ~ 140°F (Standard model) -40°C ~ 75°C / -40°F ~ 167°F (I model) Storage Temperature: -40°C ~ 85°C / -40°F ~ 185°F Operating Humidity: 5% ~ 95% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Physical Specifications	Dimension: 105 x 152 x 74 mm (4.1 x 5.98 x 2.91 in) Weight: 900g (1.98 lbs) Enclosure: Metal case Installation: DIN Rail, Wall Mount Protection Rate: IP30
Power Characteristics	Input Voltage: PoE model: 44-56VDC (Standard model); 12-56VDC (24V model) Non PoE model: 12-56VDC (24V model)
Power over Ethernet Sourcing Characteristics	Enabled PoE Ports: 8 ports up to 30W (PoE models) Max PoE Power Budget: 240W at 48V input (Standard model) 120W at 24V input (24V model)
Regulatory Approvals	EMI&EMS: FCC Class A CE EN55032 Class A CE EN55024 CE EN61000-4-2 CE EN61000-4-3 CE EN61000-4-4 CE EN61000-4-5 CE EN61000-4-6 CE EN61000-4-8 CE EN61000-6-2 CE EN61000-6-4
Certifications	IEC 62443-4-2

Software

Precision Time Protocol	Default Profile: IEEE 1588v2 End-to-End / Peer-to-Peer TC Industrial / Automation Profile: 802.1AS-2020 (gPTP) Bridge / End-Station Nanosecond-level (ns) Accuracy 1 PPS for Synchronize with External Timing Equipment (optional)
Industrial Automation Protocols	EtherNet / IP, Modbus TCP, PROFINET, IEC 60870-5-104
Link Aggregation	Static aggregation and Dynamic aggregation (IEEE 802.3ad LACP) Maximum 8 groups (LAGs) and max 8 member ports per LAG
Broadcast / Multicast / Unicast Storm Suppression	Storm suppression based on port bandwidth percentage & PPS
MAC Address Table	Static & Blackhole MAC address MAC learning limit
VLAN	IEEE 802.1Q Tag VLAN (up to 4094 VLANs) Port-based VLAN (up to 4094 VLANs Protocol-based / IP subnet-based VLAN/ MAC-based VLAN QinQ (double-tag VLAN) VLAN Mapping (VLAN Translation) Voice VLAN MVRP GVRP
Spanning Tree	Support STP / RSTP / MSTP BPDU Guard and Root Guard
Loop Protect	Loopback detection and prevention by physical port or VLAN based
ERPS	Support ITU G.8032 v2 / 2012 for ring protection in less than 20ms for self-heal recovery (single ring enhanced mode) Support various ring / chain topologies Includes basic single ring and enhanced ring Enhanced G.8032 ring configuration with ease & Cover multicast & data packets protection
DRP	Support DRP
MRP	Support Manager / Client Redundancy
DHCP	DHCP Client including option 66 DHCP Snooping DHCP Relay including option 82 DHCP Server MAC based can assign IP address by specific host Port based can assign IP address by specific port
Mirroring	Local port mirroring: Ingress, Egress or both direction per port
Quality of Service	Port-based priority with 802.1p CoS priority override 802.1p CoS priority and IPv4 / IPv6 DSCP priority 8 Hardware queues per port Flexible queue scheduling algorithms including SP, WRR, and SP + WRR, and Weighted Deficit Round Robin (WDRR)
Bandwidth Control (Rate Limit)	Bi-directional Rate limit in percentage (Ingress and Egress) In the ingress direction, packet type (Broadcast / Multicast / Unicast packet) combination rules are allowed Traffic shaping in egress
Flow Control	Supports Flow Control for Fullduplex and Back Pressure for Half-duplex
ACL	Layer 2, Layer 3 (IPv4 / IPv6), Layer 4 packet filtering Traffic classification based on source MAC, destination MAC, source IP, destination IP, TCP / UDP port, and VLAN Bi-directional ACLs (Ingress and Egress) Time-range based ACLs VLAN-based ACL issuing
Discovery Protocol	Link Layer Discovery Protocol (LLDP) and CDP (Cisco Discovery Protocol)
Multicast	IGMP Snooping v1,v2, v3 IGMP router port IGMP Querier v1 / v2 / v3 GMRP MLD Snooping
Security	Hierarchical user management and password protection Supports up to 10 IP addresses to access the switch HTTPS for secure access to the web interface SSH 2.0 for secure shell to command line interface MAC-based authentication 802.1X 802.1X with VLAN assignment 802.1X dynamic access control list (ACL) based on RADIUS attributes RADIUS and TACACS+ Authentication Guest VLAN Supports Port Isolation AAA authentication (PAP, CHAP, MS-CHAP) Dynamic ARP Inspection
SNMP & MIB	SNMP v1 / v2c / v3 and Trap SNMP v1 / v2 providing light security by means of the community strings SNMP v3 providing User-based Security Model (USM) and Transport Security Model (TSM) Remote Monitoring (RMON) alarm, event, and history recording Remote Monitoring (RMON) (RFC2819) Groups 1,2,3,9 RFC 1213 MIB II, RFC 1157 SNMP MIB, RFC 1573 IF MIB, RFC 1757 RMON, Private MIB, Bridge MIB, LLDP MIB
IP Stack for Managed Interface	Both IPv4 and IPv6 stack simultaneously
IPv6 for Managed Interface	Neighbor Discovery (ND) IPv6-Ping, IPv6-Tracert, IPv6-Telnet, and IPv6-TFTP* DHCP Client for IPv6
Configuration Import And Export	Readable text configuration file for system quick installation Support HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP backup and restore config file
Firmware	Upgrading via HTTP / HTTPs / FTP / FTP-SSL / SFTP / TFTP
Management	SNMP v1, v2c, v3 OPEN API document format for Restful API Supports CLI via SSH 2.0, Telnet and Console System log, alarming based on severity WEB UI management through HTTP / HTTPs NTP, SNTP Ping, Tracert
Remote Management	NETCONF/YANG
DHCP for IPv6	DHCPv6 Client including option 66 DHCPv6 Snooping DHCPv6 Relay including option 18 / 37 DHCPv6 Server MAC-based can assign IP address by specific host Port-based can assign IP address by specific port
L3 Routing Function	Static route Software NAT VRRPv2 Unicast Routing: OSPF v1 / v2 Unicast Routing: RIP v1 / v2
Firewall	Port forwarding DMZ Filtering Remote admin DDoS protection

* means optional. Order by request.

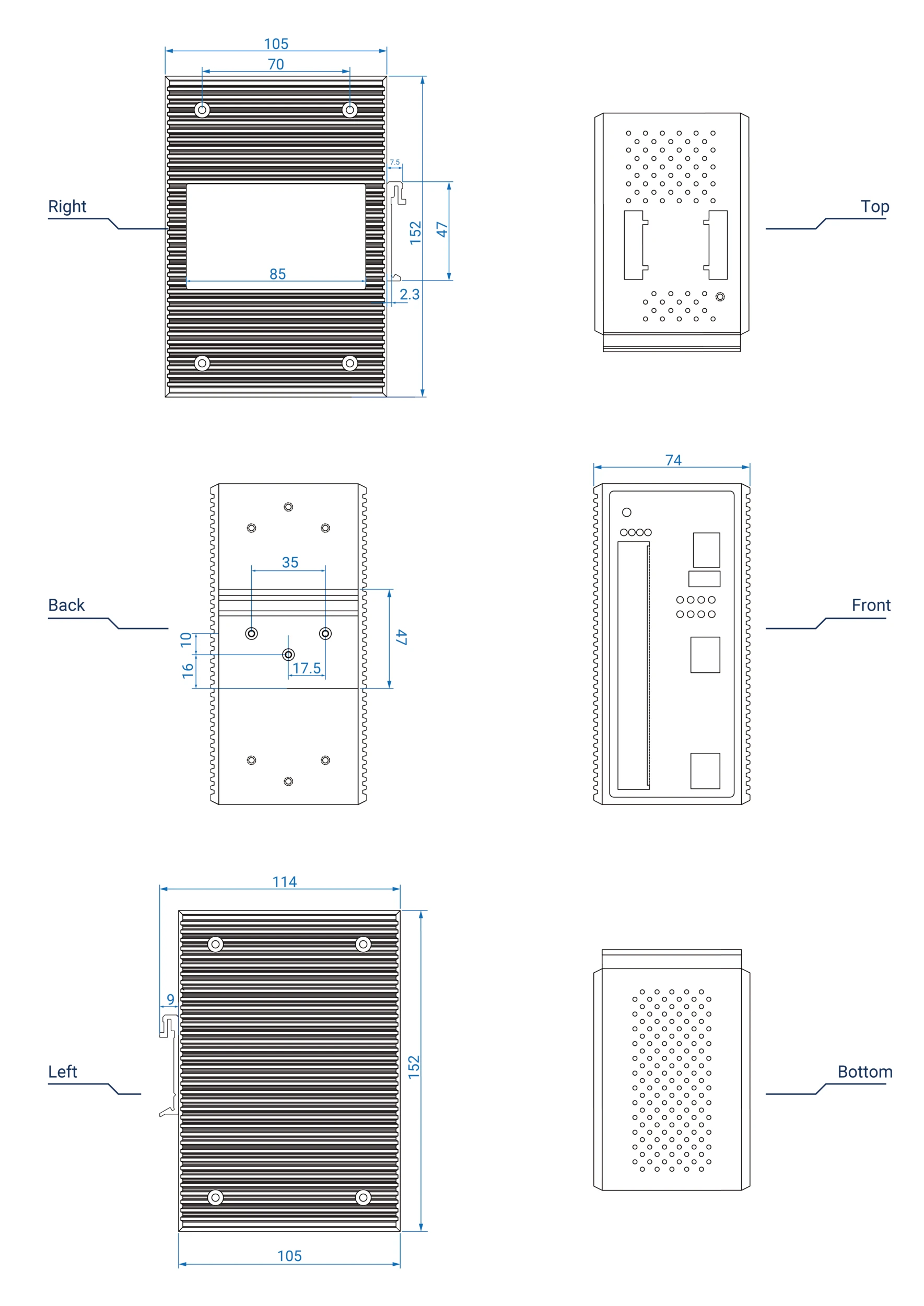

Dimensions

Downloads

Type	Version	Description	Download
Datasheet	Latest	The datasheet of DCS-8G(P)-2M	Download

Order Information

P/N	Model Name	Description
DCS-8GP-2M	DCS-8GP-2M	Dual 44 ~ 56 VDC input -20°C ~ 60°C / -4°F ~ 140°F PoE per-port up to 30 W; PoE total budget 240 W
DCS-8GP-2M-I	DCS-8GP-2M	Dual 44 ~ 56 VDC input -40°C ~ 75°C / -40°F ~ 167°F PoE per-port up to 30 W; PoE total budget 240 W
DCS-8GP-2M-24V	DCS-8GP-2M	Dual 12 ~ 56 VDC input -20°C ~ 60°C / -4°F ~ 140°F PoE per-port up to 30 W; PoE total budget 120 W
DCS-8GP-2M-I-24V	DCS-8GP-2M	Dual 12 ~ 56 VDC input -40°C ~ 75°C / -40°F ~ 167°F PoE per-port up to 30 W; PoE total budget 120 W
DCS-8G-2M-24V	DCS-8G-2M	Dual 12 ~ 56 VDC input -20°C ~ 60°C / -4°F ~ 140°F
DCS-8G-2M-I-24V	DCS-8G-2M	Dual 12 ~ 56 VDC input -40°C ~ 75°C / -40°F ~ 167°F
