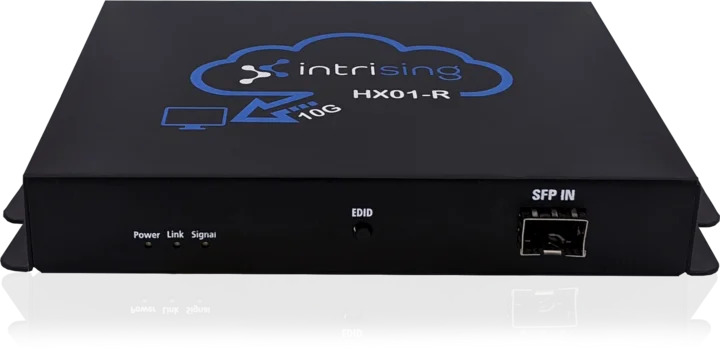

Photo of the product HX01-R

HX01-R

HDMI 2.0 over IP (Fiber) Light Compression Multicast System

  • Supports uncompressed HDMI Deep Color, full 3D & 4K2K@60Hz(4:4:4)
  • HDCP & EDID Bypass
  • CEC support
  • Auto equalization
  • Pure unaltered uncompressed 7.1ch digital HDMI over fiber transmission
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Bi-directional IR path-through
  • Full Duplex RS-232 control up to 115,200 bps through connector
  • Integrated port for LAN/ network device
  • Fiber extension and connection to a 10GbE Ethernet Switch (supported IGMP Snooping)
  • Supports software to configure & update device and to control the switching operation of the various signal types
  • Supports IP pass-through
  • Supports seamless switching
  • Supports multi-mode optic cable up to 300m (OM3) / 400m (OM4)
* means optional. Order by request.

IntrisingTM HX01 4K HDMI 2.0 over IP Video Extender

The HX01 Series HDMI 2.0 over IP (Fiber) Light Compression* Multicast System boosts up your video/audio transmission distance up to 100m(330ft) over multi-mode fiber optic cable in Ultra-HD 4K2K@60Hz(4:4:4) format. Users can readily extend Ultra-HD sources from Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. Besides HX01 Series is HDCP compliant, and supports IR and RS-232 pass-through path.

With broadcasting management software and 10 Gigabit Ethernet network switch (supported IGMP Snooping), HX01 Series is a complete Ultra-HD 4K2K@60Hz(4:4:4) video broadcasting solution for digital signage. It can transmit Ultra-HD 4K2K@60Hz(4:4:4) HDMI video broadcasting over IP network. The broadcasting format can be Point to Point, Point to Many, and Multi-Casting. Multi-casting is based on Managed Gigabit Switch with 802.1Q VLAN function which provides control remotely, so multi video and source allowed and supported.

Up to 4K@60 4:4:4 (4K@60 4:4:4 needs light compression)

Cat-7 cable is recommended for better performance

Package Includes

  • 1x HX01-R
  • 1x IR blaster cable
  • 1x IR receiver
  • 1x User Manual
  • 2x DC 5V
  • 1x Installation software CD

1-Year Limited Warranty

The SELLER warrants the HX01 Series HDMI 2.0 over IP Multicast System with Video support free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse, or any unauthorized modifications including static discharge and power surge. The SELLER offers this warranty for its BUYER with direct transactions only. This warranty is void if the warranty seal on the metal housing is broken.

The unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required to claim a warranty. Customers outside Taiwan are responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30-day warranty and must be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the HX01 Series's features and specifications is subject to change without further notice.

Role of usage

Receiver

POE support

No

HDMI compliance

HDMI Deep Color, full 3D & 4K2K@60Hz (4:4:4)

HDCP compliance

Yes (HDCP 2.2)

Video bandwidth

Single-link 594MHz [18Gbps]

Video support

480i / 480p / 720p / 1080i / 1080p60 / 4K2K@30Hz / 4K2K@60Hz (4:4:4)

HDMI over fiber

No

HDMI over UTP

4K2K@60Hz (4:4:4) 100m (330ft) [CAT 7]

Audio support

Surround sound [up to 7.1ch] or stereo audio

Equalization

Auto

Input TMDS signal

1.2 Volts [peak-to-peak]

Input DDC signal

5 Volts [peak-to-peak, TTL]

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

PCB stack-up

6-layer board [impedance control — differential 100Ω; single 50Ω]

IR pass-thru

Bi-directional

RS-232 support

Yes

Input

1x RJ45
1x 3.5mm

Output

1x HDMI
1x 3.5mm

In/ Out

1x RS-232
1x RJ-45 (Ethernet)

HDMI source control

Controllable via IR pass-through from RX to TX with IR extenders

HDMI connector

Type A [19-pin female]

RJ-45 connector

WE / SS 8P8C

3.5mm connector

IR receiver / IR blaster

Housing

Metal enclosure

Dimensions [L x W x H]

410 x 368 x 393mm

Weight

2078g [4.6lbs]

Fixedness

Wall-mounting case with screws

Power supply

5V 4A

Power consumption

Max 17W

Operation temperature

0 ~ 40°C [32 ~ 104°F]

Storage temperature

-20 ~ 60°C [-4 ~ 140°F]

Relative humidity

20 ~ 90% RH [no condensation]

* means optional. Order by request.
