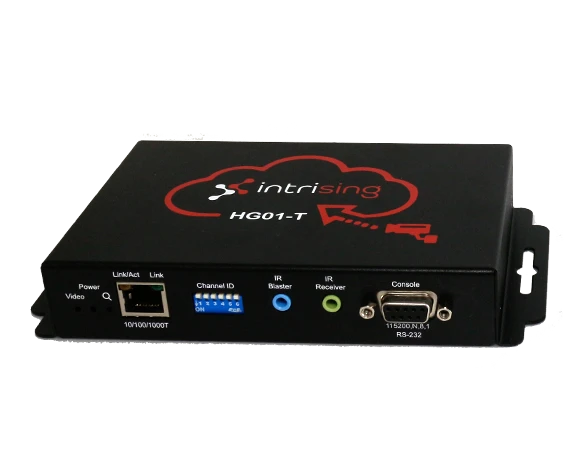

Photo of the product HG01-T

HG01-T

4K HDMI 2.0 over IP Video Transmitter

  • Supports HDMI input up to 4K2K@60Hz, 4:4:4 8 bits
  • Supports HDMI output up to 4K2K@30Hz RGB
  • Supports High Dynamic Range (HDR)
  • HDMI 2.0a compliant
  • HDCP 2.2 compliant
  • Flexible and scalable UHD Video Broadcasting by Gigabit Ethernet LAN/Switch
  • One to one, one to many & multicasting broadcasting architecture
  • Each transmitter can be theoretically multicast up to an unlimited number of displays in video wall applications or unlimited displays in multicast applications
  • Supports full frequency IR signal from 20KHz to 60KHz
  • Bi-directional IR path
  • Full Duplex RS-232 control up to 115,200 bps through connector
  • Up to 1,023 Groups Multicasting
  • Easy Dip Switch matching for multi-casting group configuration
  • Latency: 1080P60: 23ms
  • Supports Video Wall function
  • Supports 180 and 270 clockwise image rotation
  • Supports USB2.0
  • Wall mounting housing design for easy and robust installation
* means optional. Order by request.

IntrisingTM HG01 4K HDMI 2.0 over IP Video Extender

The HG01 Series 4K HDMI 2.0 over IP Multicast System with Video support boosts up your video/audio transmission distance up to 120m(396ft) in UHD 4K2K format. With cost effective Ethernet cable, users can readily extend UHD sources from DVD players, Blu-ray Disc player, PS3, PC, and any other HDMI sources broadcasting to distant display monitors including HDMI or DVI enabled TV sets or LCD PC monitors. In addition, HG01 Series is HDCP compliant, and supports IR and RS-232 pass-through path.

With broadcasting management software and Gigabit Ethernet network switch (supporting IGMP), HG01 Series is a complete UHD video broadcasting solution for digital signage. It can transmit Full HD 4K2K60 HDMI video broadcasting over IP network. The broadcasting format can be Point to Point, Point to Many, and Multi-Casting. Multi-casting is based on Managed Gigabit Switch with 802.1Q VLAN function which provides control remotely and so multi video sources are allowed and supported.

Package Includes

  • 1x HG01-T
  • 1x IR blaster cable
  • 1x User Manual

1-Year Limited Warranty

The SELLER warrants the HG01 Series HDMI 2.0 over IP Multicast System with Video support free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse, or any unauthorized modifications including static discharge and power surge. The SELLER offers this warranty for its BUYER with direct transactions only. This warranty is void if the warranty seal on the metal housing is broken.

The unit that fails under conditions other than those covered will be repaired at the current price of parts and labor in effect at the time of repair. Such repairs are warranted for 90 days from the day of reshipment to the BUYER. If the unit is delivered by mail, customers agree to insure the unit or assume the risk of loss or damage in transit. Under no circumstances will a unit be accepted without a return authorization number.

The warranty is in lieu of all other warranties expressed or implied, including without limitations, any other implied warranty or fitness or merchantability for any particular purpose, all of which are expressly disclaimed. Proof of sale may be required to claim a warranty. Customers outside Taiwan are responsible for shipping charges to and from the SELLER. Cables and power adapters are limited to a 30-day warranty and must be free from any markings, scratches, and neatly coiled.

The content of this manual has been carefully checked and is believed to be accurate. However, The SELLER assumes no responsibility for any inaccuracies that may be contained in this manual. The SELLER will NOT be liable for direct, indirect, incidental, special, or consequential damages resulting from any defect or omission in this manual, even if advised of the possibility of such damages. Also, the technical information contained herein regarding the HG01 Series's features and specifications is subject to change without further notice.

Role of usage

Transmitter

POE support

No

HDMI compliance

HDMI

HDCP compliance

Yes

Input Video support

Up to 4K2K@60Hz (4:4:4 8bits)

Output Video support

Up to 4K2K@30Hz (RGB)

Latency

2 frames (33 ms) maximum

HDMI over UTP

Ultra HD (4K2K60)-120m (396ft) [CAT.X]

transmission [24-bit]

Surround sound (up to 7.1ch) or stereo digital audio

Audio support

Surround sound (up to 7.1ch) or stereo digital audio

Input TMDS signal

1.2 Volts [peak-to-peak]

Input DDC signal

5 Volts [peak-to-peak, TTL]

ESD protection

Human body model — ±15kV [air-gap discharge] & ±8kV [contact discharge]

IR pass-thru

Full-duplex bi-directional

RS-232 support

Yes

Input

1x RJ45 + 1x HDMI + 1x 3.5mm

Output

1x HDMI + 2x 3.5mm + 2x USB

In/ Out

1x DIN9

HDMI source control

Controllable via IR pass-through from RX to TX and from TX to RX with IR extenders

IR remote control

Electro-optical characteristics: τ = 25° / Carrier frequency: 20-60kHz

HDMI connector

Type A [19-pin female]

Min DIN connector

DIN-9

RJ45 connector

WE / SS 8P8C with 2 LED indicators

3.5mm connector

IR blaster & IR receiver

Housing

Metal enclosure

Dimensions [L x W x H]

420 x 365 x 300 mm

Weight

786g

Fixedness

Wall-mounting case with screws

* means optional. Order by request.
