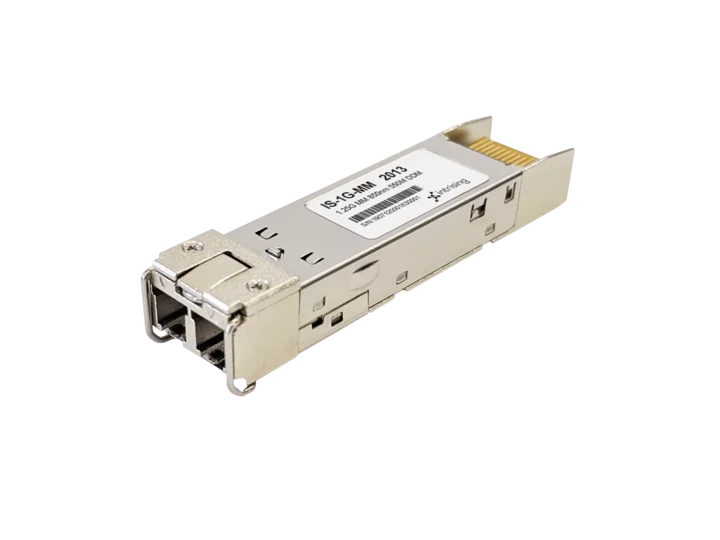

IS-1G-MM
1Gbps Gigabit Ethernet/1000Base-X/Fiber Channel SFP Transceiver
- Distance: 0.5km, 2km, 10km, 30km, 40km, 50km, 60km, 80km, 120km
- Standard Operating Temperature: -10°C~70°C
- Wide Operating Temperature: -40°C~85°C
* means optional. Order by request.
IntrisingTM SFP-1Gbps
Intrising 1G-MM Small Form Factor Pluggable (SFP) transceiver module series is specifically designed for the high performance integrated duplex data link over single-mode or multi-mode optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot-swap ability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online.
Compare Table
| Model |
 |
 |
 |
 |
|---|---|---|---|---|
| Fiber Type | Copper | Single-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber |
| Media Type | CAT5 or Better | - | - | - |
| Distance | 100m | 40km (9/125um SMF)" | 550m (50/125um MMF) 300m (62.5/125um MMF) |
10km 20km |
| Wavelength | - | 1310nm | 850nm VCSEL |
1310nm
1550nm
|
| Temperature | Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
| DDM | - | |||
| Supply Voltage (V) | -0.5 ~ 3.6 | -0.5 ~ 3.6 | -0.5 ~ 3.6 | -0.5 ~ 3.6 |
| Recommended Power Supply Voltage (V) | 3.15 ~ 3.45 | 3.15 ~ 3.45 | 3.15 ~ 3.45 | 3.15 ~ 3.45 |
| Input Voltage (V) | 3.15 ~ 3.45 | - | - | - |
| Operating Data Rate (Gbps) | - | 1.25 | 1.25 | 1.25 |
| Hot Pluggable | ||||
| Optical Interface | RJ45 | Duplex LC Connector | Duplex LC Connector | LC Connector |
| Sensitivity | - | -21 dBm | -17 dBm | -21 dBm |
| Ordering Information | IS-1G-T
0°C ~ 70°C / 32°F ~ 158°F IS-1G-T-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-1G-SM
0°C ~ 70°C / 32°F ~ 158°F IS-1G-SM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-1G-MM
0°C ~ 70°C / 32°F ~ 158°F IS-1G-MM-I
-40°C ~ 85°C / -40°F ~ 185°F
|
IS-1G-BIDI-1310-10
10 km
1310nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-10-I
10 km
1310nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1550-10
10 km
1550nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1550-10-I
10 km
1550nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1310-20
20 km
1310nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-20-I
20 km
1310nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1550-20
20 km
1550nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1550-20-I
20 km
1550nm
-40°C ~ 85°C / -40°F ~ 185°F
|
