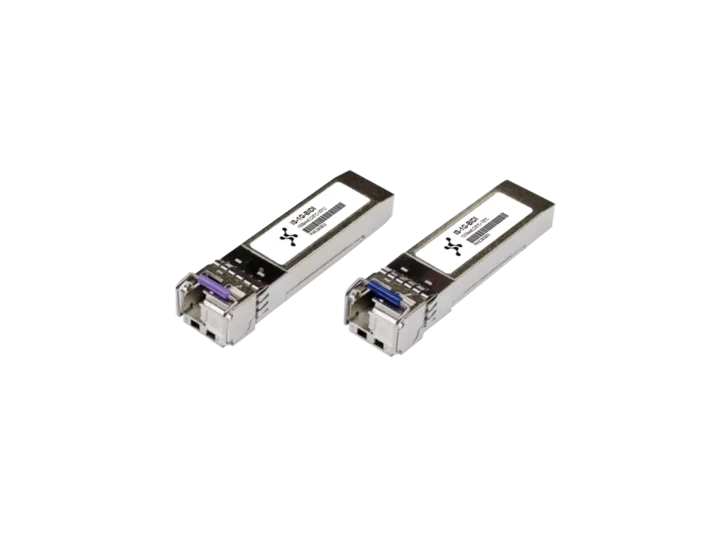

IS-1G-BIDI
1.25Gbps, WDM1310~1550, Single Fiber Bi-directional SFP, ONU Transceiver
- Distance: 0.5km, 2km, 10km, 20km, 40km, 60km, 80km
- Standard Operating Temperature: -10°C~70°C
- Wide Operating Temperature: -40°C~85°C
* means optional. Order by request.
IntrisingTM SFP-BiDi-1.25Gbps
Intrising 1G Bi-directional (BiDi) Small Form Factor Pluggable (SFP) transceiver module series is specifically designed for the high performance integrated duplex data link over a single optical fiber. These transceiver modules are compliant with the SFP Multisource Agreement (MSA). With the hot pluggability, these modules offer an easy way to be installed into SFP MSA compliant ports at any time without the interruption of the host equipments operating online. Intrising 1G BiDi SFP transceiver module series using a long wavelength FP/DFB laser diode and enable data transmission up to 80km on a single-mode (9/125μm) optical fiber. (0.5km on a multi-mode optical fiber)
Compare Table
| Model |
 |
 |
 |
 |
|---|---|---|---|---|
| Fiber Type | Copper | Single-Mode Fiber | Multi-Mode Fiber | Single-Mode Fiber |
| Media Type | CAT5 or Better | - | - | - |
| Distance | 100m | 40km (9/125um SMF)" | 550m (50/125um MMF) 300m (62.5/125um MMF) |
10km 20km |
| Wavelength | - | 1310nm | 850nm VCSEL |
1310nm
1550nm
|
| Temperature | Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
Standard
0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model)
-40°C ~ 85°C / -40°F ~ 185°F
|
| DDM | - | |||
| Supply Voltage (V) | -0.5 ~ 3.6 | -0.5 ~ 3.6 | -0.5 ~ 3.6 | -0.5 ~ 3.6 |
| Recommended Power Supply Voltage (V) | 3.15 ~ 3.45 | 3.15 ~ 3.45 | 3.15 ~ 3.45 | 3.15 ~ 3.45 |
| Input Voltage (V) | 3.15 ~ 3.45 | - | - | - |
| Operating Data Rate (Gbps) | - | 1.25 | 1.25 | 1.25 |
| Hot Pluggable | ||||
| Optical Interface | RJ45 | Duplex LC Connector | Duplex LC Connector | LC Connector |
| Sensitivity | - | -21 dBm | -17 dBm | -21 dBm |

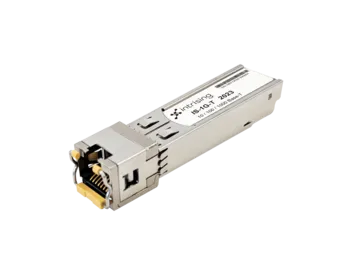

| Ordering Information | IS-1G-T
0°C ~ 70°C / 32°F ~ 158°F IS-1G-T-I
-40°C ~ 85°C / -40°F ~ 185°F
|

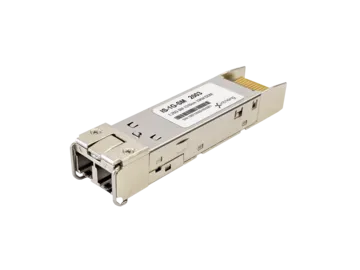

IS-1G-SM
0°C ~ 70°C / 32°F ~ 158°F IS-1G-SM-I
-40°C ~ 85°C / -40°F ~ 185°F
|

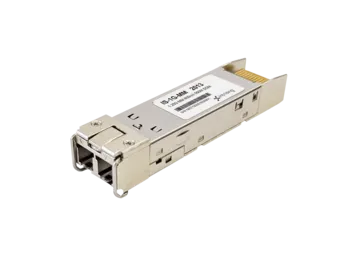

IS-1G-MM
0°C ~ 70°C / 32°F ~ 158°F IS-1G-MM-I
-40°C ~ 85°C / -40°F ~ 185°F
|

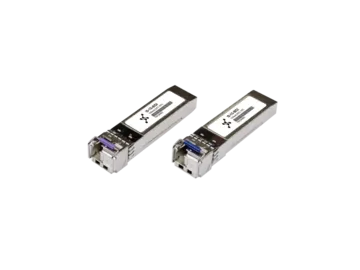

IS-1G-BIDI-1310-10
10 km
1310nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-10-I
10 km
1310nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1550-10
10 km
1550nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1550-10-I
10 km
1550nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1310-20
20 km
1310nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-20-I
20 km
1310nm
-40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1550-20
20 km
1550nm
0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1550-20-I
20 km
1550nm
-40°C ~ 85°C / -40°F ~ 185°F
|
