Accessories SFP-MINI-GBIC

1~1.25 Gbps

Industrial 1~1.25G Fiber SFP Optical Transceiver

Summary

Intrising SFP (MINI-GBIC) series provides a Small Form Factor Pluggable transceiver modules.
This series covers 1.25Gbps for the distance from 100m to 120km with long MTBF, which endures the durability.

Product List

Compare Products

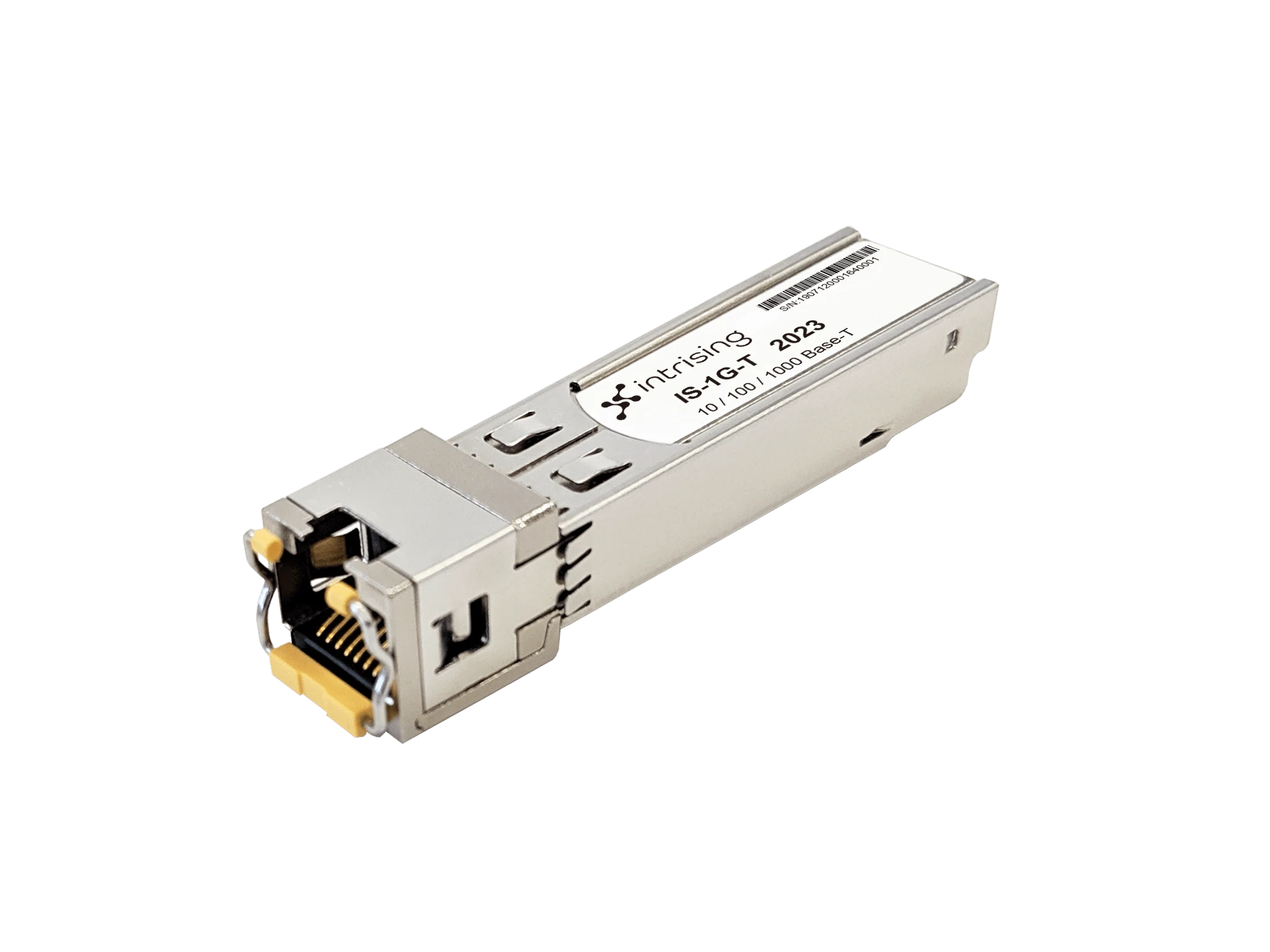

Photo of the product "IS-1G-T"

IS-1G-T

1Gbps, 10/100/1000BASE-T Copper SFP Transceiver

Distance: 100m
Standard Operating Temperature: -10°C~70°C
Wide Operating Temperature: -40°C~85°C

Photo of the product "IS-1G-SM"

IS-1G-SM

1Gbps Gigabit Ethernet/1000Base-X/Fiber Channel SFP Transceiver

Distance: 10km, 20km, 40km
Standard Operating Temperature: -10°C~70°C
Wide Operating Temperature: -40°C~85°C

Photo of the product "IS-1G-MM"

IS-1G-MM

1Gbps Gigabit Ethernet/1000Base-X/Fiber Channel SFP Transceiver

Distance: 550m, 2km
Standard Operating Temperature: -10°C~70°C
Wide Operating Temperature: -40°C~85°C

Photo of the product "IS-1G-BIDI"

IS-1G-BIDI

1.25Gbps, WDM1310~1550, Single Fiber Bi-directional SFP, ONU Transceiver

Distance: 10km, 20km
Standard Operating Temperature: -10°C~70°C
Wide Operating Temperature: -40°C~85°C

Compare Table

Model	IS-1G-T	IS-1G-SM	IS-1G-MM	IS-1G-BIDI
Fiber Type	Copper	Single-Mode Fiber	Multi-Mode Fiber	Single-Mode Fiber
Media Type	CAT5 or Better	-	-	-
Distance	100m	10km, 20km, 40km	550m, 2km	10km, 20km
Wavelength	-	1310nm	850nm 1310nm	1310nm 1490nm 1550nm
Temperature	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F	Standard 0°C ~ 70°C / 32°F ~ 158°F Industrial (-I Model) -40°C ~ 85°C / -40°F ~ 185°F
DDM	-
Supply Voltage (V)	-0.5 ~ 3.6	-0.5 ~ 3.6	-0.5 ~ 3.6	-0.5 ~ 3.6
Recommended Power Supply Voltage (V)	3.15 ~ 3.45	3.15 ~ 3.45	3.15 ~ 3.45	3.15 ~ 3.45
Input Voltage (V)	3.15 ~ 3.45	-	-	-
Operating Data Rate (Gbps)	-	1.25	1.25	1.25
Hot Pluggable
Optical Interface	RJ45	Duplex LC Connector	Duplex LC Connector	LC Connector
Sensitivity	-	-21 dBm	-17 dBm	-21 dBm
Ordering Information	IS-1G-T 0°C ~ 70°C / 32°F ~ 158°F IS-1G-T-I -40°C ~ 85°C / -40°F ~ 185°F	IS-1G-SM-10 10km, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-SM-10-I 10km, -40°C ~ 85°C / -40°F ~ 185°F IS-1G-SM-20 20km, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-SM-20-I 20km, -40°C ~ 85°C / -40°F ~ 185°F IS-1G-SM-40 40km, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-SM-40-I 40km, -40°C ~ 85°C / -40°F ~ 185°F	IS-1G-MM-850-550 550m, 850nm, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-MM-850-550-I 550m, 850nm, -40°C ~ 85°C / -40°F ~ 185°F	IS-1G-BIDI-1310-10 10 km, 1310nm, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-10-I 10 km, 1310nm, -40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1490-10 10 km, 1490nm, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1490-10-I 10 km, 1490nm, -40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1310-20 20 km, 1310nm, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1310-20-I 20 km, 1310nm, -40°C ~ 85°C / -40°F ~ 185°F IS-1G-BIDI-1490-20 20 km, 1490nm, 0°C ~ 70°C / 32°F ~ 158°F IS-1G-BIDI-1490-20-I 20 km, 1490nm, -40°C ~ 85°C / -40°F ~ 185°F
